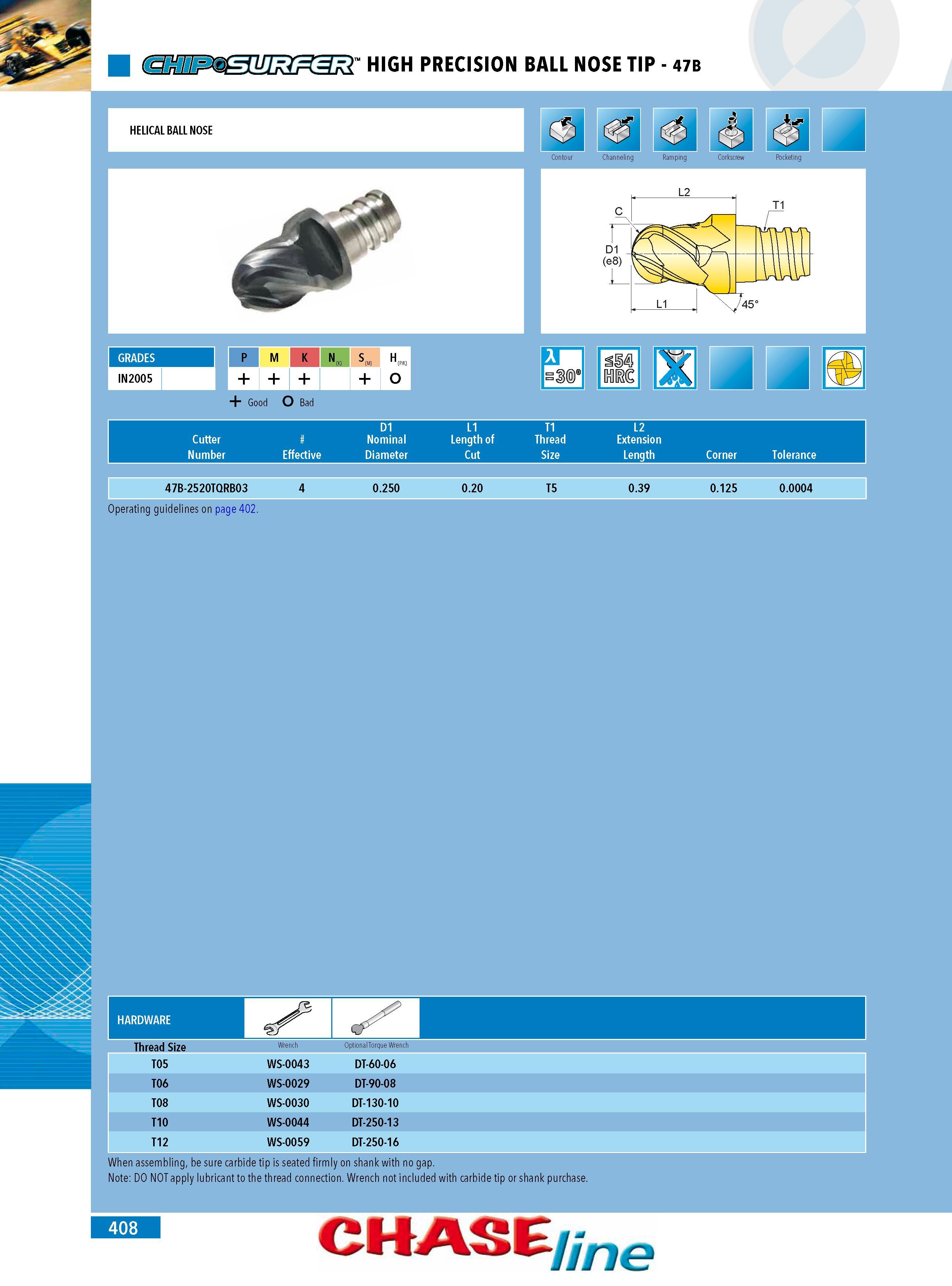

HIGH PRECISION BALL NOSE TIP - 47B HELICAL BALL NOSE IN2005 P M K N( S (M) H (P K) o + Good o Bad D1 L1 T1 L2 Cutter Nominal Length of Thread Extension Number Effective Diameter Cut Size Length Corner Tolerance 47B-2520TQRB03 4 0.250 0.20 T5 0.39 0.125 0.0004 Operating guidelines on page 402. HARDWARE PH Thread Size Wrench Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 GRADES When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. 408 CHASE;(ne
