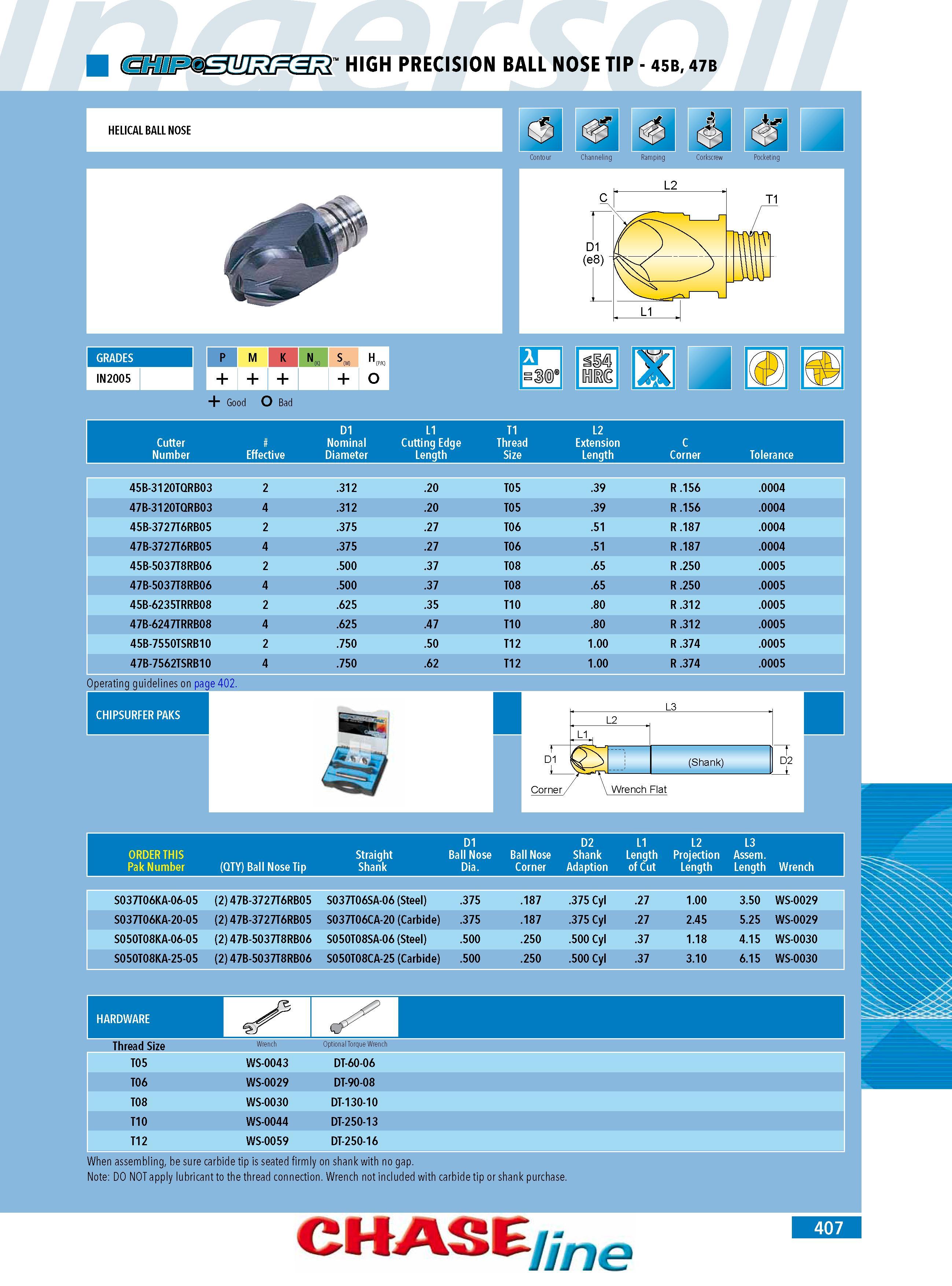

405 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.407

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 407 0405 Lab2u

IN2005 lp M K N S M) u (P K) o + Good O Bad D1 L1 T1 L2 Cutter Nominal Cutting Edge Thread Extension C Number Effective Diameter Length Size Length Corner Tolerance GRADES 45B-3120TQRB03 2 .312 .20 T05 .39 R .156 .0004 47B-3120TQRB03 4 .312 .20 T05 .39 R .156 .0004 45B-3727T6RB05 2 .375 .27 T06 .51 R .187 .0004 47B-3727T6RB05 4 .375 .27 T06 .51 R .187 .0004 45B-5037T8RB06 2 .500 .37 T08 .65 R .250 .0005 47B-5037T8RB06 4 .500 .37 T08 .65 R .250 .0005 45B-6235TRRB08 2 .625 .35 T10 .80 R .312 .0005 47B-6247TRRB08 4 .625 .47 T10 .80 R .312 .0005 45B-7550TSRB10 2 .750 .50 T12 1.00 R .374 .0005 47B-7562TSRB10 4 .750 .62 T12 1.00 R .374 .0005 Operating guidelines on page 402 D1 D2 L1 L2 L3 ORDER THIS Straight Ball Nose Ball Nose Shank Length Projection Assem. Pak Number (QTY) Ball Nose Tip Shank Dia. Corner Adaption of Cut Length Length Wrench S037T06KA-06-05 (2) 47B-3727T6RB05 S037T06SA-06 (Steel) .375 .187 .375 Cyl .27 1.00 3.50 WS-0029 S037T06KA-20-05 (2) 47B-3727T6RB05 S037T06CA-20 (Carbide) .375 .187 .375 Cyl .27 2.45 5.25 WS-0029 S050T08KA-06-05 (2) 47B-5037T8RB06 S050T08SA-06 (Steel) .500 .250 .500 Cyl .37 1.18 4.15 WS-0030 S050T08KA-25-05 (2) 47B-5037T8RB06 S050T08CA-25 (Carbide) .500 .250 .500 Cyl .37 3.10 6.15 WS-0030 Thread Size Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 T12 WS-0059 DT-250-16 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE ne 407
