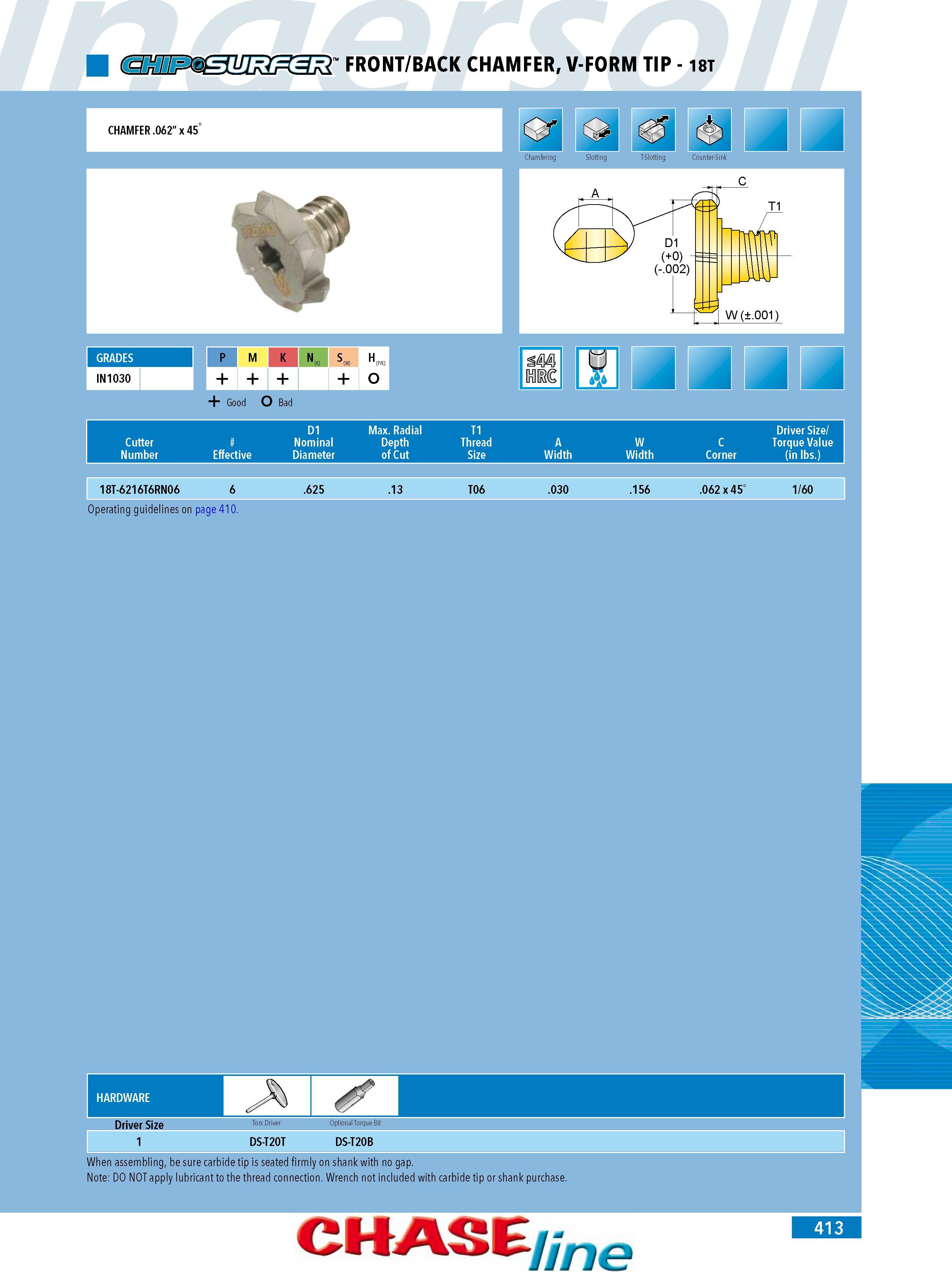

FRONT BACK CHAMFER V-FORM TIP - 18T CHAMFER .062" x 45 IN1030 lp M K N S M) u (P K) o + Good o Bad D1 Max. Radial T1 Driver Size Cutter Nominal Depth Thread A W C Torque Value Number Effective Diameter of Cut Size Width Width Corner (in lbs.) 18T-6216T6RN06 6 .625 .13 T06 .030 .156 .062 x 45 1 60 Operating guidelines on page 410. HARDWARE 1 K Driver Size Torx Driver Optional Torque Bit 1 DS-T20T DS-T20B When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE me GRADES 413
