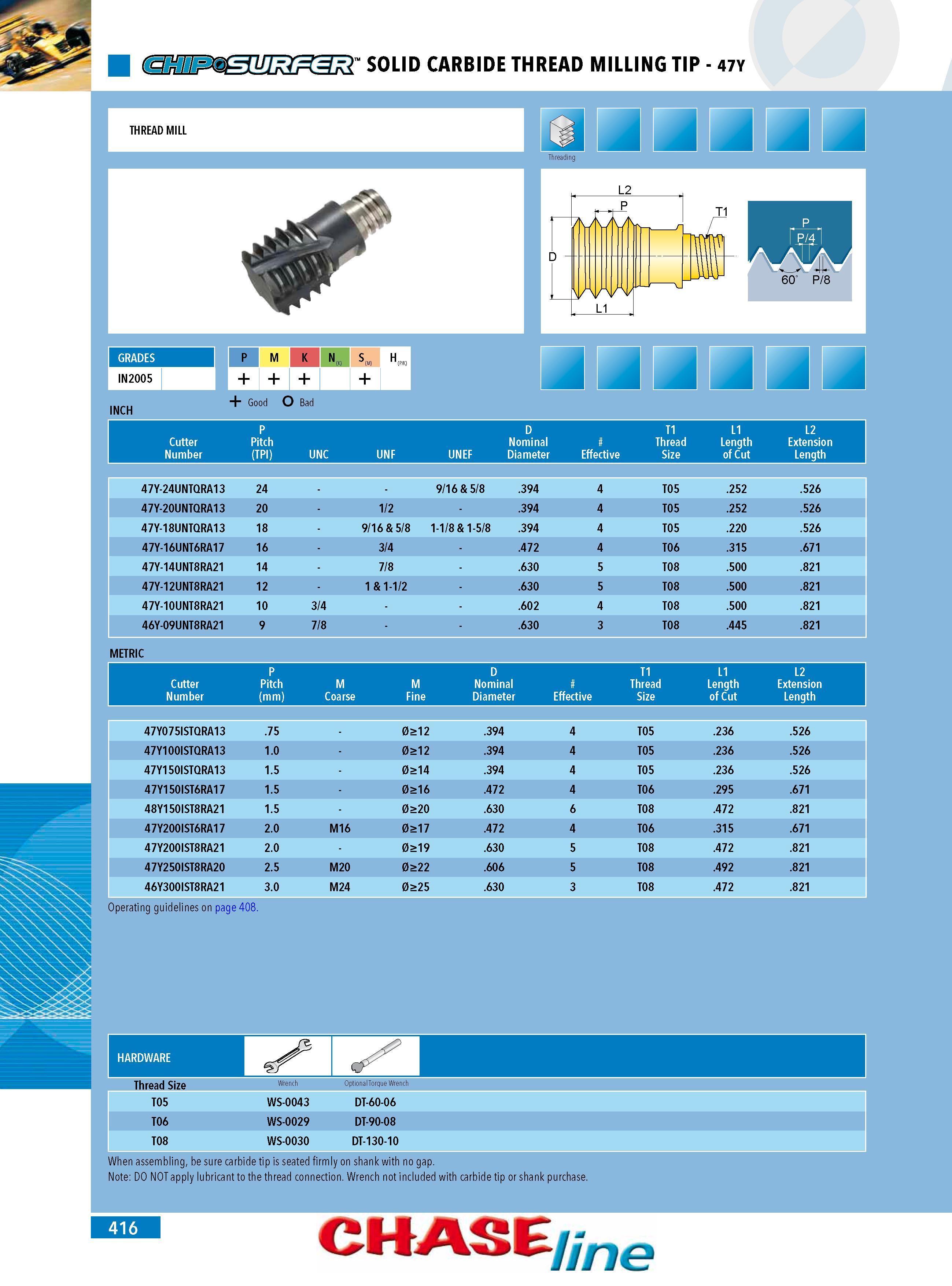

SOLID CARBIDE THREAD MILLING TIP - 47Y THREAD MILL Threading L2 A V VA MAI T1 IN2005 P M K N(K) S (M) H (P K) INCH + Good o Bad Cutter Number P Pitch (TPI) UNC UNF UNEF D Nominal Diameter Effective T1 Thread Size L1 Length of Cut L2 Extension Length 47Y-24UNTQRA13 24 9 16 & 5 8 .394 4 T05 .252 .526 47Y-20UNTQRA13 20 1 2 .394 4 T05 .252 .526 47Y-18UNTQRA13 18 9 16 & 5 8 1-1 8 & 1-5 8 .394 4 T05 .220 .526 47Y-16UNT6RA17 16 3 4 .472 4 T06 .315 .671 47Y-14UNT8RA21 14 7 8 .630 5 T08 .500 .821 47Y-12UNT8RA21 12 1 & 1-1 2 .630 5 T08 .500 .821 47Y-10UNT8RA21 10 3 4 .602 4 T08 .500 .821 46Y-09UNT8RA21 9 7 8 .630 3 T08 .445 .821 METRIC Operating guidelines on page 408. When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE P D T1 L1 L2 Cutter Pitch M M Nominal Thread Length Extension Number (mm) Coarse Fine Diameter Effective Size of Cut Length 47Y075ISTQRA13 .75 012 .394 4 T05 .236 .526 47Y100ISTQRA13 1.0 012 .394 4 T05 .236 .526 47Y150ISTQRA13 1.5 014 .394 4 T05 .236 .526 47Y150IST6RA17 1.5 016 .472 4 T06 .295 .671 48Y150IST8RA21 1.5 020 .630 6 T08 .472 .821 47Y200IST6RA17 2.0 M16 017 .472 4 T06 .315 .671 47Y200IST8RA21 2.0 019 .630 5 T08 .472 .821 47Y250IST8RA20 2.5 M20 022 .606 5 T08 .492 .821 46Y300IST8RA21 3.0 M24 025 .630 3 T08 .472 .821 Thread Size Wrench Optional Torque Wrench T05 WS-0043 DT-60-06 T06 WS-0029 DT-90-08 T08 WS-0030 DT-130-10 GRADES 416
