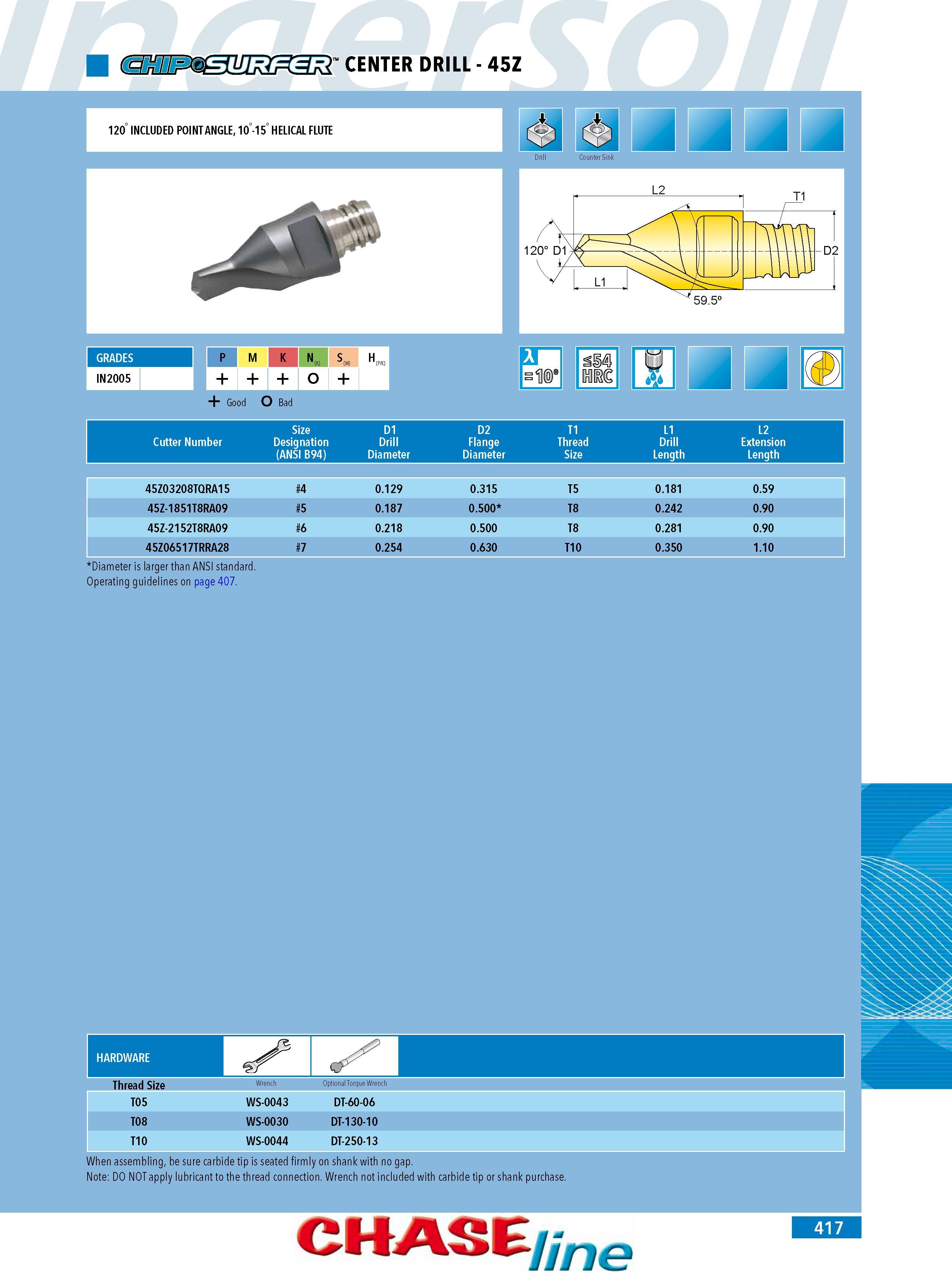

415 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.417

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 417 0415 Lab2u

CENTER DRILL - 45Z 120 INCLUDED POINT ANGLE 10-15 HELICAL FLUTE IN2005 P M K N( S (M) H (P K) + o Good O Bad Size D1 D2 T1 L1 L2 Cutter Number Designation Drill Flange Thread Drill Extension (ANSI B94) Diameter Diameter Size Length Length 45Z03208TQRA15 4 0.129 0.315 T5 0.181 0.59 45Z-1851T8RA09 5 0.187 0.500 T8 0.242 0.90 45Z-2152T8RA09 6 0.218 0.500 T8 0.281 0.90 45Z06517TRRA28 7 0.254 0.630 T10 0.350 1.10 Diameter is larger than ANSI standard. Operating guidelines on page 407. Thread Size Wrench Optional Torque Wrench T05 WS-0043 DT-60-06 T08 WS-0030 DT-130-10 T10 WS-0044 DT-250-13 When assembling be sure carbide tip is seated firmly on shank with no gap. Note: DO NOT apply lubricant to the thread connection. Wrench not included with carbide tip or shank purchase. CHASE me GRADES
