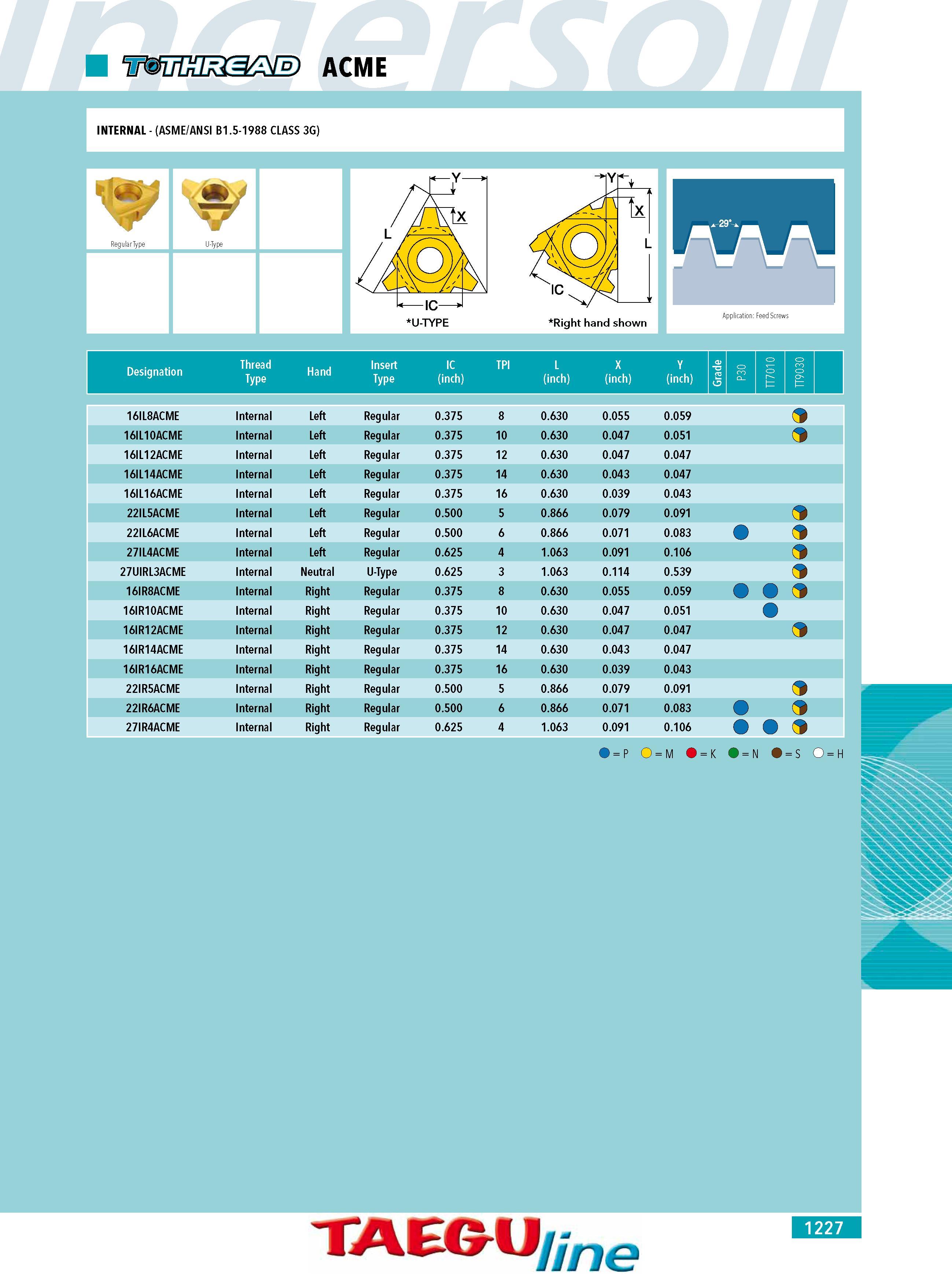

acme INTERNAL - (ASME ANSI B1.5-1988 CLASS 3G) 1 Right hand shown Application: Feed Screws 16IL8ACME Internal Left Regular 0.375 8 0.630 0.055 0.059 16IL10ACME Internal Left Regular 0.375 10 0.630 0.047 0.051 16IL12ACME Internal Left Regular 0.375 12 0.630 0.047 0.047 16IL14ACME Internal Left Regular 0.375 14 0.630 0.043 0.047 16IL16ACME Internal Left Regular 0.375 16 0.630 0.039 0.043 22IL5ACME Internal Left Regular 0.500 5 0.866 0.079 0.091 22IL6ACME Internal Left Regular 0.500 6 0.866 0.071 0.083 27IL4ACME Internal Left Regular 0.625 4 1.063 0.091 0.106 27UIRL3ACME Internal Neutral U-Type 0.625 3 1.063 0.114 0.539 o 16IR8ACME Internal Right Regular 0.375 8 0.630 0.055 0.059 o 16IR10ACME Internal Right Regular 0.375 10 0.630 0.047 0.051 16IR12ACME Internal Right Regular 0.375 12 0.630 0.047 0.047 16IR14ACME Internal Right Regular 0.375 14 0.630 0.043 0.047 16IR16ACME Internal Right Regular 0.375 16 0.630 0.039 0.043 22IR5ACME Internal Right Regular 0.500 5 0.866 0.079 0.091 22IR6ACME Internal Right Regular 0.500 6 0.866 0.071 0.083 27IR4ACME Internal Right Regular 0.625 4 1.063 0.091 0.106 P N S O H TAEG-1l 7e
