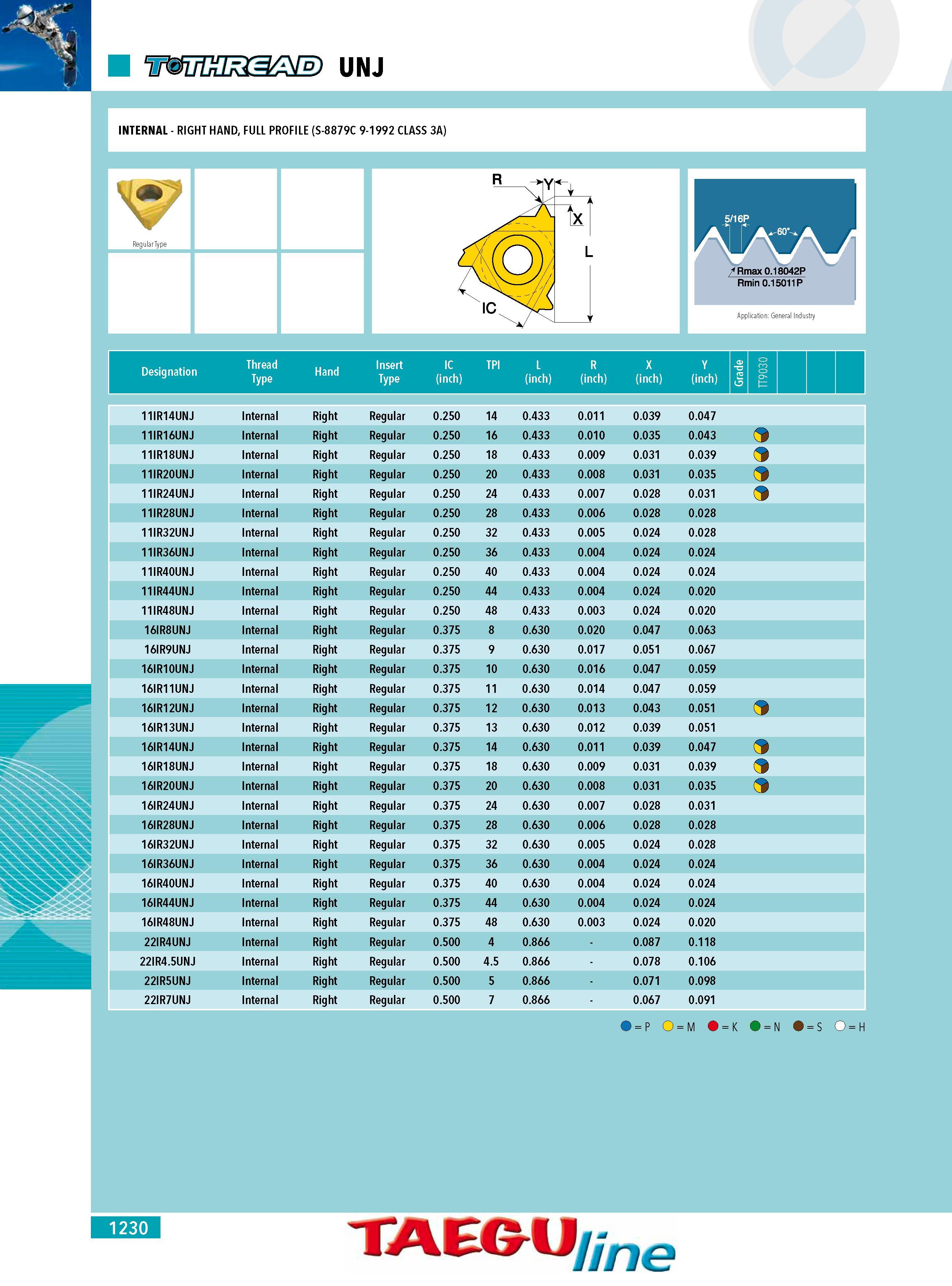

UNJ INTERNAL - RIGHT HAND FULL PROFILE (S-8879C 9-1992 CLASS 3A) jular Type Designation Thread Type Hand Insert Type IC (inch) TPI L (inch) R (inch) X (inch) Y -g (inch) J O CO 1 11IR14UNJ Internal Right Regular 0.250 14 0.433 0.011 0.039 0.047 11IR16UNJ Internal Right Regular 0.250 16 0.433 0.010 0.035 0.043 11IR18UNJ Internal Right Regular 0.250 18 0.433 0.009 0.031 0.039 11IR20UNJ Internal Right Regular 0.250 20 0.433 0.008 0.031 0.035 11IR24UNJ Internal Right Regular 0.250 24 0.433 0.007 0.028 0.031 11IR28UNJ Internal Right Regular 0.250 28 0.433 0.006 0.028 0.028 11IR32UNJ Internal Right Regular 0.250 32 0.433 0.005 0.024 0.028 11IR36UNJ Internal Right Regular 0.250 36 0.433 0.004 0.024 0.024 11IR40UNJ Internal Right Regular 0.250 40 0.433 0.004 0.024 0.024 11IR44UNJ Internal Right Regular 0.250 44 0.433 0.004 0.024 0.020 11IR48UNJ Internal Right Regular 0.250 48 0.433 0.003 0.024 0.020 16IR8UNJ Internal Right Regular 0.375 8 0.630 0.020 0.047 0.063 16IR9UNJ Internal Right Regular 0.375 9 0.630 0.017 0.051 0.067 16IR10UNJ Internal Right Regular 0.375 10 0.630 0.016 0.047 0.059 16IR11UNJ Internal Right Regular 0.375 11 0.630 0.014 0.047 0.059 16IR12UNJ Internal Right Regular 0.375 12 0.630 0.013 0.043 0.051 o 16IR13UNJ Internal Right Regular 0.375 13 0.630 0.012 0.039 0.051 16IR14UNJ Internal Right Regular 0.375 14 0.630 0.011 0.039 0.047 16IR18UNJ Internal Right Regular 0.375 18 0.630 0.009 0.031 0.039 16IR20UNJ Internal Right Regular 0.375 20 0.630 0.008 0.031 0.035 16IR24UNJ Internal Right Regular 0.375 24 0.630 0.007 0.028 0.031 16IR28UNJ Internal Right Regular 0.375 28 0.630 0.006 0.028 0.028 16IR32UNJ Internal Right Regular 0.375 32 0.630 0.005 0.024 0.028 16IR36UNJ Internal Right Regular 0.375 36 0.630 0.004 0.024 0.024 16IR40UNJ Internal Right Regular 0.375 40 0.630 0.004 0.024 0.024 16IR44UNJ Internal Right Regular 0.375 44 0.630 0.004 0.024 0.024 16IR48UNJ Internal Right Regular 0.375 48 0.630 0.003 0.024 0.020 22IR4UNJ Internal Right Regular 0.500 4 0.866 0.087 0.118 22IR4.5UNJ Internal Right Regular 0.500 4.5 0.866 0.078 0.106 22IR5UNJ Internal Right Regular 0.500 5 0.866 0.071 0.098 22IR7UNJ Internal Right Regular 0.500 7 0.866 0.067 0.091 O P O M k O N O S O H 1230 TAEGU line
