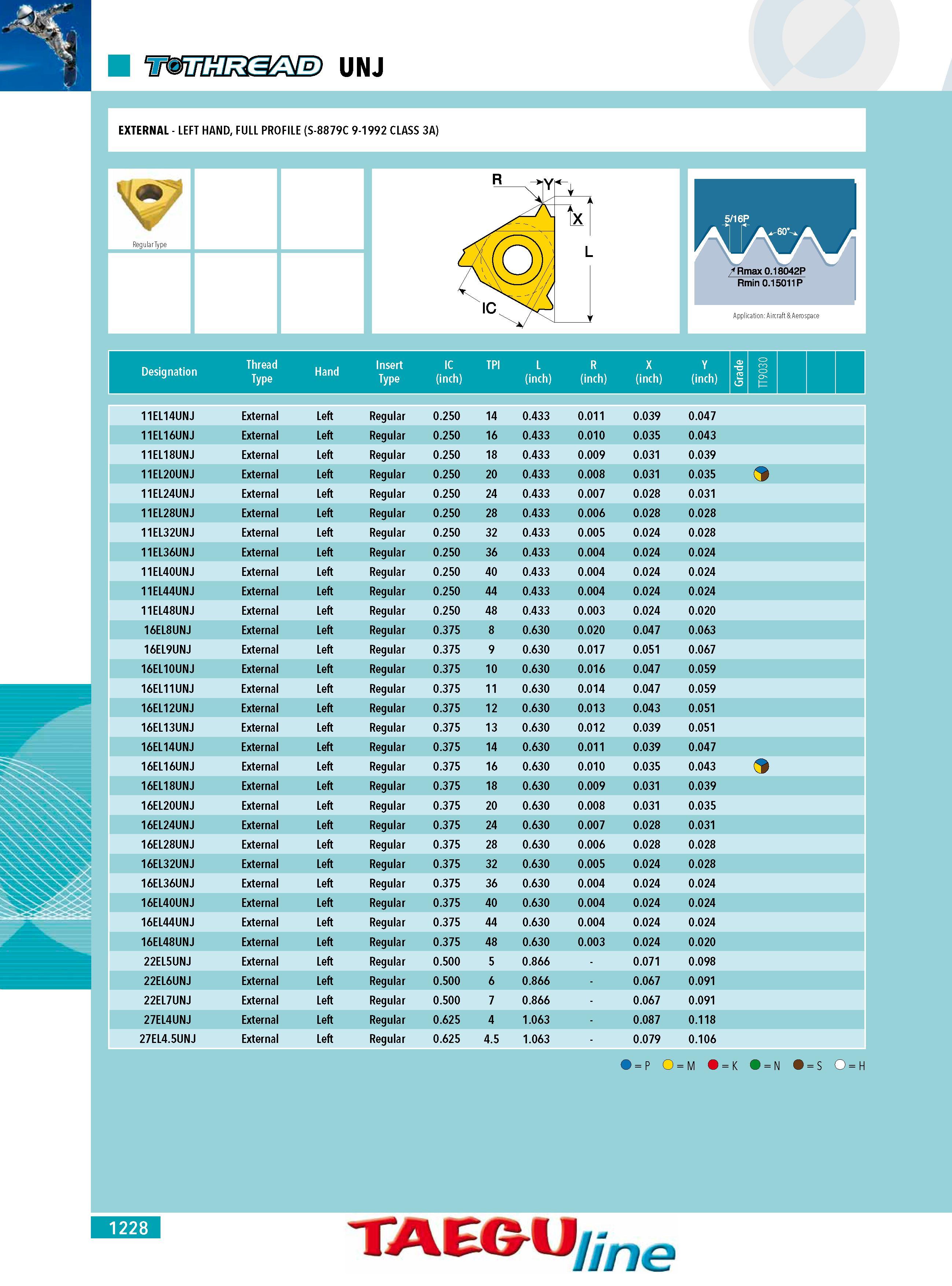

UNJ Designation Thread Type Hand Insert Type IC (inch) TPI L (inch) R (inch) X (inch) Y -g (inch) J nm 11EL14UNJ External Left Regular 0.250 14 0.433 0.011 0.039 0.047 11EL16UNJ External Left Regular 0.250 16 0.433 0.010 0.035 0.043 11EL18UNJ External Left Regular 0.250 18 0.433 0.009 0.031 0.039 11EL20UNJ External Left Regular 0.250 20 0.433 0.008 0.031 0.035 11EL24UNJ External Left Regular 0.250 24 0.433 0.007 0.028 0.031 11EL28UNJ External Left Regular 0.250 28 0.433 0.006 0.028 0.028 11EL32UNJ External Left Regular 0.250 32 0.433 0.005 0.024 0.028 11EL36UNJ External Left Regular 0.250 36 0.433 0.004 0.024 0.024 11EL40UNJ External Left Regular 0.250 40 0.433 0.004 0.024 0.024 11EL44UNJ External Left Regular 0.250 44 0.433 0.004 0.024 0.024 11EL48UNJ External Left Regular 0.250 48 0.433 0.003 0.024 0.020 16EL8UNJ External Left Regular 0.375 8 0.630 0.020 0.047 0.063 16EL9UNJ External Left Regular 0.375 9 0.630 0.017 0.051 0.067 16EL10UNJ External Left Regular 0.375 10 0.630 0.016 0.047 0.059 16EL11UNJ External Left Regular 0.375 11 0.630 0.014 0.047 0.059 16EL12UNJ External Left Regular 0.375 12 0.630 0.013 0.043 0.051 16EL13UNJ External Left Regular 0.375 13 0.630 0.012 0.039 0.051 16EL14UNJ External Left Regular 0.375 14 0.630 0.011 0.039 0.047 16EL16UNJ External Left Regular 0.375 16 0.630 0.010 0.035 0.043 16EL18UNJ External Left Regular 0.375 18 0.630 0.009 0.031 0.039 16EL20UNJ External Left Regular 0.375 20 0.630 0.008 0.031 0.035 16EL24UNJ External Left Regular 0.375 24 0.630 0.007 0.028 0.031 16EL28UNJ External Left Regular 0.375 28 0.630 0.006 0.028 0.028 16EL32UNJ External Left Regular 0.375 32 0.630 0.005 0.024 0.028 16EL36UNJ External Left Regular 0.375 36 0.630 0.004 0.024 0.024 16EL40UNJ External Left Regular 0.375 40 0.630 0.004 0.024 0.024 16EL44UNJ External Left Regular 0.375 44 0.630 0.004 0.024 0.024 16EL48UNJ External Left Regular 0.375 48 0.630 0.003 0.024 0.020 22EL5UNJ External Left Regular 0.500 5 0.866 0.071 0.098 22EL6UNJ External Left Regular 0.500 6 0.866 0.067 0.091 22EL7UNJ External Left Regular 0.500 7 0.866 0.067 0.091 27EL4UNJ External Left Regular 0.625 4 1.063 0.087 0.118 27EL4.5UNJ External Left Regular 0.625 4.5 1.063 0.079 0.106 O P o M O K o N O S O H 1228 TAEGU line
