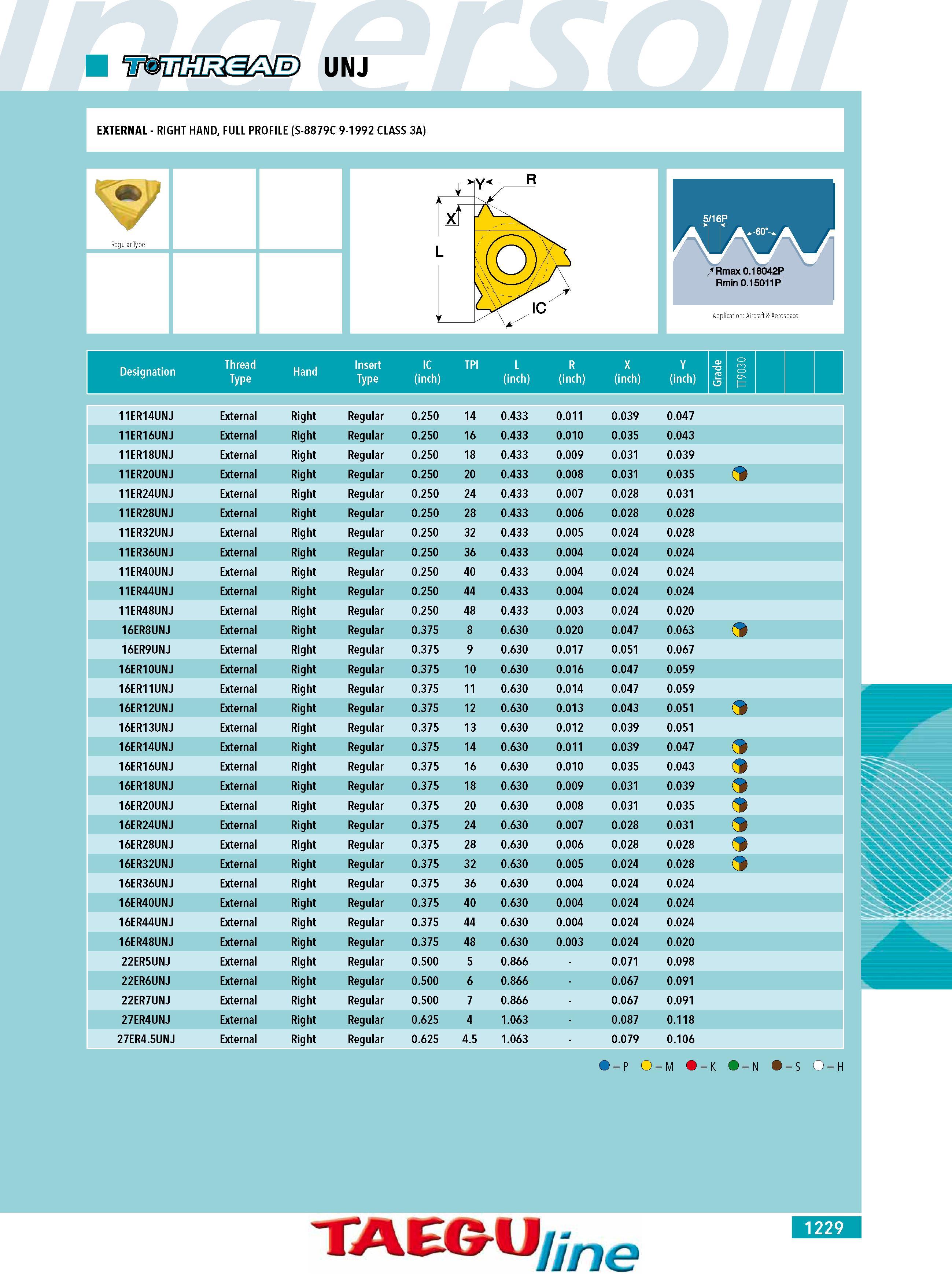

unj EXTERNAL - RIGHT HAND FULL PROFILE (S-8879C 9-1992 CLASS 3A) y Regular Type u Designation 0 A xt L m V L R X Y (inch) (inch) (inch) (inch) 11ER14UNJ External Right Regular 0.250 14 0.433 0.011 0.039 0.047 11ER16UNJ External Right Regular 0.250 16 0.433 0.010 0.035 0.043 11ER18UNJ External Right Regular 0.250 18 0.433 0.009 0.031 0.039 11ER20UNJ External Right Regular 0.250 20 0.433 0.008 0.031 0.035 o 11ER24UNJ External Right Regular 0.250 24 0.433 0.007 0.028 0.031 11ER28UNJ External Right Regular 0.250 28 0.433 0.006 0.028 0.028 11ER32UNJ External Right Regular 0.250 32 0.433 0.005 0.024 0.028 11ER36UNJ External Right Regular 0.250 36 0.433 0.004 0.024 0.024 11ER40UNJ External Right Regular 0.250 40 0.433 0.004 0.024 0.024 11ER44UNJ External Right Regular 0.250 44 0.433 0.004 0.024 0.024 11ER48UNJ External Right Regular 0.250 48 0.433 0.003 0.024 0.020 16ER8UNJ External Right Regular 0.375 8 0.630 0.020 0.047 0.063 16ER9UNJ External Right Regular 0.375 9 0.630 0.017 0.051 0.067 16ER10UNJ External Right Regular 0.375 10 0.630 0.016 0.047 0.059 16ER11UNJ External Right Regular 0.375 11 0.630 0.014 0.047 0.059 16ER12UNJ External Right Regular 0.375 12 0.630 0.013 0.043 0.051 o 16ER13UNJ External Right Regular 0.375 13 0.630 0.012 0.039 0.051 16ER14UNJ External Right Regular 0.375 14 0.630 0.011 0.039 0.047 16ER16UNJ External Right Regular 0.375 16 0.630 0.010 0.035 0.043 16ER18UNJ External Right Regular 0.375 18 0.630 0.009 0.031 0.039 16ER20UNJ External Right Regular 0.375 20 0.630 0.008 0.031 0.035 c 16ER24UNJ External Right Regular 0.375 24 0.630 0.007 0.028 0.031 o 16ER28UNJ External Right Regular 0.375 28 0.630 0.006 0.028 0.028 o 16ER32UNJ External Right Regular 0.375 32 0.630 0.005 0.024 0.028 o 16ER36UNJ External Right Regular 0.375 36 0.630 0.004 0.024 0.024 16ER40UNJ External Right Regular 0.375 40 0.630 0.004 0.024 0.024 16ER44UNJ External Right Regular 0.375 44 0.630 0.004 0.024 0.024 16ER48UNJ External Right Regular 0.375 48 0.630 0.003 0.024 0.020 22ER5UNJ External Right Regular 0.500 5 0.866 0.071 0.098 22ER6UNJ External Right Regular 0.500 6 0.866 0.067 0.091 22ER7UNJ External Right Regular 0.500 7 0.866 0.067 0.091 27ER4UNJ External Right Regular 0.625 4 1.063 0.087 0.118 27ER4.5UNJ External Right Regular 0.625 4.5 1.063 0.079 0.106 O P O M ) K O N ) S O H TAEGU line 1229 Insert Type IC (inch) TPI Hand
