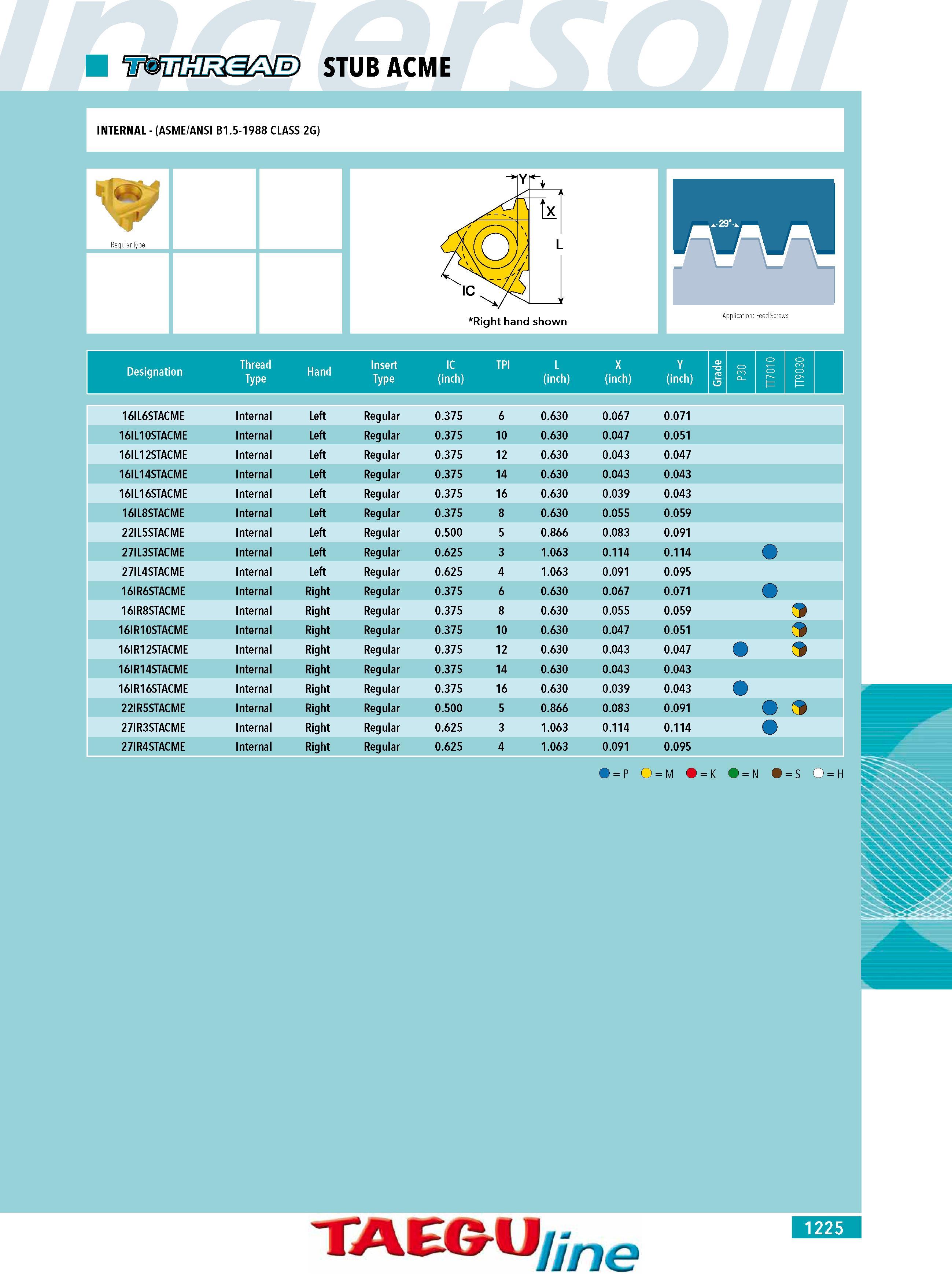

stub acme INTERNAL - (ASME ANSI B1.5-1988 CLASS 2G) Regular Type 1 Right hand shown Application: Feed Screws Designation Thread Type Hand Insert Type IC (inch) TPI L (inch) X (inch) A HI'li g 16IL6STACME Internal Left Regular 0.375 6 0.630 0.067 0.071 16IL10STACME Internal Left Regular 0.375 10 0.630 0.047 0.051 16IL12STACME Internal Left Regular 0.375 12 0.630 0.043 0.047 16IL14STACME Internal Left Regular 0.375 14 0.630 0.043 0.043 16IL16STACME Internal Left Regular 0.375 16 0.630 0.039 0.043 16IL8STACME Internal Left Regular 0.375 8 0.630 0.055 0.059 22IL5STACME Internal Left Regular 0.500 5 0.866 0.083 0.091 27IL3STACME Internal Left Regular 0.625 3 1.063 0.114 0.114 O 27IL4STACME Internal Left Regular 0.625 4 1.063 0.091 0.095 16IR6STACME Internal Right Regular 0.375 6 0.630 0.067 0.071 O 16IR8STACME Internal Right Regular 0.375 8 0.630 0.055 0.059 16IR10STACME Internal Right Regular 0.375 10 0.630 0.047 0.051 16IR12STACME Internal Right Regular 0.375 12 0.630 0.043 0.047 O 16IR14STACME Internal Right Regular 0.375 14 0.630 0.043 0.043 16IR16STACME Internal Right Regular 0.375 16 0.630 0.039 0.043 O 22IR5STACME Internal Right Regular 0.500 5 0.866 0.083 0.091 O 27IR3STACME Internal Right Regular 0.625 3 1.063 0.114 0.114 O 27IR4STACME Internal Right Regular 0.625 4 1.063 0.091 0.095 ) P O M K N ) S O H TAEG-1l 7e
