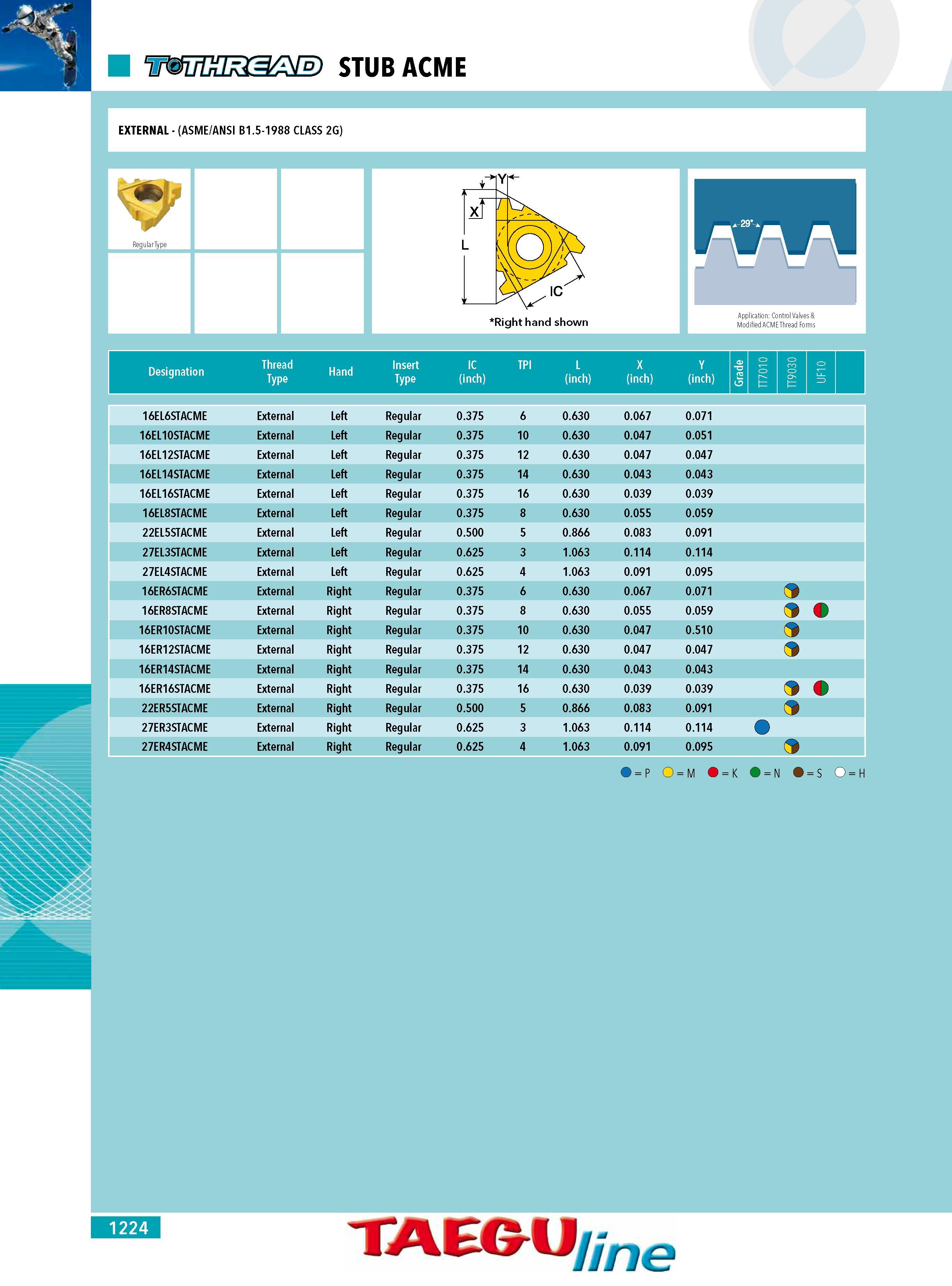

1222 Каталог INGERSOLL 2011 Режущий инструмент и инструментальная оснастка Стр.1224

Каталог INGERSOLL 2011 Инструмент и оснастка Стр. 1224 1222 Lab2u

STUB ACME EXTERNAL - (ASME ANSI B1.5-1988 CLASS 2G) Regular Type n U -99 - . Application: Control Valves & Modified ACME Thread Forms Designation Thread Type Hand Insert Type IC (inch) TPI L (inch) X (inch) Y (inch) J TT9030 OE 16EL6STACME External Left Regular 0.375 6 0.630 0.067 0.071 16EL10STACME External Left Regular 0.375 10 0.630 0.047 0.051 16EL12STACME External Left Regular 0.375 12 0.630 0.047 0.047 16EL14STACME External Left Regular 0.375 14 0.630 0.043 0.043 16EL16STACME External Left Regular 0.375 16 0.630 0.039 0.039 16EL8STACME External Left Regular 0.375 8 0.630 0.055 0.059 22EL5STACME External Left Regular 0.500 5 0.866 0.083 0.091 27EL3STACME External Left Regular 0.625 3 1.063 0.114 0.114 27EL4STACME External Left Regular 0.625 4 1.063 0.091 0.095 16ER6STACME External Right Regular 0.375 6 0.630 0.067 0.071 16ER8STACME External Right Regular 0.375 8 0.630 0.055 0.059 16ER10STACME External Right Regular 0.375 10 0.630 0.047 0.510 16ER12STACME External Right Regular 0.375 12 0.630 0.047 0.047 16ER14STACME External Right Regular 0.375 14 0.630 0.043 0.043 16ER16STACME External Right Regular 0.375 16 0.630 0.039 0.039 9 22ER5STACME External Right Regular 0.500 5 0.866 0.083 0.091 27ER3STACME External Right Regular 0.625 3 1.063 0.114 0.114 O 27ER4STACME External Right Regular 0.625 4 1.063 0.091 0.095 P 1 1 1 1 o S O H 1224 TAE&U me
