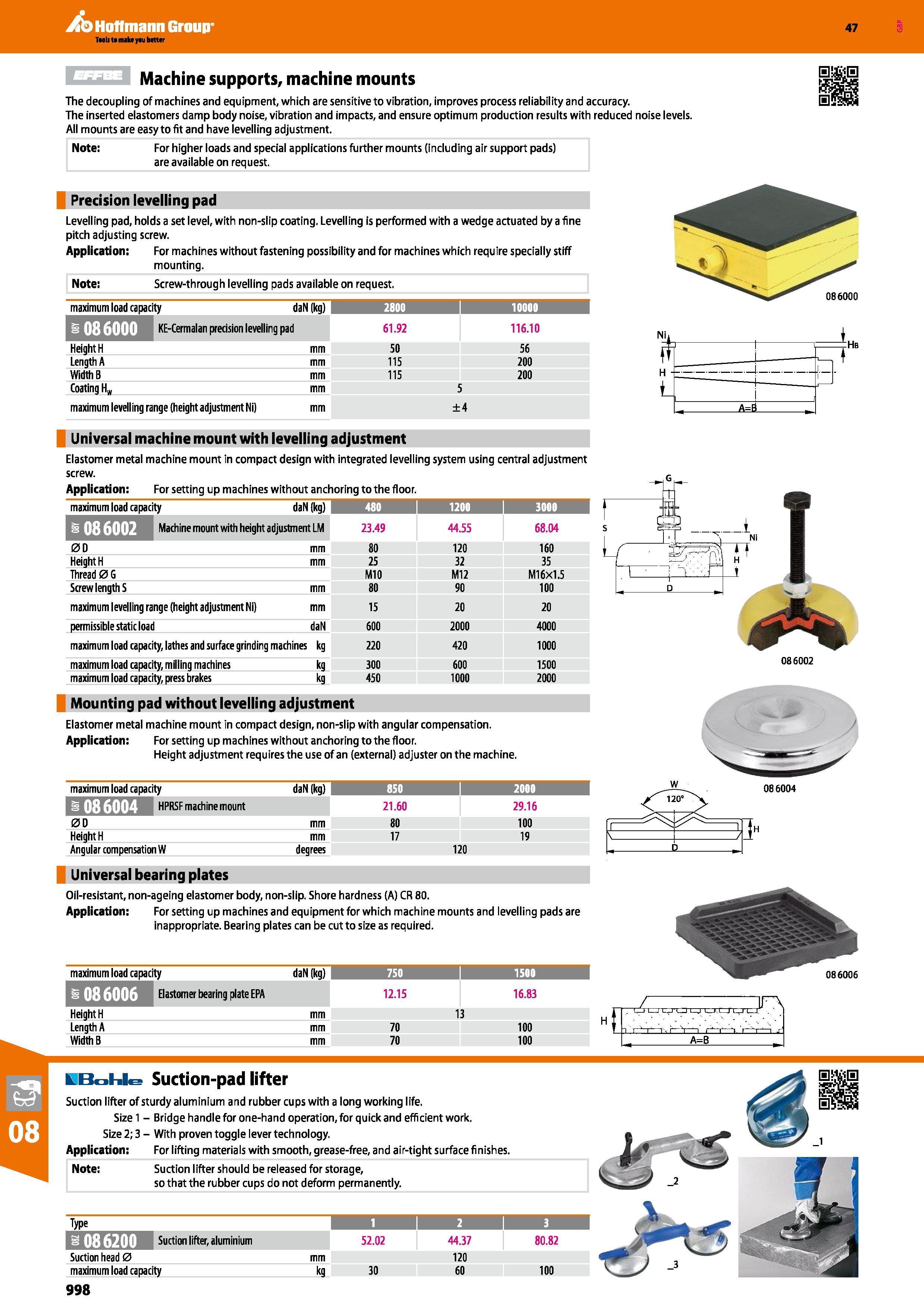

Hoffmann Group 47 Machine supports, machine mounts The decoupling of machines and equipment, which are sensitive to vibration, improves process reliability and accuracy. The inserted elastomers damp body noise, vibration and impacts, and ensure optimum production results with reduced noise levels. All mounts are easy to fit and have levelling adjustment. Note: For higher loads and special applications further mounts (including air support pads) are available on request. Precision levelling pad Levelling pad, holds a set level, with non-slip coating. Levelling is performed with a wedge actuated by a fine pitch adjusting screw. Application: For machines without fastening possibility and for machines which require specially stiff mounting. Note: Screw-through levelling pads available on request. maximum load capadty daN (kg) 2800 1 10000 lllKTnlllllM KE-Cermalan precision levelling pad 61.92 116.10 Height H mm 50 56 Length A mm 115 200 Width B mm 115 200 Coating H„ mm 5 maximum levelling range (height adjustment Ni) mm ±4 Universal machine mount with levelling adjustment Elastomer metal machine mount in compact design with integrated levelling system using central adjustment screw. Application: For setting up machines without anchoring to the floor. maximum load capadty daN (kg) 480 I 1200 i 3000 Machine mount with height adjustment LM 23.49 44.55 68.04 0D mm 80 120 160 Height H mm 25 32 35 Thread 0G M10 M12 M16X1.5 Screw lengths mm 80 90 100 maximum levelling range (height adjustment Ni) mm 15 20 20 permissible static load daN 600 2000 4000 maximum load capadty, lathes and surface grinding machines kg 220 420 1000 maximum load capacity, milling machines kg 300 600 1500 ft A=fl maximum load capadty, press brakes kg 450 1000 2000 Mounting pad without levelling adjustment Elastomer metal machine mount in compact design, non-slip with angular compensation. Application: For setting up machines without anchoring to the floor. Height adjustment requires the use of an (external) adjuster on the machine. 086000 ,Hb B 086002 maximum load capadty daN (kg) HPRSF machine mount 21.60 29.16 Universal bearing plates Oil-resistant, non-ageing elastomer body, non-slip. Shore hardness (A) CR 80. Application: For setting up machines and equipment for which machine mounts and levelling pads are inappropriate. Bearing plates can be cut to size as required. maximum load capacity daN (kg) I 1500 I rlTIT 1B Elastomer bearing plate EPA 12.15 16.83 Height H mm 13 Length A mm 70 100 Width B mm 70 100 0D mm 80 100 1 1 J Height H mm 17 19 / i Angular compensation W degrees 120 D 086004 . C-> L_J'U i j i r c j l_j izx T A=B 086006 DBoMe Suction-pad lifter Suction lifter of sturdy aluminium and rubber cups with a long working life. Size 1 - Bridge handle for one-hand operation, for quick and efficient work. Size 2; 3 - With proven toggle lever technology. Application: For lifting materials with smooth, grease-free, and air-tight surface finishes. Note: Suction lifter should be released for storage, so that the rubber cups do not deform permanently. Type 1 1 2 1 3 086200 Suction lifter, aluminium 52.02 44.37 80.82 Suction head 0 maximum load capadty 998 mm kg 30 120 60 100
