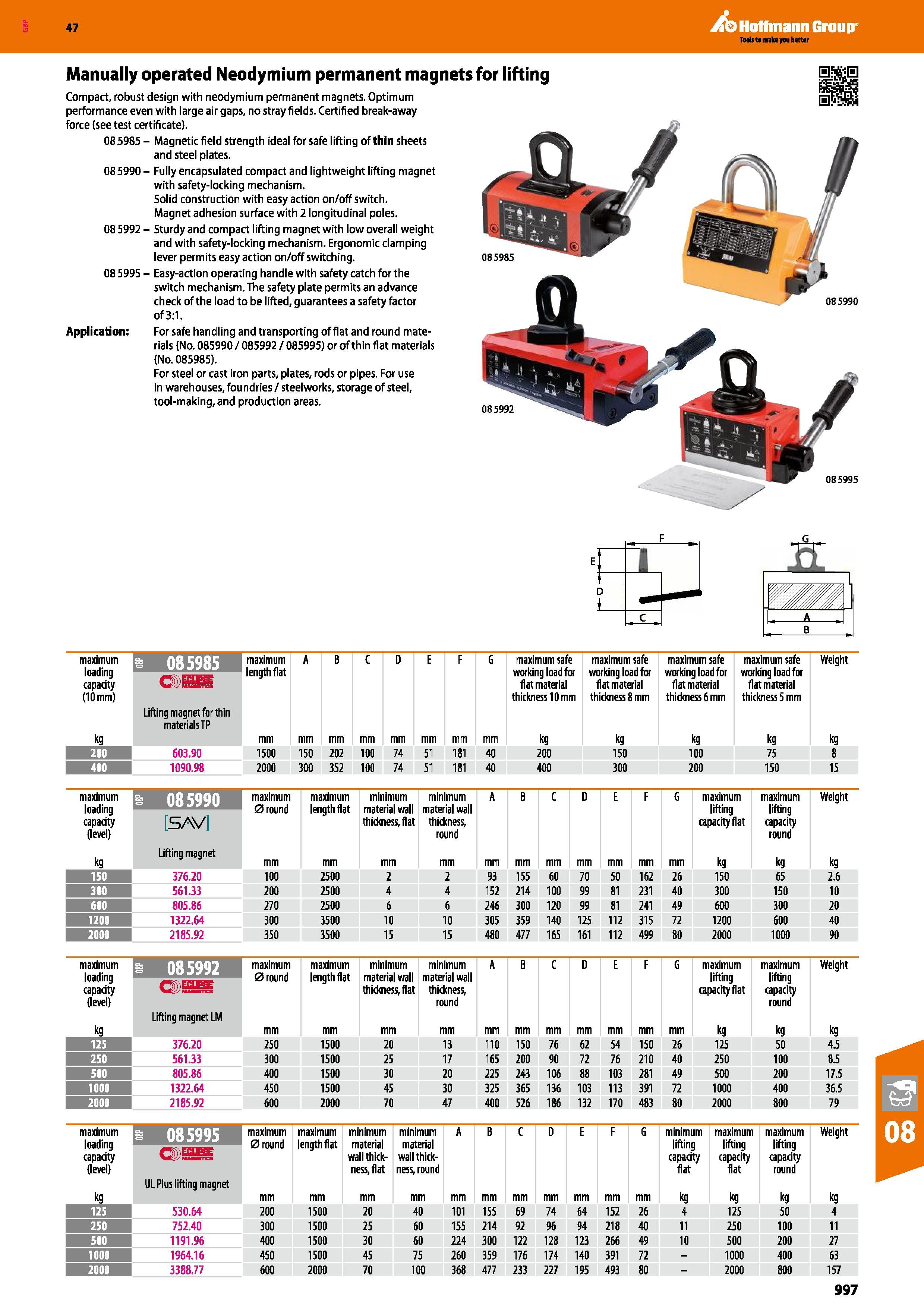

Hoffmann Group 47 Manually operated Neodymium permanent magnets for lifting Compact, robust design with neodymium permanent magnets. Optimum performance even with large air gaps, no stray fields. Certified break-away force (see test certificate). 085985 - Magnetic field strength ideal for safe lifting of thin sheets and steel plates. 085990- Fully encapsulated compact and lightweight lifting magnet with safety-locking mechanism. Solid construction with easy action on/off switch. Magnet adhesion surface with 2 longitudinal poles. 085992 - Sturdy and compact lifting magnet with low overall weight and with safety-locking mechanism. Ergonomic clamping lever permits easy action on/off switching. 085995 - Easy-action operating handle with safety catch for the switch mechanism. The safety plate permits an advance check of the load to be lifted, guarantees a safety factor of 3:1. Application: For safe handling and transporting of flat and round mate- rials (No. 085990 / 085992 / 085995) or of thin flat materials (No. 085985). For steel or cast iron parts, plates, rods or pipes. For use in warehouses, foundries / steelworks, storage of steel, tool-making, and production areas. 1 D 1 c maximum loading capacity (10 mm) maximum length flat A B C D E F G maximum safe working load for flat material thickness 10 mm maximum safe working load for flat material thickness 8 mm maximum safe working load for flat material thickness 6 mm maximum safe working load for flat material thickness 5 mm Weight Lifting magnet for thin materials TP kg mm kg kg kg kg kg 200 603.90 1500 150 202 100 74 51 181 40 200 150 100 75 8 400 1090.98 2000 300 352 100 74 51 181 40 400 300 200 150 15 maximum loading capacity (level) SA/ maximum 0 round maximum length flat minimum material wall thickness, flat minimum material wall thickness, round A B C D E F G maximum lifting capacity flat maximum lifting capacity round Weight kg Lifting magnet mm kg kg kg 150 376.20 100 2500 2 2 93 155 60 70 50 162 26 150 65 2.6 300 561.33 200 2500 4 4 152 214 100 99 81 231 40 300 150 10 600 805.86 270 2500 6 6 246 300 120 99 81 241 49 600 300 20 1200 1322.64 300 3500 10 10 305 359 140 125 112 315 72 1200 600 40 2000 2185.92 350 3500 15 15 480 477 165 161 112 499 80 2000 1000 90 maximum loading capacity (level) maximum 0 round maximum length flat minimum material wall thickness, flat minimum material wall thickness, round A B C D E F G maximum lifting capacity flat maximum lifting capacity round Weight CHESPf kg Lifting magnet LM mm kg kg kg 125 376.20 250 1500 20 13 110 150 76 62 54 150 26 125 50 4.5 250 561.33 300 1500 25 17 165 200 90 72 76 210 40 250 100 8.5 500 805.86 400 1500 30 20 225 243 106 88 103 281 49 500 200 17.5 1000 1322.64 450 1500 45 30 325 365 136 103 113 391 72 1000 400 36.5 f 11.1 2185.92 600 2000 70 47 400 526 186 132 170 483 80 2000 800 79 maximum loading capacity (level) CPSEgl maximum 0 round maximum length flat minimum material wall thickness, flat minimum material wall thickness, round A B C D E F G minimum lifting capacity flat maximum lifting capacity flat maximum lifting capacity round Weight JL Plus lifting magnet mm kg kg kg kg 530.64 200 1500 20 40 101 155 69 74 64 152 26 4 125 50 4 752.40 300 1500 25 60 155 214 92 96 94 218 40 11 250 100 11 1191.96 400 1500 30 60 224 300 122 128 123 266 49 10 500 200 27 1964.16 450 1500 45 75 260 359 176 174 140 391 72 - 1000 400 63 3388.77 600 2000 70 100 368 477 233 227 195 493 80 - 2000 800 157 997
