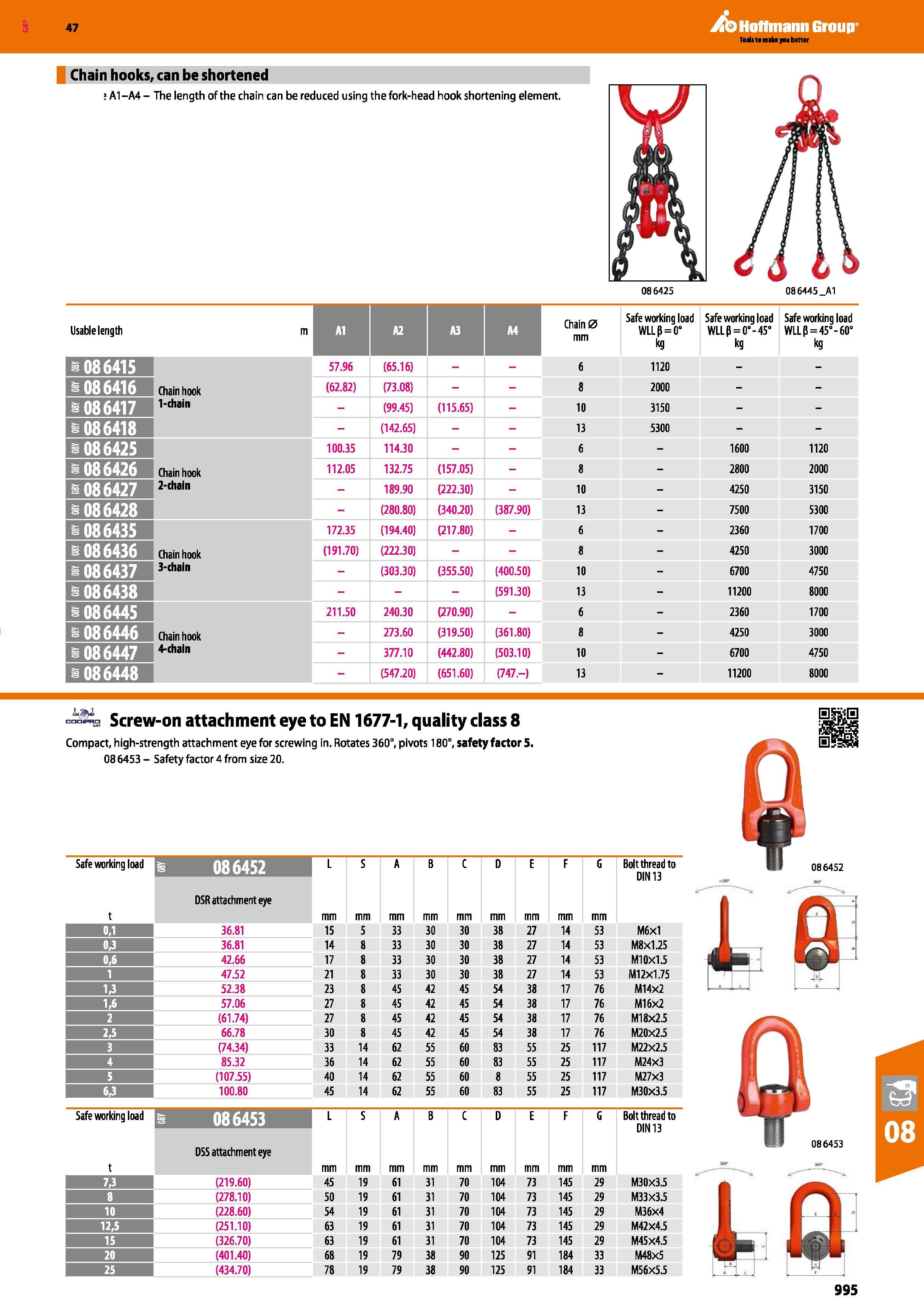

Hoflmann Group 086425 086445_A1 Usable length m A1 A2 A3 A4 Chain 0 mm Safe working load WLLf = 0° kg Safe working load WLLP = 0°-45° kg Safe working load WLLP = 45”-60° kg s 086415 57.96 (65.16) 6 1120 086416 Chain hook (62.82) (73.08) 8 2000 mmm 1-chain - (99.45) (115.65) - 10 3150 (142.65) 13 5300 i 086425 100.35 114.30 6 - 1600 1120 s 086426 Chain hook 112.05 132.75 (157.05) - 8 - 2800 2000 i 086427 2-chain - 189.90 (222.30) - 10 - 4250 3150 i 086428 - (280.80) (340.20) (387.90) 13 - 7500 5300 086435 172.35 (194.40) (217.80) - 6 - 2360 1700 086436 Chain hook (191.70) (222.30) 8 - 4250 3000 s 086437 3-chain - (303.30) (355.50) (400.50) 10 - 6700 4750 086438 (591.30) 13 - 11200 8000 mmm 211.50 240.30 (270.90) - 6 - 2360 1700 mmm Chain hook - 273.60 (319.50) (361.80) 8 - 4250 3000 i 086447 4-chain - 377.10 (442.80) (503.10) 10 - 6700 4750 s 086448 - (547.20) (651.60) (747.-) 13 - 11200 8000 s Screw-on attachment eye to EN 1677-1, quality class 8 Compact, high-strength attachment eye for screwing in. Rotates 360°, pivots 180°, safety factor 5. 08 6453 - Safety factor 4 from size 20. Safe working load t 086452 L mm S mm A mm B mm C mm D mm E mm F mm G mm Bolt thread to DIN 13 DSR attachment eye 0,1 36.81 15 5 33 30 30 38 27 14 53 M6x1 0,3 36.81 14 8 33 30 30 38 27 14 53 M8X1.25 0,6 42.66 17 8 33 30 30 38 27 14 53 Ml 0x1.5 1 47.52 21 8 33 30 30 38 27 14 53 M12X1.75 1,3 52.38 23 8 45 42 45 54 38 17 76 M14X2 1,6 57.06 27 8 45 42 45 54 38 17 76 M16x2 2 (61.74) 27 8 45 42 45 54 38 17 76 M18x2.5 2,5 66.78 30 8 45 42 45 54 38 17 76 M20X2.5 3 (74.34) 33 14 62 55 60 83 55 25 117 M22X2.5 4 85.32 36 14 62 55 60 83 55 25 117 M24X3 5 (107.55) 40 14 62 55 60 8 55 25 117 M27X3 6,3 100.80 45 14 62 55 60 83 55 25 117 M30X3.5 Safe working load t 086453 L mm S mm A mm B mm C mm D mm E mm F mm G mm Bolt thread to DIN 13 DSS attachment eye 7,3 (219.60) 45 19 61 31 70 104 73 145 29 M30X3.5 8 (278.10) 50 19 61 31 70 104 73 145 29 M33X3.5 10 (228.60) 54 19 61 31 70 104 73 145 29 M36X4 12,5 (251.10) 63 19 61 31 70 104 73 145 29 M42X4.5 15 (326.70) 63 19 61 31 70 104 73 145 29 M45X4.5 20 (401.40) 68 19 79 38 90 125 91 184 33 M48x5 25 (434.70) 78 19 79 38 90 125 91 184 33 M56X5.5 086453 L 995
