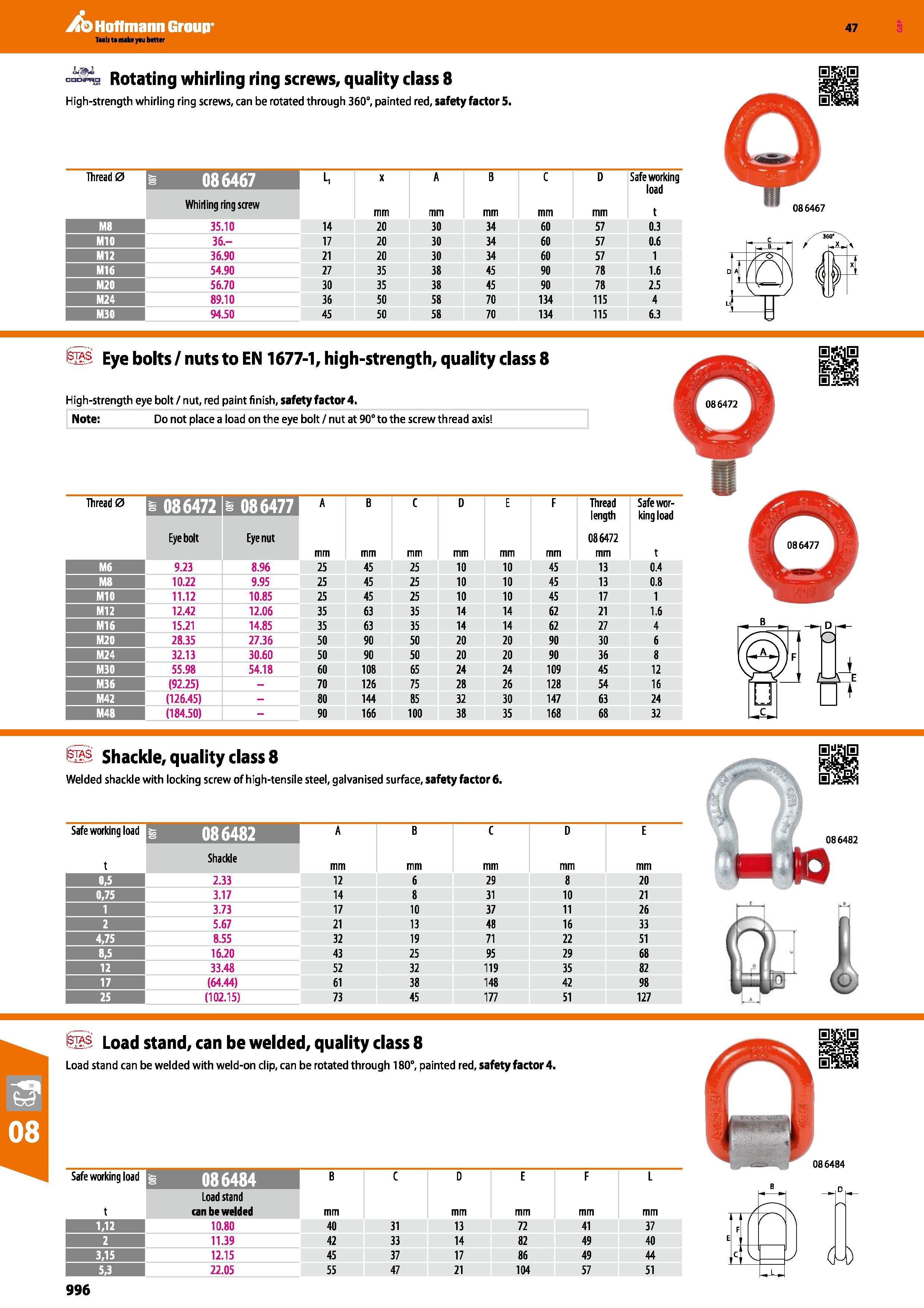

Hoffmann Group 47 Rotating whirling ring screws, quality class 8 High-strength whirling ring screws, can be rotated through 360°, painted red, safety factor 5. Thread 0 i 086467 L, X mm A mm B mm C mm D mm Safe working load t Whirling ring screw M8 35.10 14 20 30 34 60 57 0.3 M10 36.- 17 20 30 34 60 57 0.6 Ml 2 36.90 21 20 30 34 60 57 1 M16 54.90 27 35 38 45 90 78 1.6 M20 56.70 30 35 38 45 90 78 2.5 M24 89.10 36 50 58 70 134 115 4 M30 94.50 45 50 58 70 134 115 6.3 086467 ¥ tsl Eye bolts / nuts to EN 1677-1, high-strength, quality class 8 High-strength eye bolt / nut, red paint finish, safety factor 4. Note: Do not place a load on the eye bolt / nut at 90° to the screw th read axis Thread 0 mummum A B C D E F Thread length Safe working load Eye bolt Eye nut mm 086472 mm t M6 9.23 8.96 25 45 25 10 10 45 13 0.4 M8 10.22 9.95 25 45 25 10 10 45 13 0.8 M10 11.12 10.85 25 45 25 10 10 45 17 1 Ml 2 12.42 12.06 35 63 35 14 14 62 21 1.6 Ml 6 15.21 14.85 35 63 35 14 14 62 27 4 M20 28.35 27.36 50 90 50 20 20 90 30 6 M24 32.13 30.60 50 90 50 20 20 90 36 8 M30 55.98 54.18 60 108 65 24 24 109 45 12 M36 (92.25) - 70 126 75 28 26 128 54 16 M42 (126.45) - 80 144 85 32 30 147 63 24 M48 (184.50) - 90 166 100 38 35 168 68 32 Is Shackle, quality class 8 Welded shackle with locking screw of high-tensile steel, galvanised surface, safety factor 6. Safe working load A B C D E t Shackle mm ,5 2.33 12 6 29 8 20 0,75 3.17 14 8 31 10 21 1 3.73 17 10 37 11 26 2 5.67 21 13 48 16 33 4,75 8.55 32 19 71 22 51 8,5 16.20 43 25 95 29 68 12 33.48 52 32 119 35 82 17 (64.44) 61 38 148 42 98 25 (102.15) 73 45 177 51 127 Load stand, can be welded, quality class 8 Load stand can be welded with weld-on clip, can be rotated through 180°, painted red, safety factor 4. Safe working load B C D E F L Load stand t can be welded mm 1,12 10.80 40 31 13 72 41 37 2 11.39 42 33 14 82 49 40 3,15 12.15 45 37 17 86 49 44 5,3 22.05 55 47 21 104 57 51 1, l / F rC V L „ \ J 086484 996
