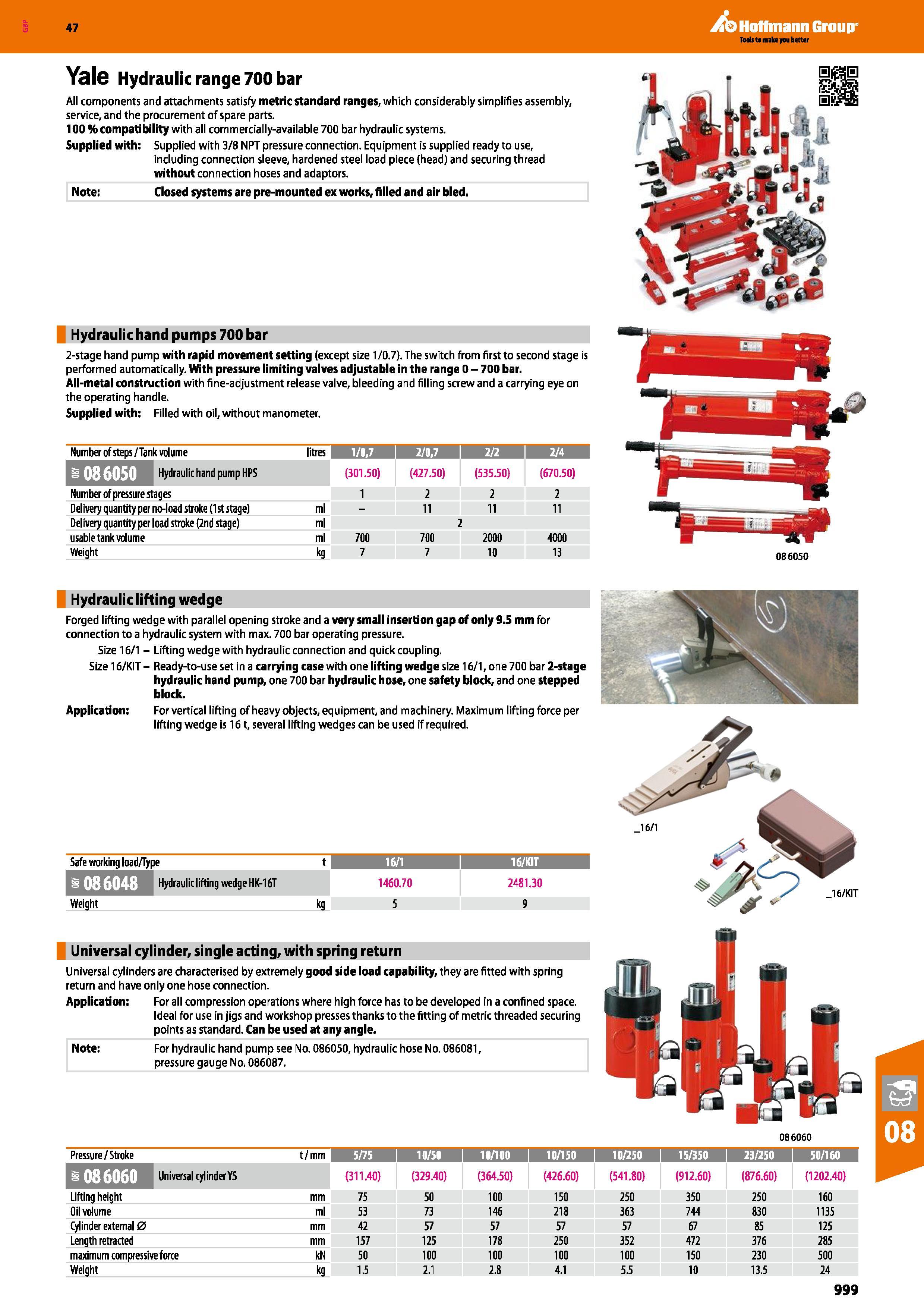

Hoffmann Group 47 Yale Hydraulic range 700 bar All components and attachments satisfy metric standard ranges, which considerably simplifies assembly, service, and the procurement of spare parts. 100%compatibility with all commercially-available 700 bar hydraulic systems. Supplied with: Supplied with 3/8 NPT pressure connection. Equipment is supplied ready to use, including connection sleeve, hardened steel load piece (head) and securing thread without connection hoses and adaptors. Note; Closed systems are pre-mounted ex works, filled and air bled. Hydraulic hand pumps 700 bar 2-stage hand pump with rapid movement setting (except size 1/0.7). The switch from first to second stage is performed automatically. With pressure limiting valves adjustable in the range 0 - 700 bar. All-metal construction with fine-adjustment release valve, bleeding and filling screw and a carrying eye on the operating handle. Supplied with: Filled with oil, without manometer. Number of steps / Tank volume litres 1/0,7 2/0,7 2/2 I 2/4 I Hydraulic hand pump HPS (301.50) (427.50) (535.50) (670.50) Number of pressure stages 1 2 2 2 Delivery quantity per no-load stroke (1st stage) ml - 11 11 11 Delivery quantity per load stroke (2nd stage) ml 2 usable tank volume ml 700 700 2000 4000 Weight kg 7 7 10 13 Hydraulic lifting wedge Forged lifting wedge with parallel opening stroke and a very small insertion gap of only 9.5 mm for connection to a hydraulic system with max. 700 bar operating pressure. Size 16/1 - Lifting wedge with hydraulic connection and quick coupling. Size 16/KIT - Ready-to-use set in a carrying case with one lifting wedge size 16/1, one 700 bar 2-stage hydraulic hand pump, one 700 bar hydraulic hose, one safety block, and one stepped block. Application: For vertical lifting of heavy objects, equipment, and machinery. Maximum lifting force per lifting wedge is 161, several lifting wedges can be used if required. Safe working load/Type t 16/1 16/KIT Hydraulic lifting wedge HK-16T 1460.70 2481.30 Universal cylinder, single acting, with spring return Universal cylinders are characterised by extremely good side load capability, they are fitted with spring return and have only one hose connection. Application: For all compression operations where high force has to be developed in a confined space. Ideal for use in jigs and workshop presses thanks to the fitting of metric threaded securing points as standard. Can be used at any angle. Note: For hydraulic hand pump see No. 086050, hydraulic hose No. 086081, pressure gauge No. 086087. 086060 Pressure/Stroke t/mm 5/73 10/50 j 10/100 j 10/150 j 10/250 j 15/350 I 23/250 1 50/160 i Universal cylinder YS (311.40) (329.40) (364.50) (426.60) (541.80) (912.60) (876.60) (1202.40) Lifting height mm 75 50 100 150 250 350 250 160 Oil volume ml 53 73 146 218 363 744 830 1135 Cylinder external 0 mm 42 57 57 57 57 67 85 125 Length retracted mm 157 125 178 250 352 472 376 285 maximum compressive force kN 50 100 100 100 100 150 230 500 Weight kg 1.5 2.1 2.8 4.1 5.5 10 13.5 24 086050 999
