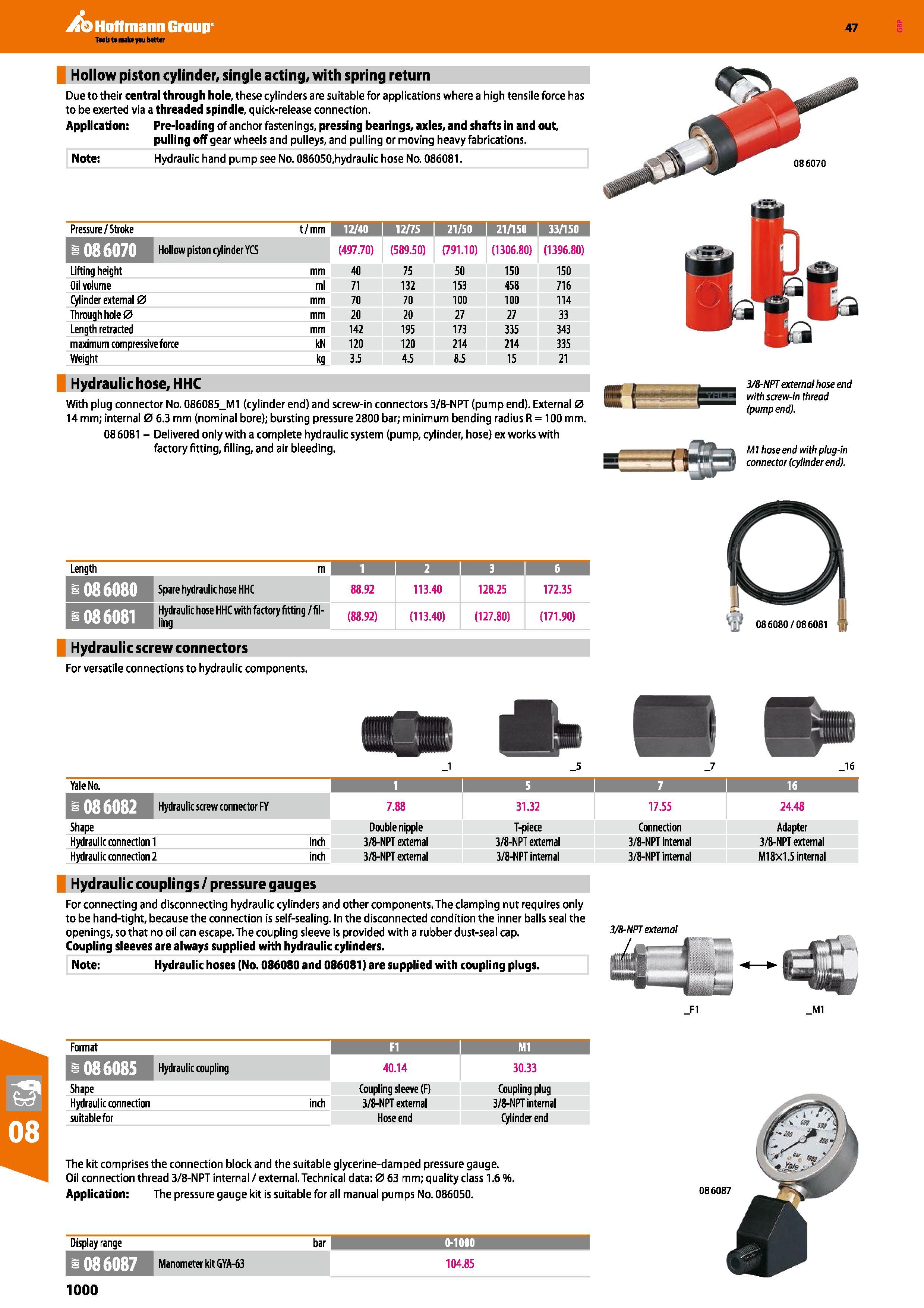

Hollow piston cylinder, single acting, with spring return Due to their central through hole, these cylinders are suitable for applications where a high tensile force has to be exerted via a threaded spindle, quick-release connection. Application: Pre-loading of anchor fastenings, pressing bearings, axles, and shafts in and out, pulling off gear wheels and pulleys, and pulling or moving heavy fabrications. Note: Hydraulic hand pump see No. 086050,hydraulic hose No. 086081. Pressure/Stroke t/mm 12/40 I 12/75 1 21/50 1 21/150 1 33/150 MIKfjllfTM Hollow piston cylinder YCS (497.70) (589.50) (791.10) (1306.80) (1396.80) Lifting height mm 40 75 50 150 150 Oil volume ml 71 132 153 458 716 Cylinder external 0 mm 70 70 100 100 114 Through hole 0 mm 20 20 27 27 33 Length retracted mm 142 195 173 335 343 maximum compressive force kN 120 120 214 214 335 Weight kg 3.5 4.5 8.5 15 21 Hydraulic hose, HHC With plug connector No. 086085_M1 (cylinder end) and screw-in connectors 3/8-NPT (pump end). External 0 14 mm; internal 0 6.3 mm (nominal bore); bursting pressure 2800 bar; minimum bending radius R = 100 mm. 08 6081 - Delivered only with a complete hydraulic system (pump, cylinder, hose) ex works with factory fitting, filling, and air bleeding. 3/8-NPT external hose end with screw-in thread (pump end). Ml hose end with plug-in connector (cylinder end). Length m I 1 1 2 I 3 I 6 086080 Spare hydraulic hose HHC 88.92 113.40 128.25 172.35 Hydraulic hose HHC with factory fitting /filling (88.92) (113.40) (127.80) (171.90) Hydraulic screw connectors For versatile connections to hydraulic components. _16 Yale No. 1 1 5 1 7 1 16 1 Hydraulic screw connector FY 7.88 31.32 17.55 24.48 Shape Double nipple T-piece Connection Adapter Hydraulic connection 1 inch 3/8-NPT external 3/8-NPT external 3/8-NPT internal 3/8-NPT external Hydraulic connection 2 inch 3/8-NPT external 3/8-NPT internal 3/8-NPT internal M18X1.5 internal Hydraulic couplings / pressure gauges For connecting and disconnecting hydraulic cylinders and other components. The clam ping nut requires only to be hand-tight, because the connection is self-sealing. In the disconnected condition the inner balls seal the openings, so that no oil can escape. The coupling sleeve is provided with a rubber dust-seal cap. Coupling sleeves are always supplied with hydraulic cylinders. Note: Hydraulic hoses (No. 086080 and 086081) are supplied with coupling plugs. 3/8-NPT external _M1 Format FI 1 Ml 3lKfjllK>J Hydraulic coupling 40.14 30.33 Shape Coupling sleeve (F) Coupling plug Hydraulic connection inch 3/8-NPT external 3/8-NPT internal suitable for Hose end Cylinder end The kit comprises the connection block and the suitable glycerine-damped pressure gauge. Oil connection thread 3/8-NPT internal/external. Technical data; 0 63 mm; quality class 1.6%. Application: The pressure gauge kit is suitable for all manual pumps No. 086050. Display range bar 0-1000 Manometer kit GYA-63 104.85 Hoffmann Group 086087 1000
