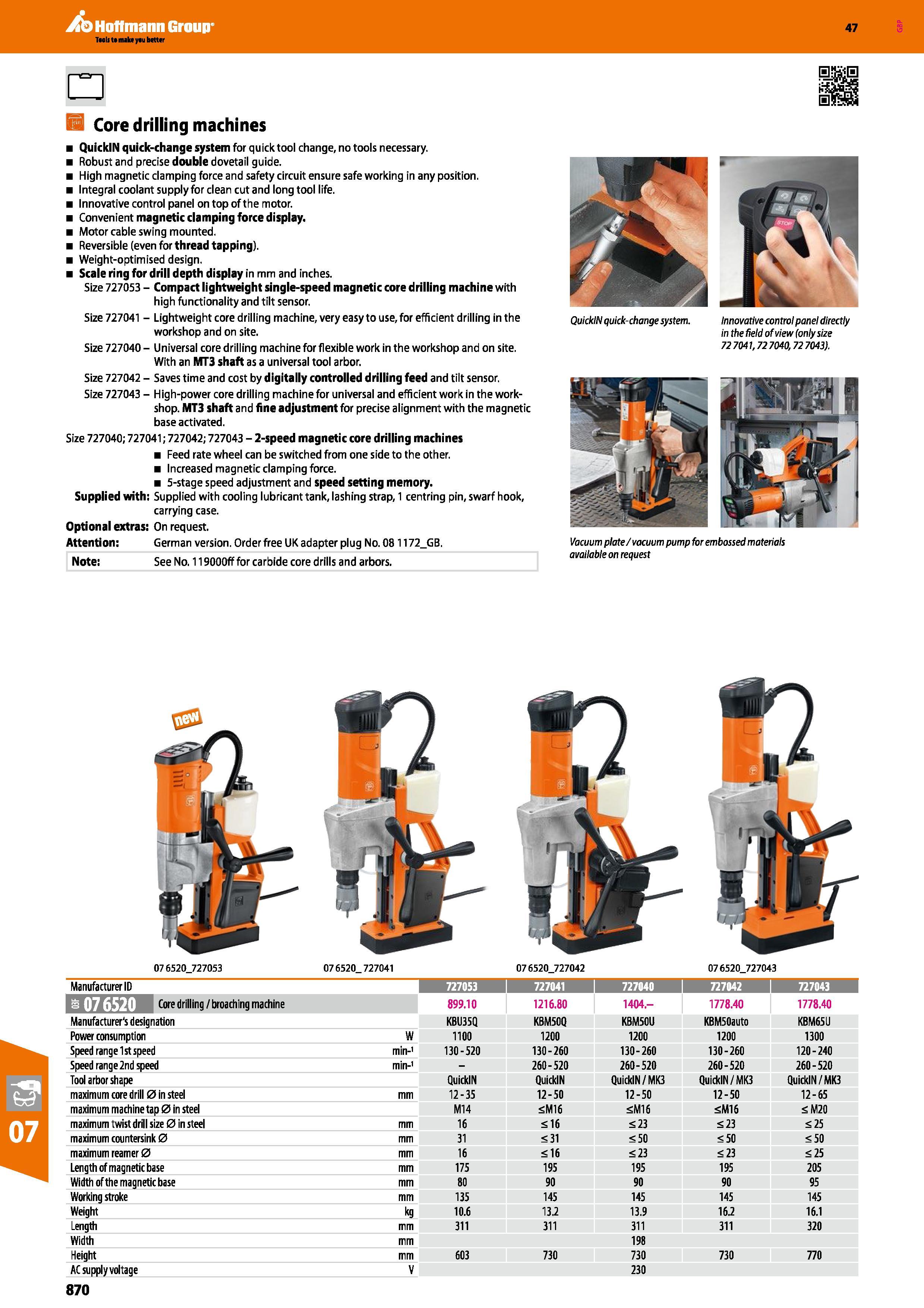

Hoffmann Group 47 Core drilling machines QuickIN quick-change system for quick tool change, no tools necessary. Robust and precise double dovetail guide. High magnetic clamping force and safety circuit ensure safe working in any position. Integral coolant supply for clean cut and long tool life. Innovative control panel on top of the motor. Convenient magnetic clamping force display. Motor cable swing mounted. Reversible (even for thread tapping). Weight-optimised design. Scale ring for drill depth display in mm and inches. Size 727053 - Compact lightweight single-speed magnetic core drilling machine with high functionality and tilt sensor. Size 727041 - Lightweight core drilling machine, very easy to use, for efficient drilling in the workshop and on site. Size 727040 - Universal core drilling machine for flexible work in the workshop and on site. With an MT3 shaft as a universal tool arbor. Size 727042 - Saves time and cost by digitally controlled drilling feed and tilt sensor. Size 727043 - High-power core drilling machine for universal and efficient work in the workshop. MT3 shaft and fine adjustment for precise alignment with the magnetic base activated. Size 727040; 727041; 727042; 727043 - 2-speed magnetic core drilling machines Feed rate wheel can be switched from one side to the other. Increased magnetic clamping force. 5-stage speed adjustment and speed setting memory. Supplied with; Supplied with cooling lubricant tank, lashing strap, 1 centring pin, swarf hook, carrying case. Optional extras: On request. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: See No. 119000ff for carbide core drills and arbors. QuickIN quick-change system. Innovative control panel directly in the field of view (only size 72 7041,727040,727043). Vacuum plate/vacuum pump for embossed materials available on request 07 6520_727053 076520 727041 07 6520_727042 07 6520_727043 Manufacturer ID I 727053 I 727041 I 727040 727042 ( 727043 alr rvyjlB Core drilling /broaching machine 899.10 1216.80 1404- 1778.40 1778.40 Manufacturer's designation KBU35Q KBM50Q KBM50U KBM50auto KBM65J Power consumption W 1100 1200 1200 1200 1300 Speed range 1st speed min-1 130-520 130-260 130-260 130-260 120-240 Speed range 2nd speed min-1 - 260-520 260-520 260-520 260-520 Tool arbor shape QuickIN QuickIN QuickIN/ MIG QuickIN/MIG QuickIN/ MIG maximum core drill 0 in steel mm 12-35 12-50 12-50 12-50 12-65 maximum machine tap 0 in steel Ml 4 £M16 £M16 <;M16 £M20 maximum twist drill size 0 in steel mm 16 S16 S23 S23 <;25 maximum countersink 0 mm 31 <31 <50 <50 <50 maximum reamer 0 mm 16 <16 <23 <23 <25 Length of magnetic base mm 175 195 195 195 205 Width of the magnetic base mm 80 90 90 90 95 Working stroke mm 135 145 145 145 145 Weight kg 10.6 13.2 13.9 16.2 16.1 Length mm 311 311 311 311 320 Width mm 198 Height mm 603 730 730 730 770 AC supply voltage V 230 870
