873 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.873

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 873 0873 ENG Lab2u

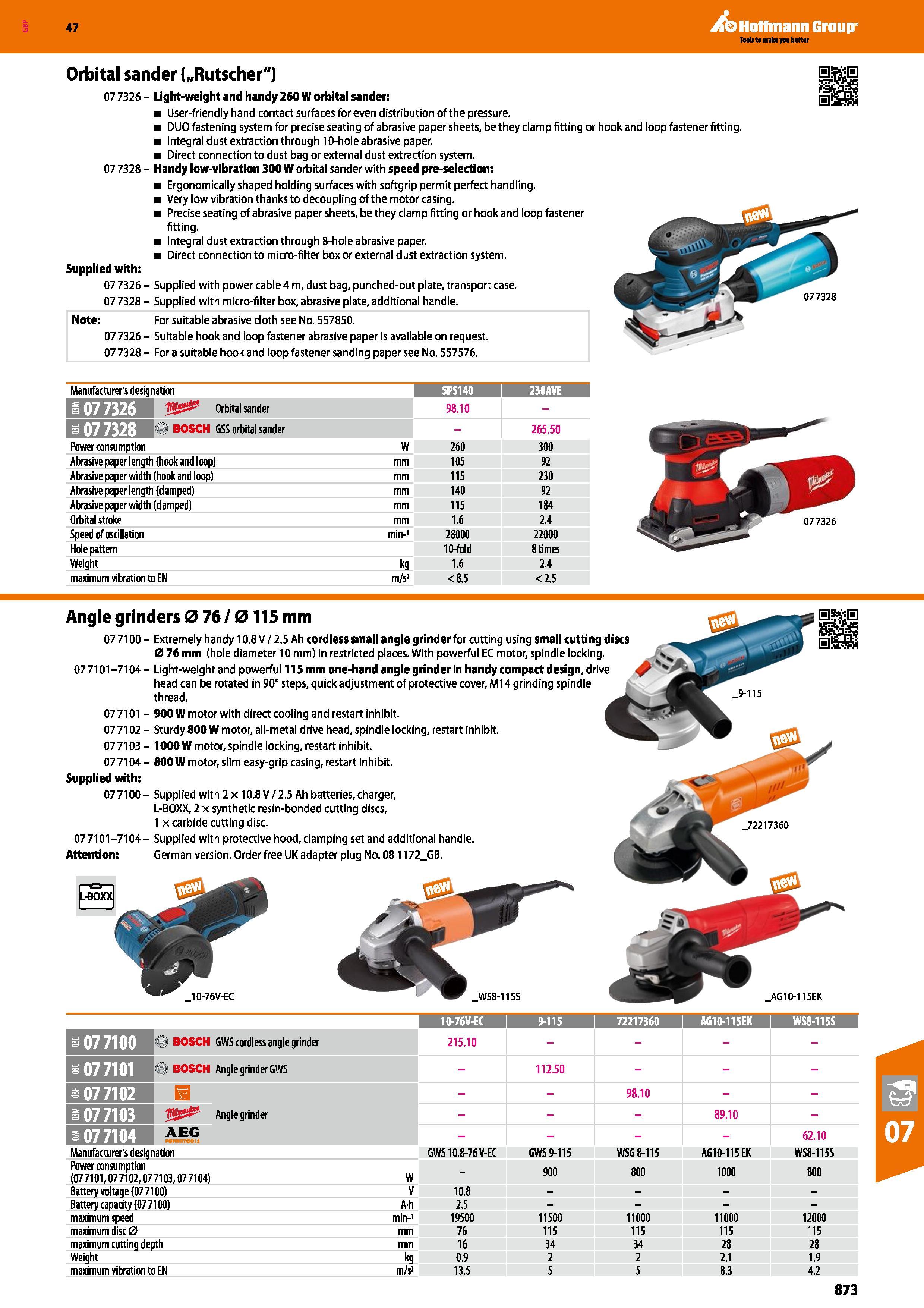

Hoffmann Group 47 Orbital sander URutscher") 07 7326 - Light-weight and handy 260 W orbital sander: User-friendly hand contact surfaces for even distribution of the pressure. DUO fastening system for precise seating of abrasive paper sheets, be they clamp fitting or hook and loop fastener fitting. Integral dust extraction through 10-hole abrasive paper. Direct connection to dust bag or external dust extraction system. 07 7328 - Handy low-vibration 300 W orbital sander with speed pre-selection: Ergonomically shaped holding surfaces with softgrip permit perfect handling. Very low vibration thanks to decoupling of the motor casing. Precise seating of abrasive paper sheets, be they clamp fitting or hook and loop fastener fitting. Integral dust extraction through 8-hole abrasive paper. Direct connection to micro-filter box or external dust extraction system. Supplied with: 07 7326 - Supplied with power cable 4 m, dust bag, punched-out plate, transport case. 07 7328 - Supplied with micro-filter box, abrasive plate, additional handle. Note: For suitable abrasive doth see No. 557850. 077326- Suitable hook and loop fastener abrasive paper is available on request. 07 7328 - For a suitable hook and loop fastener sanding paper see No. 557576. Manufacturer's designation SPS140 230AVE 13588 Orbital sander 98.10 - J BOSCH GSS orbital sander - 265.50 Power consumption W 260 300 Abrasive paper length (hook and loop) mm 105 92 Abrasive paper width (hook and loop) mm 115 230 Abrasive paper length (damped) mm 140 92 Abrasive paper width (damped) mm 115 184 Orbital stroke mm 1.6 2.4 Speed of oscillation min-1 28000 22000 Hole pattern 10-fold 8 times Weight kg 1.6 2.4 maximum vibration to EN m/s2 <8.5 <2.5 077328 077326 _AG10-115EK Angle grinders 0 76/ 0115 mm 07 7100 - Extremely handy 10.8 V / 2.5 Ah cordless small angle grinder for cutting using small cutting discs 0 76 mm (hole diameter 10 mm) in restricted places. With powerful EC motor, spindle locking. 07 7101 -7104 - Light-weight and powerful 115 mm one-hand angle grinder in handy compact design, drive head can be rotated in 90° steps, quick adjustment of protective cover, Ml 4 grinding spindle thread. 077101 - 900 W motor with direct cooling and restart inhibit. 077102 - Sturdy 800W motor, all-metal drive head, spindle locking, restart inhibit. 077103 - 1000 W motor, spindle locking, restart inhibit. 077104 - 800 W motor, slim easy-grip casing, restart inhibit. Supplied with: 077100- Supplied with 2 x 10.8 V/2.5 Ah batteries, charger, L-BOXX, 2 x synthetic resin-bonded cutting discs, 1 x carbide cutting disc. 077101-7104- Supplied with protective hood, clamping set and additional handle. Attention: German version. Order free UK adapter plug No. 081172_GB. 72217360 10-76V-EC I 9-115 I 72217360 i AG10-115EK i WS8-115S 1 i 077100 BOSCH GWS cordless angle grinder 215.10 - 3 077101 f > BOSCH Angle grinder GWS - 112.50 S 077102 H 98.10 2 3 077103 j Angle grinder 89.10 - 077104 AEG POW1RTOOLJ - 62.10 Manufacturer's designation GWS 10.8-76 V-EC GWS 9-115 WSG 8-115 AG10-115 EK WS8-115S Power consumption (077101,077102,077103,077104) w - 900 800 1000 800 Battery voltage (07 7100) V 10.8 - Battery capacity (07 7100) Ah 2.5 - maximum speed min-1 19500 11500 11000 11000 12000 maximum disc 0 mm 76 115 115 115 115 maximum cutting depth mm 16 34 34 28 28 Weight kg 0.9 2 2 2.1 1.9 maximum vibration to EN m/s2 13.5 5 5 8.3 4.2 873
