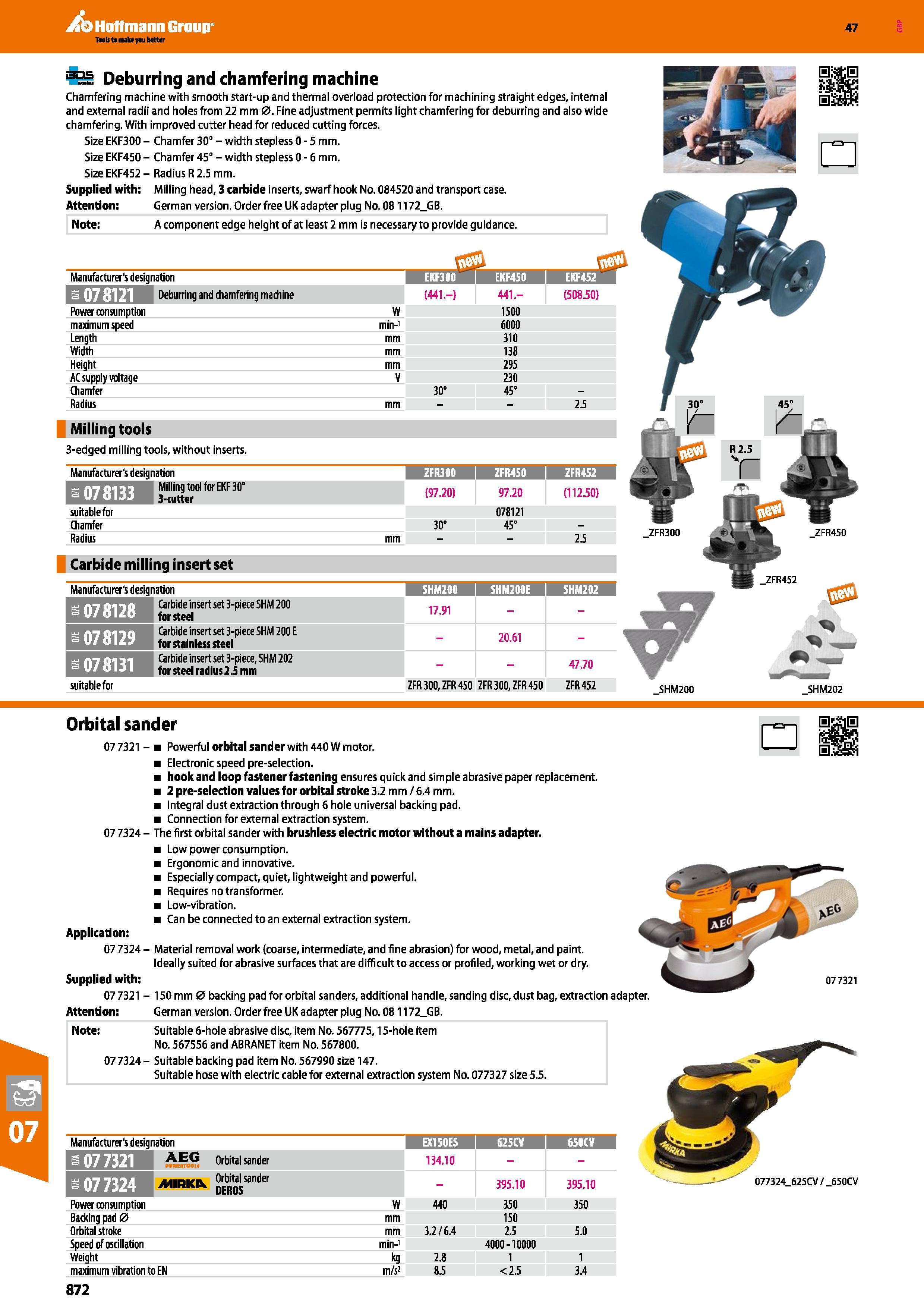

872 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.872

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 872 0872 ENG Lab2u

Hoffmann Group 47 Deburring and chamfering machine Chamfering machine with smooth start-up and thermal overload protection for machining straight edges, internal and external radii and holes from 22 mm 0. Fine adjustment permits light chamfering for deburring and also wide chamfering. With improved cutter head for reduced cutting forces. Size EKF300 - Chamfer 30° - width stepless 0-5 mm. Size EKF450 - Chamfer 45° - width stepless 0 - 6 mm. Size EKF452 - Radius R 2.5 mm. Supplied with: Milling head, 3 carbide inserts, swarf hook No. 084520 and transport case. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: A component edge height of at least 2 mm is necessary to provide guidance. Deburring and chamfering machine (441.-) 441.- (508.50) Power consumption W 1500 maximum speed min-1 6000 Length mm 310 Width mm 138 Height mm 295 AC supply voltage V 230 Chamfer 30° 45° - Radius mm 2.5 Milling tools 3-edged milling tools, without inserts. Manufacturer's designation 1 ZFR300 ZFR450 I ZFR452 Milling tool for EKF 30° (97.20) 97.20 (112.50) suitable for 078121 Chamfer 30° 45° - Radius Carbide milling insert set 2.5 Manufacturer's designation SHM200 KIMS SHM202 Carbide insert set 3-piece SHM 200 for steel 17.91 - s 078129 Carbide insert set 3-piece SHM 200 E for stainless steel - 20.61 - s 078131 Carbide insert set 3-piece, SHM 202 for steel radius 2.5 mm 47.70 suitable for ZFR 300, ZFR 450 ZFR 300, ZFR 450 ZFR 452 _SHM200 _SHM202 Application: 077324- Material removal work (coarse, intermediate, and fine abrasion) for wood, metal, and paint. Ideally suited for abrasive surfaces that are difficult to access or profiled, working wet or dry. Supplied with: 07 7321 - 150 mm 0 backing pad for orbital sanders, additional handle, sanding disc, dust bag, extraction adapter. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: Suitable 6-hole abrasive disc, item No. 567775,15-hole item No. 567556 and ABRANET item No. 567800. 07 7324 - Suitable backing pad item No. 567990 size 147. Suitable hose with electric cable for external extraction system No. 077327 size 5.5. Orbital sander 077321 - Powerful orbital sander with 440 W motor. Electronic speed pre-selection. hook and loop fastener fastening ensures quick and simple abrasive paper replacement. 2 pre-selection values for orbital stroke 3.2 mm / 6.4 mm. Integral dust extraction through 6 hole universal backing pad. Connection for external extraction system. 07 7324 - The first orbital sander with brushless electric motor without a mains adapter. Low power consumption. Ergonomic and innovative. Especially compact, quiet, lightweight and powerful. Requires no transformer. Low-vibration. Can be connected to an external extraction system. 077324_625CV / _650CV 077321 Manufacturer's designation EX150ES i 625CV 650CV 07 7321 AEG orbital sander 134.10 07 7324 Orbital sander DER0S - 395.10 395.10 Backing pad 0 Orbital stroke Speed of oscillation Weight maximum vibration to EN 872 mm min-1 kg m/s2 3.2/6.4 2.8 8.5 150 2.5 4000-10000 1 <2.5 5.0 1 3.4
