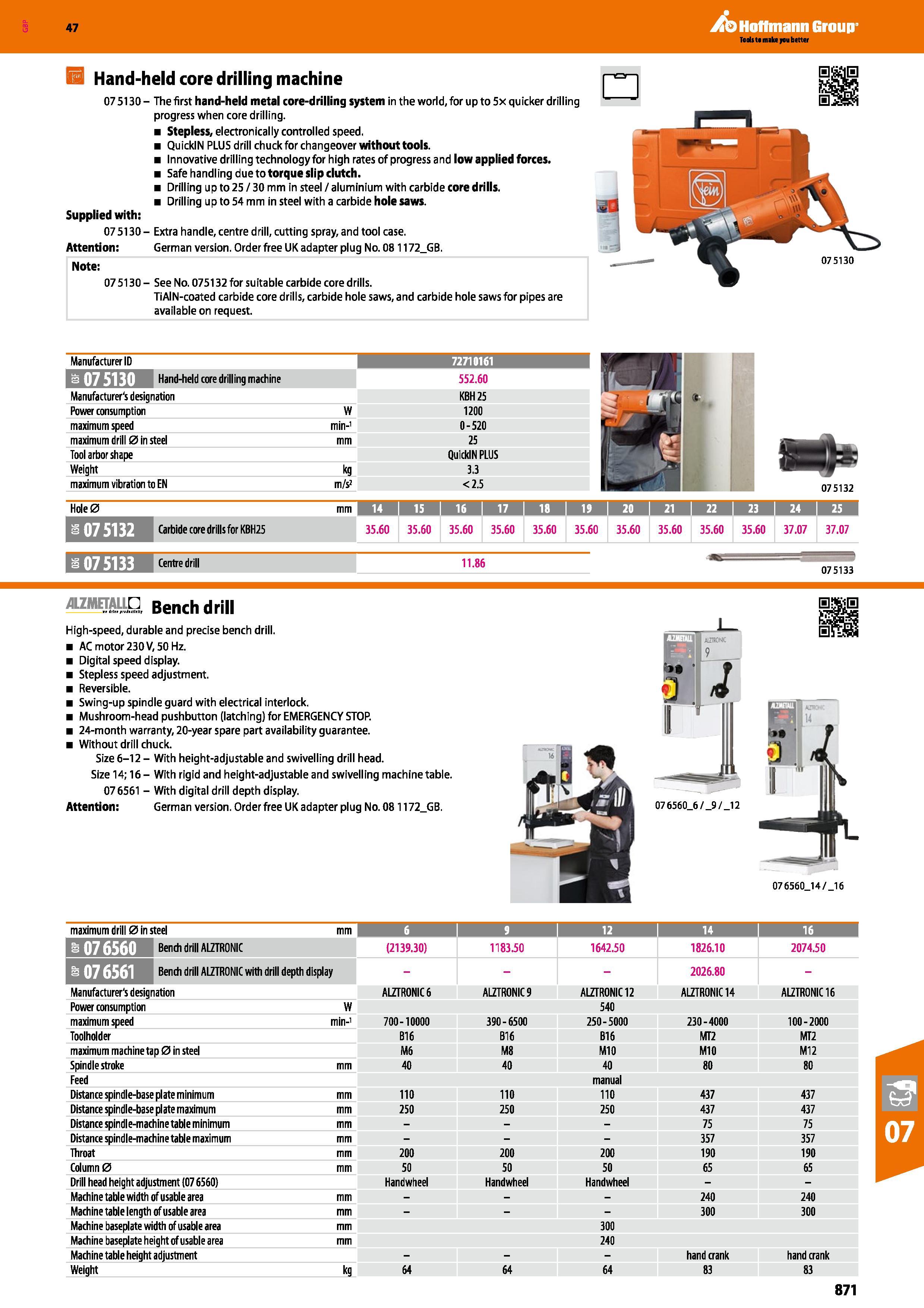

47 Hand-held core drilling machine 075130- The first hand-held metal core-drilling system in the world, for upto 5x quicker drilling progress when core drilling. Stepless, electronically controlled speed. QuickIN PLUS drill chuck for changeover without tools. Innovative drilling technology for high rates of progress and low applied forces. Safe handling due to torque slip clutch. Drilling up to 25/30 mm in steel /aluminium with carbide core drills. Drilling up to 54 mm in steel with a carbide hole saws. Supplied with: 075130 - Extra handle, centre drill, cutting spray, and tool case. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: 07 5130 - See No. 075132 for suitable carbide core drills. TiAIN-coated carbide core drills, carbide hole saws, and carbide hole saws for pipes are available on request. As) Hoffmann Group s: Manufacturer ID 72710161 11 fl.1 tTTM Hand-held core drilling machine 552.60 Manufacturer's designation KBH25 Power consumption W 1200 maximum speed min-1 0-520 maximum drill 0 in steel mm 25 Tool arbor shape QuickIN PLUS Weight kg 3.3 maximum vibration to EN m/s <2.5 075133 Centre drill 075132 Hole0 mm BEH 1 15 1 16 1 17 1 1 1 1 1 20 1 21 1 22 1 23 1 24 1 25 a 075132 Carbide core drills for KBH25 35.60 35.60 35.60 35.60 35.60 35.60 35.60 35.60 35.60 35.60 37.07 37.07 11.86 075133 ..R Bench drill High-speed, durable and precise bench drill. AC motor 230 V, 50 Hz. Digital speed display. Stepless speed adjustment. Reversible. Swing-up spindle guard with electrical interlock. Mushroom-head pushbutton (latching) for EMERGENCY STOP. 24-month warranty, 20-year spare part availability guarantee. Without drill chuck. Size 6-12 - With height-adjustable and swivelling drill head. Size 14; 16- With rigid and height-adjustable and swivelling machine table. 076561 - With digital drill depth display. Attention: German version. Order free UK adapter plug No. 081172_GB. 07 6560_6 / _9 / _12 07 6560_14/_16 maximum drill 0 in steel mm 6 9 I 12 i 14 16 EHiy/iVM'l Bench drill ALZTRONIC (2139.30) 1183.50 1642.50 1826.10 2074.50 Bench drill ALZTRONIC with drill depth display 2026.80 - Manufacturer's designation ALZTRONIC 6 ALZTRONIC 9 ALZTRONIC 12 ALZTRONIC 14 ALZTRONIC 16 Power consumption W 540 maximum speed min-1 700-10000 390 - 6500 250-5000 230-4000 100-2000 Toolholder B16 B16 B16 MT2 MT2 maximum machine tap 0 in steel M6 M8 M10 M10 M12 Spindle stroke mm 40 40 40 80 80 Feed manual Distance spindle-base plate minimum mm 110 110 110 437 437 Distance spindle-base plate maximum mm 250 250 250 437 437 Distance spindle-machine table minimum mm 75 75 Distance spindle-machine table maximum mm 357 357 Throat mm 200 200 200 190 190 Column 0 mm 50 50 50 65 65 Drill head height adjustment (07 6560) Handwheel Handwheel Handwheel Machine table width of usable area mm 240 240 Machine table length of usable area mm 300 300 Machine baseplate width of usable area mm 300 Machine baseplate height of usable area mm 240 Machine table height adjustment hand crank hand crank Weight kg 64 64 64 83 83 871 075130
