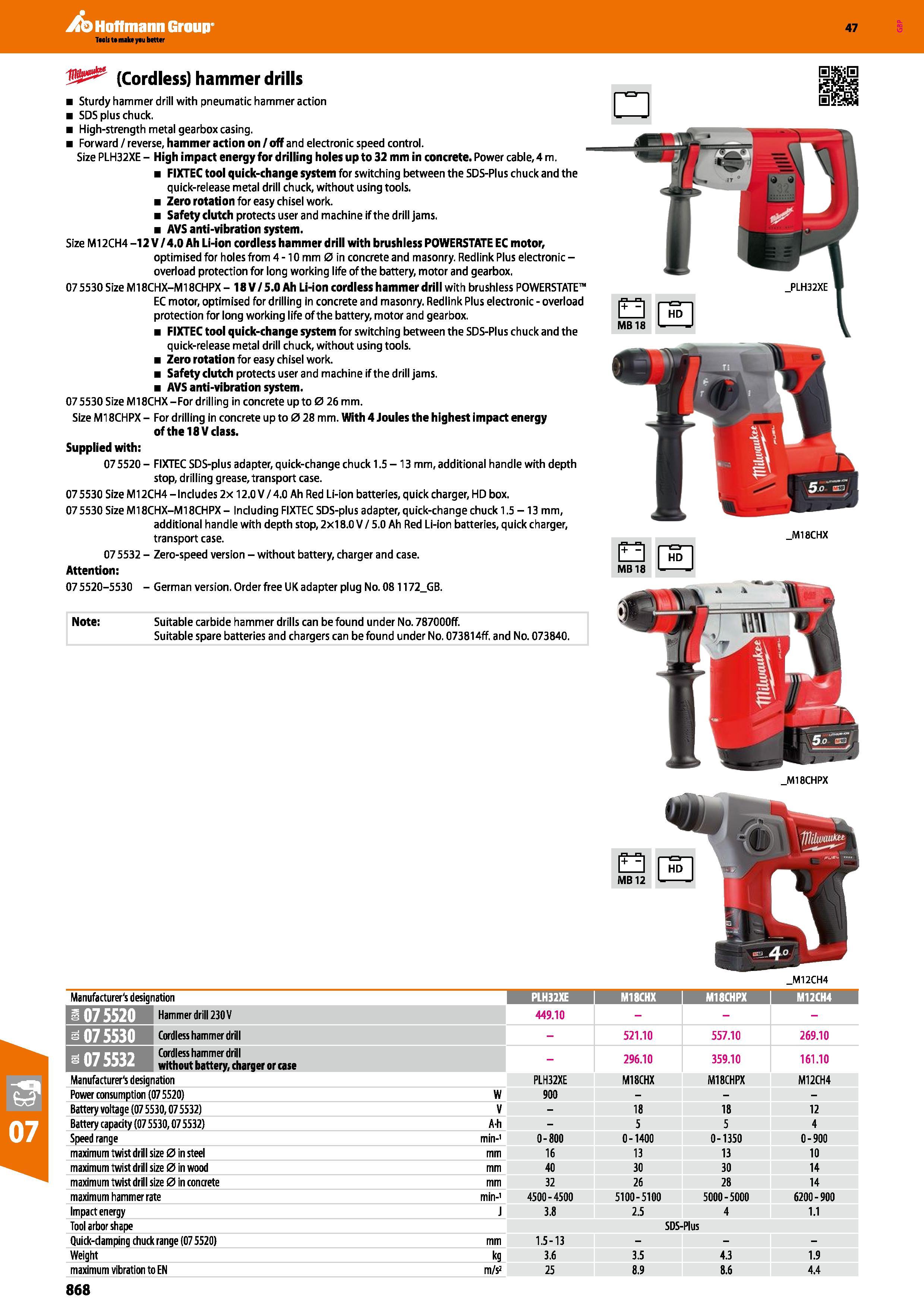

868 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.868

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 868 0868 ENG Lab2u

Hoffmann Group Note: Suitable carbide hammer drills can be found under No. 787000ff. Suitable spare batteries and chargers can be found under No. 073814ff. and No. 073840. Teals to make yau better (Cordless) hammer drills Sturdy hammer drill with pneumatic hammer action SDS plus chuck. High-strength metal gearbox casing. Forward / reverse, hammer action on / off and electronic speed control. Size PLH32XE - High impact energy for drilling holes up to 32 mm in concrete. Power cable, 4 m, FIXTEC tool quick-change system for switching between the SDS-Plus chuck and the quick-release metal drill chuck, without using tools. Zero rotation for easy chisel work. Safety clutch protects user and machine if the drill jams. AVS anti-vibration system. Size M12CH4 -12 V/4.0 Ah Li-ion cordless hammer drill with brushless POWERSTATE EC motor, optimised for holes from 4-10 mm 0 in concrete and masonry. Redlink Plus electronic -overload protection for long working life of the battery, motor and gearbox. 075530 Size M18CHX-M18CHPX- 18V/5.0 Ah Li-ion cordless hammer drill with brushless POWERSTATE EC motor, optimised for drilling in concrete and masonry. Redlink Plus electronic - overload protection for long working life of the battery, motor and gearbox. FIXTEC tool quick-change system for switching between the SDS-Plus chuck and the quick-release metal drill chuck, without using tools. Zero rotation for easy chisel work. Safety clutch protects user and machine if the drill jams. AVS anti-vibration system. 075530 Size M18CHX-Fordrilling in concrete upto 0 26 mm. Size Ml 8CHPX - For drilling in concrete up to 0 28 mm. With 4 Joules the highest impact energy of the 18 V class. Supplied with: 075520- FIXTEC SDS-plus adapter, quick-change chuck 1.5 -13 mm, additional handle with depth stop, drilling grease, transport case. 075530 Size M12CH4 -Includes 2x 12.0 V/4.0 Ah Red Li-ion batteries, quick charger, HD box. 075530 Size Ml8CHX-M18CHPX - Including FIXTEC SDS-plus adapter, quick-change chuck 1.5 -13 mm, additional handle with depth stop, 2x18.0 V/5.0 Ah Red Li-ion batteries, quick charger, transport case. 07 5532 - Zero-speed version - without battery, charger and case. Attention: 075520-5530 - German version. Order free UK adapter plug No. 081172_GB. _PLH32XE _M18CHX _M18CHPX _M12CH4 Manufacturer's designation 1 PLH32XE M18CHX M18CHPX M12CH4 Hammer drill 230 V 449.10 s 075530 Cordless hammer drill - 521.10 557.10 269.10 s 075532 Cordless hammer drill without battery, charger or case - 296.10 359.10 161.10 Manufacturer's designation PLH32XE M18CHX M18CHPX M12CH4 Power consumption (07 5520) W 900 Battery voltage (07 5530,07 5532) V - 18 18 12 Battery capacity (07 5530,07 5532) A-h - 5 5 4 Speed range min-1 0-800 0-1400 0-1350 0-900 maximum twist drill size 0 in steel mm 16 13 13 10 maximum twist drill size 0 in wood mm 40 30 30 14 maximum twist drill size 0 in concrete mm 32 26 28 14 maximum hammer rate min-1 4500 - 4500 5100-5100 5000-5000 6200-900 Impact energy J 3.8 2.5 4 1.1 Tool arbor shape SDS-Plus Quick-damping chuck range (07 5520) mm 1.5-13 Weight kg 3.6 3.5 4.3 1.9 maximum vibration to EN m/s2 25 8.9 8.6 4.4 868
