867 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.867

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 867 0867 ENG Lab2u

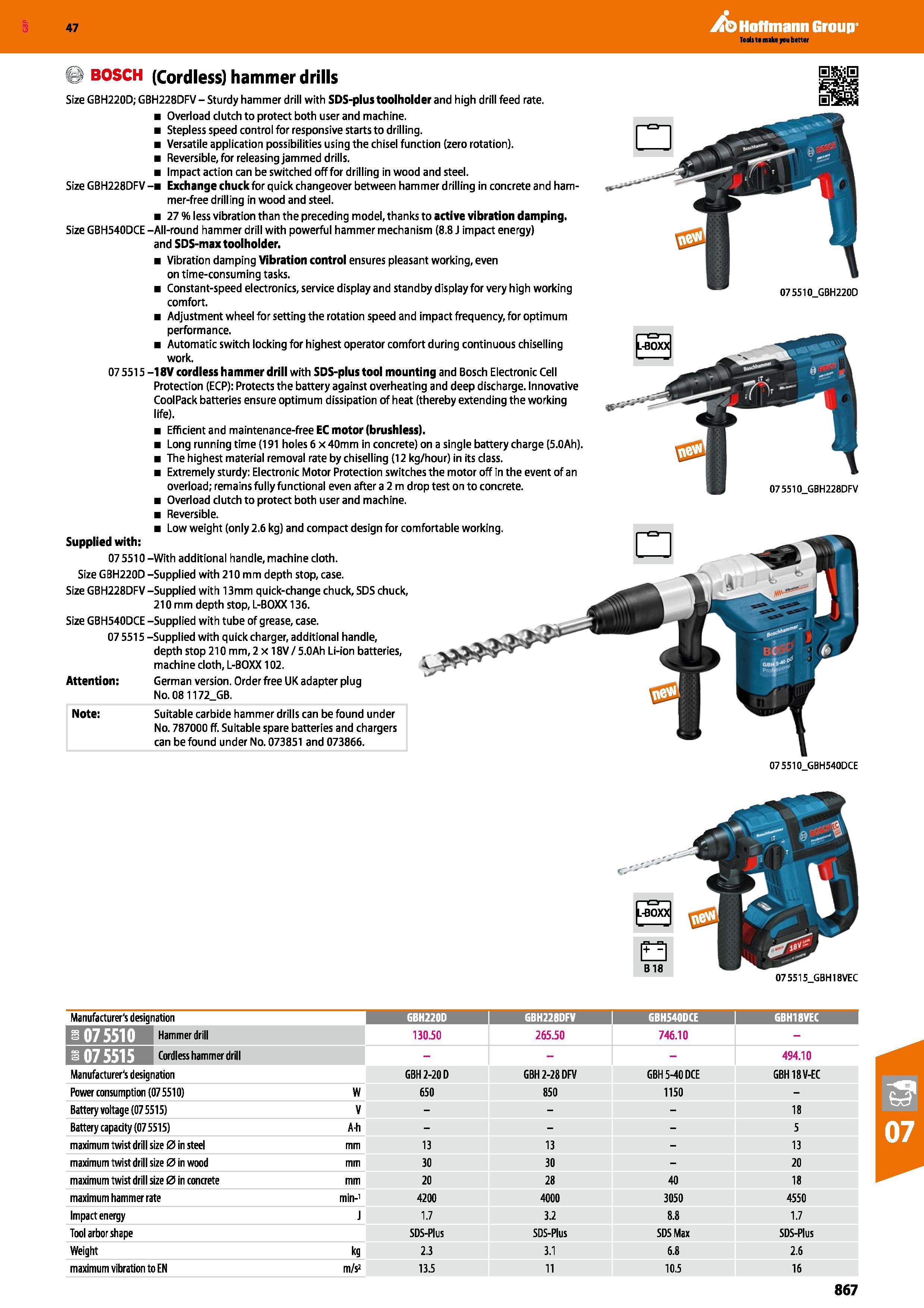

Hoffmann Group 47 075510_GBH228DFV BOSCH (Cordless) hammer drills Size GBH220D; GBH228DFV - Sturdy hammer drill with SDS-plus toolholder and high drill feed rate. Overload clutch to protect both user and machine. Stepless speed control for responsive starts to drilling. Versatile application possibilities using the chisel function (zero rotation). Reversible, for releasing jammed drills. Impact action can be switched off for drilling in wood and steel. Size GBH228DFV - Exchange chuck for quick changeover between hammer drilling in concrete and hammer-free drilling in wood and steel. 27 % less vibration than the preceding model, thanks to active vibration damping. Size GBH540DCE -All-round hammer drill with powerful hammer mechanism (8.8 J impact energy) and SDS-max toolholder. Vibration damping Vibration control ensures pleasant working, even on time-consuming tasks. Constant-speed electronics, service display and standby display for very high working comfort. Adjustment wheel for setting the rotation speed and impact frequency, for optimum performance. Automatic switch locking for highest operator comfort during continuous chiselling work. 07 5515 -18V cordless hammer drill with SDS-plus tool mounting and Bosch Electronic Cell Protection (ECP): Protects the battery against overheating and deep discharge. Innovative CoolPack batteries ensure optimum dissipation of heat (thereby extending the working life). Efficient and maintenance-free EC motor (brushless). Long running time (191 holes 6 x 40mm in concrete) on a single battery charge (5.0Ah), The highest material removal rate by chiselling (12 kg/hour) in its class. Extremely sturdy: Electronic Motor Protection switches the motor off in the event of an overload; remains fully functional even after a 2 m drop test on to concrete. Overload clutch to protect both user and machine. Reversible. Low weight (only 2.6 kg) and compact design for comfortable working. Supplied with: 07 5510 -With additional handle, machine doth. Size GBH220D -Supplied with 210 mm depth stop, case. Size GBH228DFV -Supplied with 13mm quick-change chuck, SDS chuck, 210 mm depth stop, L-BOXX136. Size GBH540DCE -Supplied with tube of grease, case. 07 5515 -Supplied with quick charger, additional handle, depth stop 210 mm, 2 x 18V / 5.0Ah Li-ion batteries, machine cloth, L-BOXX 102. Attention: German version. Order free UK adapter plug No. 08 1172_GB. Note: Suitable carbide hammer drills can be found under No. 787000 ff. Suitable spare batteries and chargers can be found under No. 073851 and 073866. 075510 GBH220D 07 5510_GBH540DCE 075515_GBH18VEC Manufacturer's designation GBH220D GBH228DFV GBH540DCE 1 GBH18VEC i 1 075510 130.50 265.50 746.10 - Cordless hammer drill 494.10 Manufacturer's designation GBH 2-20 D GBH 2-28 DFV GBH 5-40 DCE GBH18V-EC Power consumption (07 5510) W 650 850 1150 - Battery voltage (07 5515) V 18 Battery capacity (07 5515) A-h 5 maximum twist drill size 0 in steel mm 13 13 - 13 maximum twist drill size 0 in wood mm 30 30 - 20 maximum twist drill size 0 in concrete mm 20 28 40 18 maximum hammer rate min-1 4200 4000 3050 4550 Impact energy J 1.7 3.2 8.8 1.7 Tool arbor shape SDS-Plus SDS-Plus SDS Max SDS-Plus Weight kg 2.3 3.1 6.8 2.6 maximum vibration to EN m/s2 13.5 11 10.5 16 867
