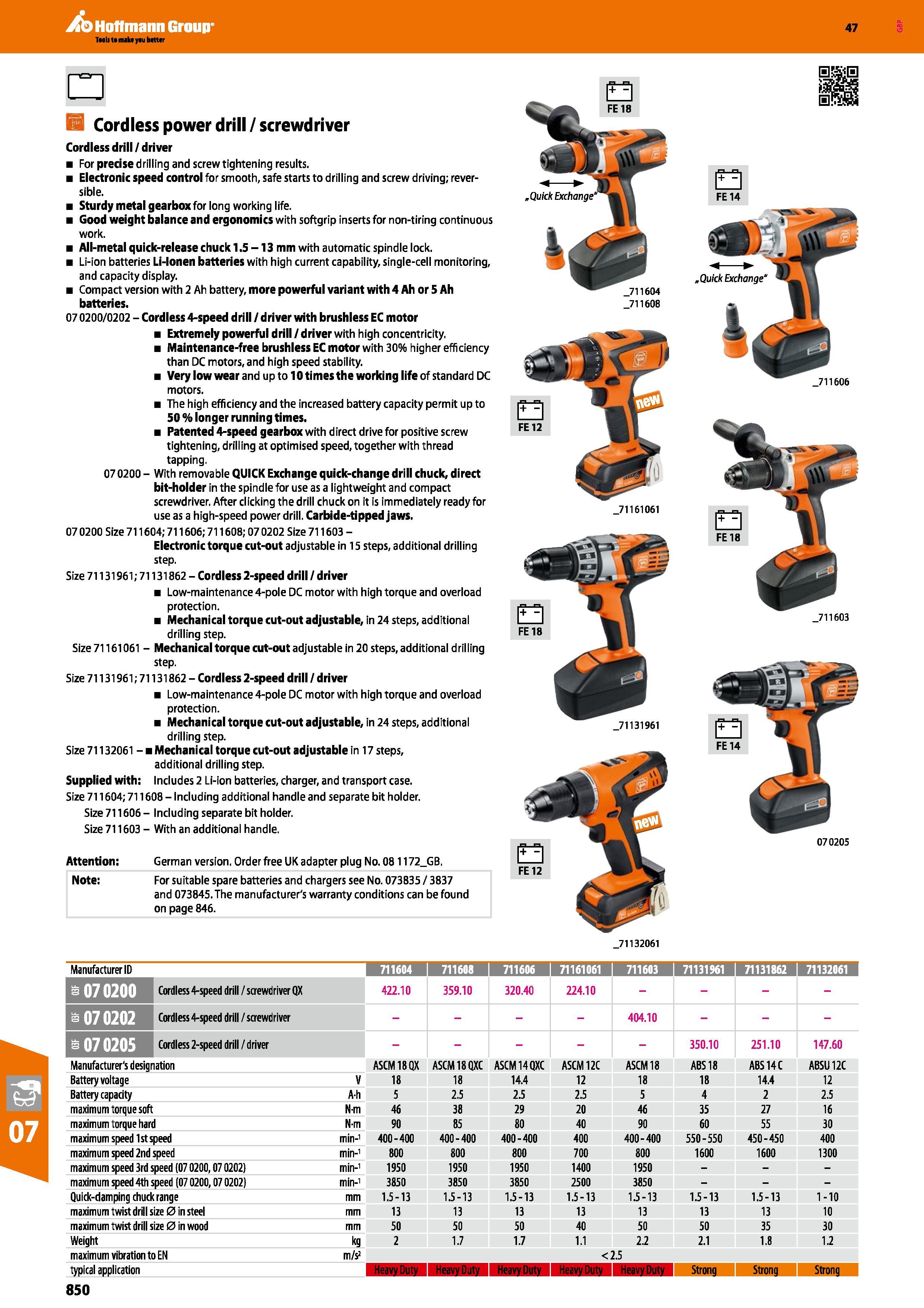

Hoffmann Group 47 IS Cordless power drill/screwdriver Cordless drill / driver For precise drilling and screw tightening results. Electronic speed control for smooth, safe starts to drilling and screw driving; reversible. Sturdy metal gearbox for long working life. Good weight balance and ergonomics with softgrip inserts for non-tiring continuous work. All-metal quick-release chuck 1.5 -13 mm with automatic spindle lock. Li-ion batteries Li-lonen batteries with high current capability, single-cell monitoring, and capacity display. Compact version with 2 Ah battery, more powerful variant with 4 Ah or 5 Ah batteries. 07 0200/0202 - Cordless 4-speed drill / driver with brushless EC motor Extremely powerful drill / driver with high concentricity. Maintenance-free brushless EC motor with 30% higher efficiency than DC motors, and high speed stability. Very low wear and up to 10 times the working life of standard DC motors. The high efficiency and the increased battery capacity permit up to 50 % longer running times. Patented 4-speed gearbox with direct drive for positive screw tightening, drilling at optimised speed, together with thread tapping. 070200- With removable QUICK Exchange quick-change drill chuck, direct bit-holder in the spindle for use as a lightweight and compact screwdriver. After clicking the drill chuck on it is immediately ready for use as a high-speed power drill. Carbide-tipped jaws. 07 0200 Size 711604; 711606; 711608; 07 0202 Size 711603 - Electronic torque cut-out adjustable in 15 steps, additional drilling step. Size 71131961; 71131862 - Cordless 2-speed drill / driver Low-maintenance 4-pole DC motor with high torque and overload protection. Mechanical torque cut-out adjustable, in 24 steps, additional drilling step. Size 71161061 - Mechanical torque cut-out adjustable in 20 steps, additional drilling step. Size 71131961; 71131862 - Cordless 2-speed drill / driver Low-maintenance 4-pole DC motor with high torque and overload protection. Mechanical torque cut-out adjustable, in 24 steps, additional drilling step. Size 71132061 - Mechanical torque cut-out adjustable in 17 steps, additional drilling step. Supplied with: Includes 2 Li-ion batteries, charger, and transport case. Size 711604; 711608-Including additional handle and separate bit holder. Size 711606 - Including separate bit holder. Size 711603 - With an additional handle. Attention: German version. Order free UK adapter plug No. 081172_GB, Note: For suitable spare batteries and chargers see No. 073835 / 3837 and 073845. The manufacturer's warranty conditions can be found on page 846. 71161061 _71131961 070205 71132061 Manufacturer ID 711604 I 711608 1 711606 I 71161061 1 711603 1 71131961 I 71131862 I 71132061 B 07 0200 Cordless 4-speed drill / screwdriver QX 422.10 359.10 320.40 224.10 - s 07 0202 Cordless 4-speed drill / screwdriver - 404.10 07 0205 Cordless 2-speed drill / driver 350.10 251.10 147.60 Manufacturer's designation ASCM18QX ASCM18QXC ASCM14QXC ASCM12C ASCM18 ABS 18 ABS14C ABSU12C Battery voltage V 18 18 14.4 12 18 18 14.4 12 Battery capacity A-h 5 2.5 25 2.5 5 4 2 2.5 maximum torque soft N-m 46 38 29 20 46 35 27 16 maximum torque hard N-m 90 85 80 40 90 60 55 30 maximum speed 1st speed min-1 400-400 400 - 400 400 - 400 400 400-400 550-550 450 - 450 400 maximum speed 2nd speed min-1 800 800 800 700 800 1600 1600 1300 maximum speed 3rd speed (07 0200,07 0202) min-1 1950 1950 1950 1400 1950 maximum speed 4th speed (07 0200,07 0202) min-1 3850 3850 3850 2500 3850 Quick-damping chuck range mm 1.5-13 1.5-13 1.5-13 1.5-13 1 5-13 1.5-13 1.5-13 1-10 maximum twist drill size 0 in steel mm 13 13 13 13 13 13 13 10 maximum twist drill size 0 in wood mm 50 50 50 40 50 50 35 30 Weight kg 2 1.7 1.7 1.1 2.2 2.1 1.8 1.2 maximum vibration to EN m/s1 <2.5 typical application Strong Strong Strong 850 E3 FE 14 711606 _711603
