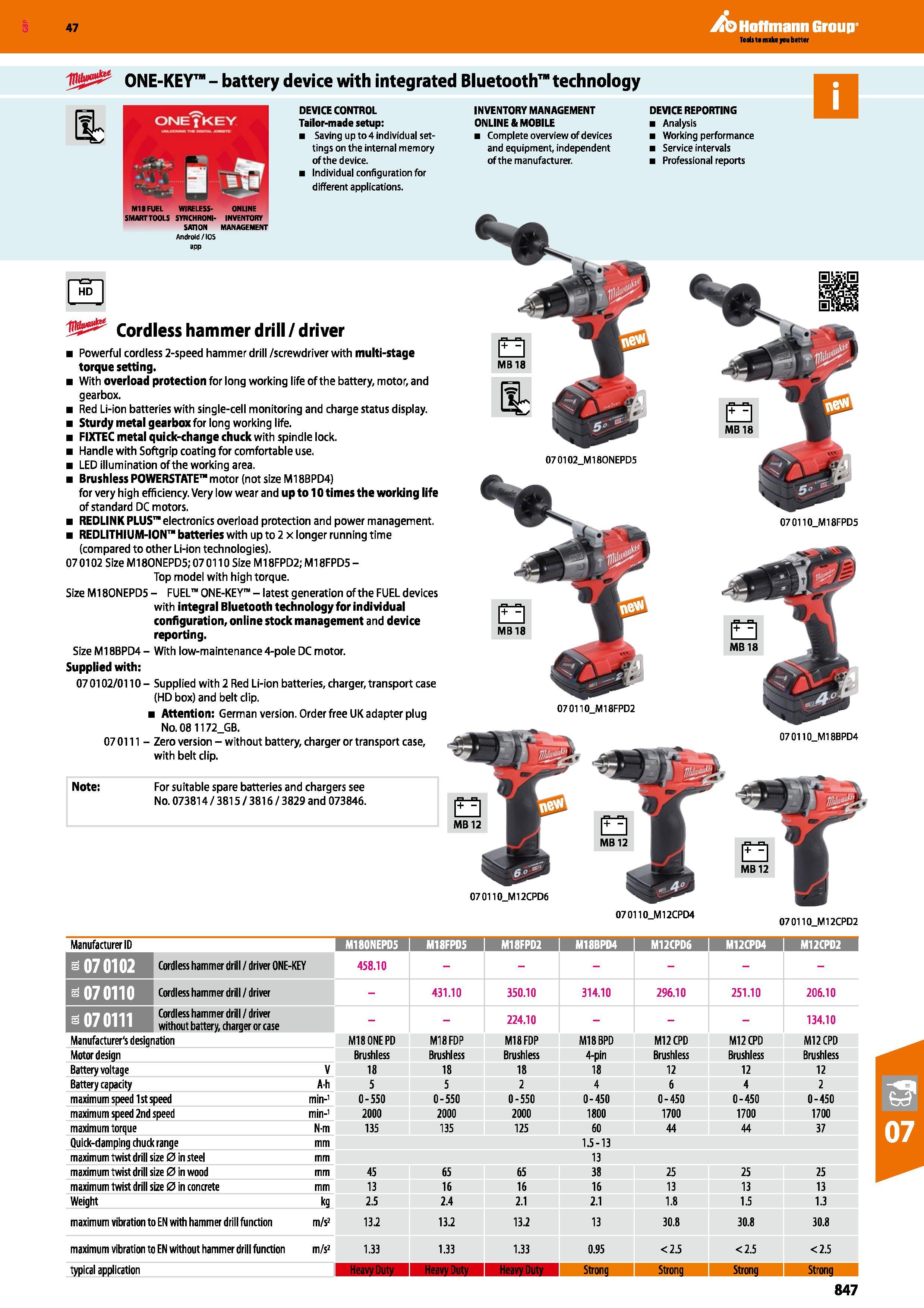

Hoffmann Group 47 ONE-KEY - battery device with integrated Bluetooth technology ONEjKEY DEVICE CONTROL Tailor-made setup: Saving up to4 individual settings on the internal memory of the device. Individual configuration for different applications. INVENTORY MANAGEMENT ONLINE & MOBILE Complete overview of devices and equipment, independent of the manufacturer. DEVICE REPORTING Analysis Working performance Service intervals Professional reports Note: For suitable spare batteries and chargers see No. 073814 / 3815 / 3816 / 3829 and 073846. MIS FUEL WIRELESS- ONLINE SMART TOOLS SYNCHRONI- INVENTORY SATI ON MANAGEMENT Android / IOS app 070110_M12CPD6 Cordless hammer drill/driver Powerful cordless 2-speed hammer drill /screwdriver with multi-stage torque setting. With overload protection for long working life of the battery, motor, and gearbox. Red Li-ion batteries with single-cell monitoring and charge status display. Sturdy metal gearbox for long working life. FIXTEC metal quick-change chuck with spindle lock. Handle with Softgrip coating for comfortable use. LED illumination of the working area. Brushless POWERSTATE motor (not size M18BPD4) for very high efficiency. Very low wear and up to 10 times the working life of standard DC motors. REDLINK PLUS"1 electronics overload protection and power management. REDLITHIUM-ION batteries with up to 2 x longer running time (compared to other Li-ion technologies). 07 0102 Size M180NEPD5; 07 0110 Size M18FPD2; M18FPD5 -Top model with high torque. Size M180NEPD5 - FUEL" ONE-KEY” - latest generation of the FUEL devices with integral Bluetooth technology for individual configuration, online stock management and device reporting. Size M18BPD4 - With low-maintenance 4-pole DC motor. Supplied with: 070102/0110- Supplied with 2 Red Li-ion batteries, charger, transport case (HD box) and belt clip. Attention: German version. Order free UK adapter plug No. 08 1172_GB. 07 0111 - Zero version - without battery, charger or transport case, with belt clip. 070110JVI18FPD5 070110_M18BPD4 07 0102_M180NEPD5 070110JVI18FPD2 070110JVI12CPD4 070110_M12CPD2 Manufacturer ID M180NEPD5 ; M18FPD5 ; M18FPD2 M18BPD4 i M12CPD6 i M12CPD4 i M12CPD2 1 Cordless hammer drill /driver ONE-KEY 458.10 jjimiUlB Cordless hammer drill/driver - 431.10 350.10 314.10 296.10 251.10 206.10 Cordless hammer drill /driver without battery, charger or case 224.10 134.10 Manufacturer's designation Ml8 ONEPD M18FDP M18FDP M18BPD M12CPD M12CPD M12CPD Motor design Brushless Brushless Brushless 4-pin Brushless Brushless Brushless Battery voltage V 18 18 18 18 12 12 12 Battery capacity Ah 5 5 2 4 6 4 2 maximum speed 1st speed min-1 0-550 0-550 0-550 0-450 0-450 0-450 0-450 maximum speed 2nd speed min-1 2000 2000 2000 1800 1700 1700 1700 maximum torque N-m 135 135 125 60 44 44 37 Quick-damping chuck range mm 1.5-13 maximum twist drill size 0 in steel mm 13 maximum twist drill size 0 in wood mm 45 65 65 38 25 25 25 maximum twist drill size 0 in concrete mm 13 16 16 16 13 13 13 Weight kg 2.5 2.4 2.1 2.1 1.8 1.5 1.3 maximum vibration to EN with hammer drill function m/s2 13.2 13.2 13.2 13 30.8 30.8 30.8 maximum vibration to EN without hammer drill function m/s2 1.33 1.33 1.33 0.95 <2.5 <2.5 <2.5 typical application Heavy Duty Strong Strong Strong Strong 847
