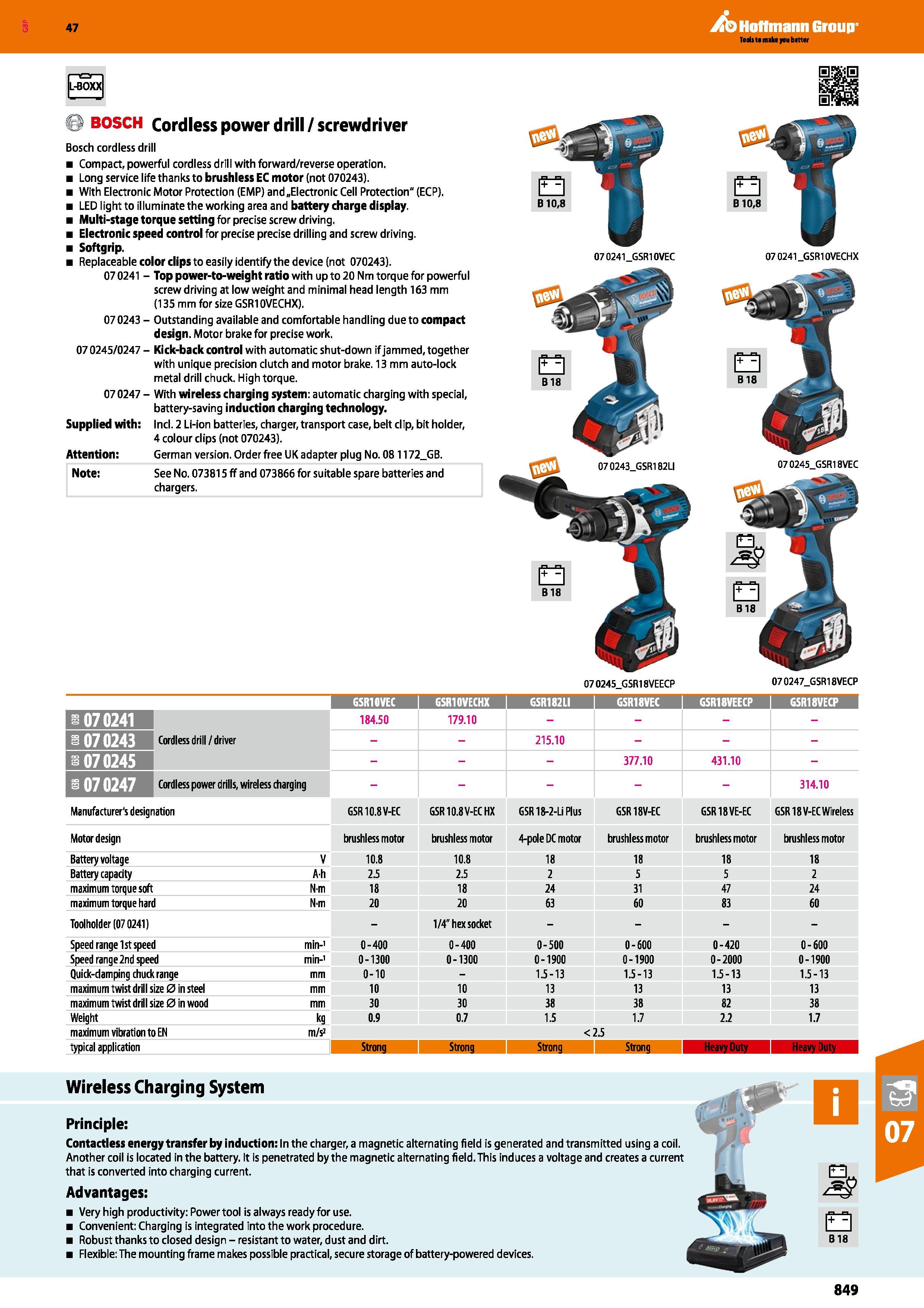

Hoffmann Group 47 l43QXx f > BOSCH Cordless power drill/screwdriver Bosch cordless drill Compact, powerful cordless drill with forward/reverse operation. Long service life thanks to brushless EC motor (not 070243). With Electronic Motor Protection (EMP) and„Electronic Cell Protection" (ECP). LED light to illuminate the working area and battery charge display. Multi-stage torque setting for precise screw driving. Electronic speed control for precise precise drilling and screw driving. Softgrip. Replaceable color clips to easily identify the device (not 070243). 07 0241 - Top power-to-weight ratio with up to 20 Nm torque for powerful screw driving at low weight and minimal head length 163 mm (135 mm for size GSR10VECHX). 07 0243 - Outstanding available and comfortable handling due to compact design. Motor brake for precise work. 07 0245/0247 - Kick-back control with automatic shut-down if jammed, together with unique precision clutch and motor brake. 13 mm auto-lock metal drill chuck. High torque. 07 0247 - With wireless charging system: automatic charging with special, battery-saving induction charging technology. Supplied with: Ind. 2 Li-ion batteries, charger, transport case, belt clip, bit holder, 4 colour clips (not 070243). Attention: German version. Order free UK adapter plug No. 081172_GB. Note: See No. 073815 ff and 073866 for suitable spare batteries and chargers. 07 0241_GSR10VEC 07 0241 _GSR10VECHX 070245 GSR18VEECP 070247_GSR18VECP 07 0245_G5R18VEC GSR10VEC i GSR10VECHX GSR182LI GSR18VEC i GSR18VEECP GSR18VECP I 070241 184.50 179.10 - s 070243 Cordless drill /driver 215.10 3 070245 377.10 431.10 - 1 070247 Cordless power drills, wireless charging 314.10 Manufacturer's designation GSR 10.8V-EC GSR10.8V-ECHX GSR 18-2-Li Plus GSR18V-EC GSR18VE-EC GSR 18V-EC Wireless Motor design brushless motor brushless motor 4-pole DC motor brushless motor brushless motor brushless motor Battery voltage V 10.8 10.8 18 18 18 18 Battery capacity Ah 2.5 2.5 2 5 5 2 maximum torque soft Nm 18 18 24 31 47 24 maximum torque hard N'tn 20 20 63 60 83 60 Toolholder (070241) - 1/4" hex socket - Speed range 1st speed min-1 0-400 0-400 0-500 0-600 0-420 0-600 Speed range 2nd speed min-1 0-1300 0-1300 0-1900 0-1900 0-2000 0-1900 Quick-damping chuck range mm 0-10 - 1.5-13 1.5-13 1.5-13 1.5-13 maximum twist drill size 0 in steel mm 10 10 13 13 13 13 maximum twist drill size 0 in wood mm 30 30 38 38 82 38 Weight kg 0.9 0.7 1.5 1.7 2.2 1.7 maximum vibration to EN m/s2 <2.5 typical application Strong Strong Strong Strong Heavy Duty Wireless Charging System Principle: Contactless energy transfer by induction: In the charger, a magnetic alternating field is generated and transmitted using a coil. Another coil is located in the battery. It is penetrated by the magnetic alternating field. This induces a voltage and creates a current that is converted into charging current. Advantages: Very high productivity: Power tool is always ready for use. Convenient: Charging is integrated into the work procedure. Robust thanks to closed design - resistant to water, dust and dirt. Flexible: The mounting frame makes possible practical, secure storage of battery-powered devices. E3 B18 849
