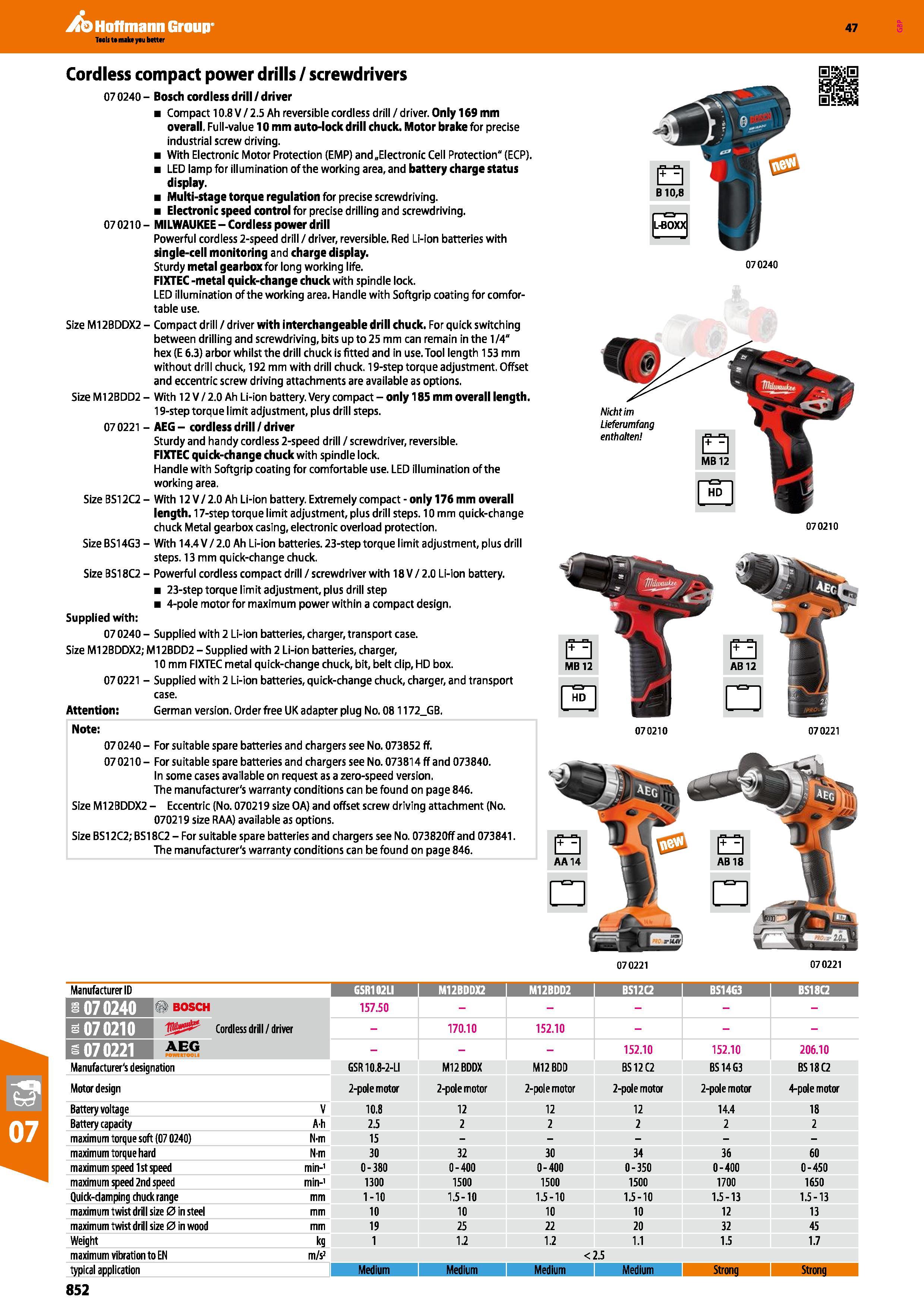

Hoffmann Group 47 Cordless compact power drills / screwdrivers 07 0240 - Bosch cordless drill / driver Compact 10.8 V / 2.5 Ah reversible cordless drill / driver. Only 169 mm overall. Full-value 10 mm auto-lock drill chuck. Motor brake for precise industrial screw driving. With Electronic Motor Protection (EMP) and„Electronic Cell Protection" (ECP). LED lamp for illumination of the working area, and battery charge status display. Multi-stage torque regulation for precise screwdriving. Electronic speed control for precise drilling and screwdriving. 070210- MILWAUKEE-Cordless power drill Powerful cordless 2-speed drill / driver, reversible. Red Li-ion batteries with single-cell monitoring and charge display. Sturdy metal gearbox for long working life. FIXTEC -metal quick-change chuck with spindle lock. LED illumination of the working area. Handle with Softgrip coating for comfortable use. Size M12BDDX2 - Compact drill / driver with interchangeable drill chuck. For quick switching between drilling and screwdriving, bits up to 25 mm can remain in the 1/4" hex (E 6.3) arbor whilst the drill chuck is fitted and in use. Tool length 153 mm without drill chuck, 192 mm with drill chuck. 19-step torque adjustment. Offset and eccentric screw driving attachments are available as options. SizeM12BDD2 - With 12 V/2.0 Ah Li-ion battery. Very compact -only 185 mm overall length. 19-step torque limit adjustment, plus drill steps. 070221 - AEG - cordless drill/driver Sturdy and handy cordless 2-speed drill / screwdriver, reversible. FIXTEC quick-change chuck with spindle lock. Handle with Softgrip coating for comfortable use. LED illumination of the working area. Size BS12C2- With 12 V/2.0 Ah Li-ion battery. Extremely compact-only 176 mm overall length. 17-step torque limit adjustment, plus drill steps. 10 mm quick-change chuck Metal gearbox casing, electronic overload protection. SizeBS14G3 - With 14.4 V/2.0 Ah Li-ion batteries. 23-step torque limit adjustment, plus drill steps. 13 mm quick-change chuck. Size BS18C2 - Powerful cordless compact drill /screwdriver with 18 V/2.0 Li-ion battery. 23-step torque limit adjustment, plus drill step 4-pole motor for maximum power within a compact design. Supplied with: 07 0240 - Supplied with 2 Li-ion batteries, charger, transport case. Size M12BDDX2; M12BDD2 - Supplied with 2 Li-ion batteries, charger, 10 mm FIXTEC metal quick-change chuck, bit, belt clip, HD box. 07 0221 - Supplied with 2 Li-ion batteries, quick-change chuck, charger, and transport case. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: 07 0240 - For suitable spare batteries and chargers see No. 073852 ff. 07 0210 - For suitable spare batteries and chargers see No. 073814 ff and 073840. In some cases available on request as a zero-speed version. The manufacturer's warranty conditions can be found on page 846. Size M12BDDX2 - Eccentric (No. 070219 size OA) and offset screw driving attachment (No. 070219 size RAA) available as options. Size BS12C2; BS18C2 - For suitable spare batteries and chargers see No. 073820ff and 073841. The manufacturer's warranty conditions can be found on page 846. 070210 MB 12 070210 070221 070221 070221 Manufacturer ID fj> BOSCH 13582 Cordless drill/driver AEG Manufacturer's designation Motor design Battery voltage Battery capacity maximum torgue soft (07 0240) maximum torgue hard maximum speed 1st speed maximum speed 2nd speed Quick-damping chuck range maximum twist drill size 0 in steel maximum twist drill size 0 in wood Weight maximum vibration to EN typical application 852 v Ah N’tn Nm min-1 min-1 mm kg m/s2 157.50 GSR 10.8-2-LI 2-pole motor 10.8 2.5 15 30 0-380 1300 1-10 10 19 1 M12BDDX2 170.10 M12BDDX 2-pole motor 12 32 0-400 1500 1.5-10 10 25 1.2 152.10 M12BDD 2-pole motor 12 30 0-400 1500 1.5-10 10 22 1.2 152.10 BS12C2 2-pole motor 12 2 34 0-350 1500 1.5-10 10 20 1.1 <2.5 Medium Medium Medium Medium 152.10 BS14G3 2-pole motor 14.4 36 0-400 1700 1.5-13 12 32 1.5 Strong 206.10 BS18C2 4-pole motor 18 2 60 0-450 1650 1.5-13 13 45 1.7 Strong 070240 Nichtim Lieferumfang enthalten £3 MB 12 H AB 12
