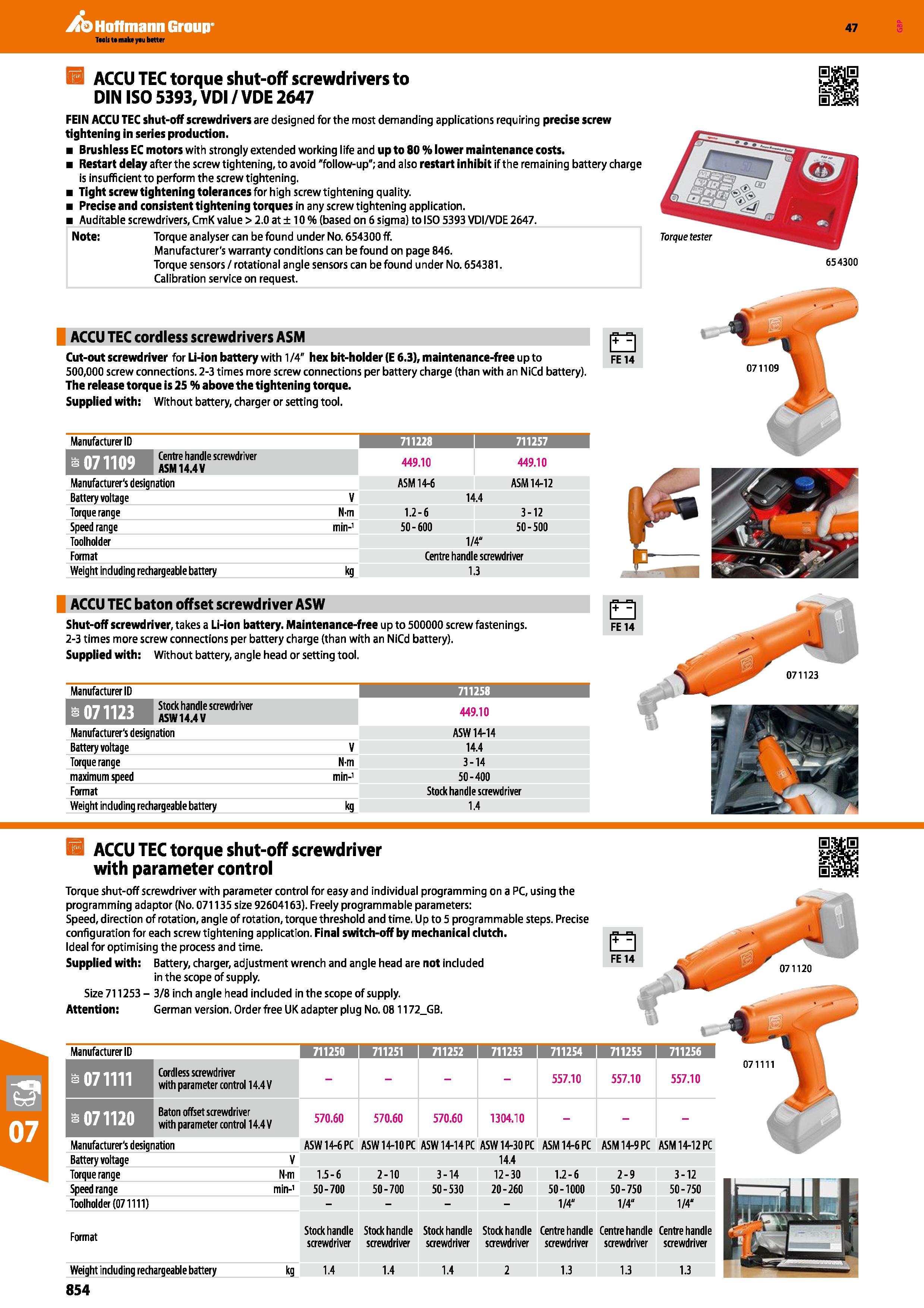

Hoffmann Group 47 IS ACCU TEC torque shut-off screwdrivers to DIN ISO 5393, VDI / VDE 2647 FEIN ACCU TEC shut-off screwdrivers are designed for the most demanding applications requiring precise screw tightening in series production. Brushless EC motors with strongly extended working life and up to 80 % lower maintenance costs. Restart delay after the screw tightening, to avoid "follow-up"; and also restart inhibit if the remaining battery charge is insufficient to perform the screw tightening. Tight screw tightening tolerances for high screw tightening quality. Precise and consistent tightening torques in any screw tightening application. Auditable screwdrivers, CmK value > 2.0 at ± 10 % (based on 6 sigma) to ISO 5393 VDI/VDE 2647. Note: Torque analyser can be found under No. 654300 ff. Manufacturer's warranty conditions can be found on page 846. Torque sensors / rotational angle sensors can be found under No. 654381. Calibration service on request. Torque tester 654300 ACCU TEC cordless screwdrivers ASM Cut-out screwdriver for Li-ion battery with 1/4" hex bit-holder(E 6.3), maintenance-free up to 500,000 screw connections. 2-3 times more screw connections per battery charge (than with an NiCd battery). The release torque is 25 % above the tightening torque. Supplied with: Without battery, charger or setting tool. E3 FE 14 071109 Manufacturer ID 711228 I 711257 1 Centre handle screwdriver asm 14.4 V 449.10 449.10 Manufacturer's designation ASM 14-6 ASM 14-12 Battery voltage V 14.4 Torgue range N'in 1.2-6 3-12 Speed range min-1 50-600 50-500 Toolholder Format Weight induding rechargeable battery 1/4" Centre handle screwdriver 1.3 ACCU TEC baton offset screwdriver ASW Shut-off screwdriver, takes a Li-ion battery. Maintenance-free up to 500000 screw fastenings. 2-3 times more screw connections per battery charge (than with an NiCd battery). Supplied with: Without battery, angle head or setting tool. E3 FE 14 Manufacturer ID 711258 1 EVffVRVH Stock handle screwdriver ASW 14.4V 449.10 Manufacturer's designation ASW 14-14 Battery voltage V 14.4 Torgue range N-m 3-14 maximum speed min-1 50-400 Format Stock handle screwdriver Weight including rechargeable battery kg 1.4 H ACCU TEC torque shut-off screwdriver with parameter control Torque shut-off screwdriver with parameter control for easy and individual programming on a PC, using the programming adaptor (No. 071135 size 92604163). Freely programmable parameters: Speed, direction of rotation, angle of rotation, torque threshold and time. Up to 5 programmable steps. Precise configuration for each screw tightening application. Final switch-off by mechanical clutch. Ideal for optimising the process and time. Supplied with: Battery, charger, adjustment wrench and angle head are not included in the scope of supply. Size 711253 - 3/8 inch angle head included in the scope of supply. Attention: German version. Order free UK adapter plug No. 081172_GB. FE 14 Manufacturer ID 711250 1 711251 I 711252 I 711253 1 711254 I 711255 1 711256 I a 071111 Cordless screwdriver with parameter control 14.4 V - 557.10 557.10 557.10 071120 Baton offset screwdriver with parameter control 14.4 V 570.60 570.60 570.60 1304.10 Manufacturer's designation ASW 14-6 PC ASW 14-10 PC ASW 14-14 PC ASW 14-30 PC ASM 14-6 PC ASM 14-9 PC ASM 14-12 PC Battery voltage V 14.4 Torgue range Nm 1.5-6 2-10 3-14 12-30 1.2-6 2-9 3-12 Speed range min-1 50-700 50-700 50-530 20-260 50-1000 50-750 50-750 Toolholder (071111) - 1/4" 1/4“ 1/4“ Format Stock handle screwdriver Stock handle screwdriver Stock handle screwdriver Stock handle saewdriver Centre handle screwdriver Centre handle screwdriver Centre handle screwdriver Weight including rechargeable battery kg 1.4 1.4 1.4 2 1.3 1.3 1.3 854
