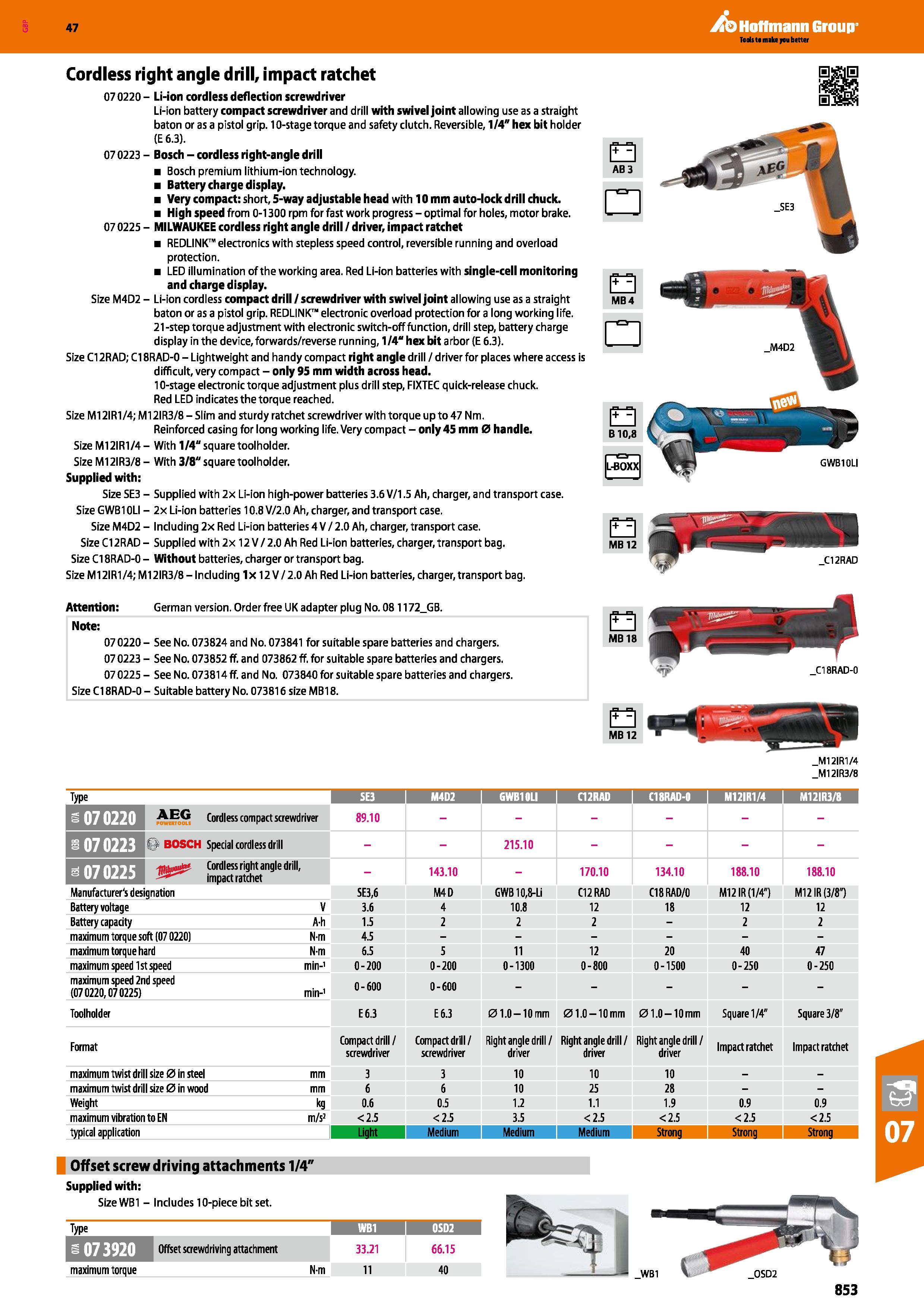

Hoffmann Group 47 Cordless right angle drill, impact ratchet 07 0220 - Li-ion cordless deflection screwdriver Li-ion battery compact screwdriver and drill with swivel joint allowing use as a straight baton or as a pistol grip. 10-stage torque and safety clutch. Reversible, 1/4" hex bit holder (E 6.3). 07 0223 - Bosch - cordless right-angle drill Bosch premium lithium-ion technology. Battery charge display. Very compact: short, 5-way adjustable head with 10 mm auto-lock drill chuck. High speed from 0-1300 rpm for fast work progress - optimal for holes, motor brake. 07 0225 - MILWAUKEE cordless right angle drill / driver, impact ratchet REDLINK electronics with stepless speed control, reversible running and overload protection. LED illumination of the working area. Red Li-ion batteries with single-cell monitoring and charge display. Size M4D2 - Li-ion cordless compact drill /screwdriver with swivel joint allowing use as a straight baton or as a pistol grip. REDLINK electronic overload protection for a long working life. 21 -step torque adjustment with electronic switch-off function, drill step, battery charge display in the device,forwards/reverse running, 1/4" hex bit arbor (E 6.3). Size Cl 2RAD; Cl 8RAD-0 - Lightweight and handy compact right angle drill / driver for places where access is difficult, very compact - only 95 mm width across head. 10-stage electronic torque adjustment plus drill step, FIXTEC quick-release chuck. Red LED indicates the torque reached. Size Ml 2IR1/4; Ml 2IR3/8 - Slim and sturdy ratchet screwdriver with torque up to 47 Nm. Reinforced casing for long working life. Very compact - only 45 mm 0 handle. Size Ml 2IR1/4 With 1/4" square toolholder. Size M12IR3/8 - With 3/8" square toolholder. Supplied with: SizeSE3 - Supplied with 2x Li-ion high-power batteries 3.6 V/1.5 Ah, charger, and transport case. Size GWB10LI - 2x Li-ion batteries 10.8 V/2.0 Ah, charger, and transport case. Size M4D2 - Including 2x Red Li-ion batteries 4 V / 2.0 Ah, charger, transport case. Size C12RAD - Supplied with 2x 12 V / 2.0 Ah Red Li-ion batteries, charger, transport bag. Size Cl 8RAD-0 - Without batteries, charger or transport bag. Size M12IR1/4; M12IR3/8 Including Ix 12 V/2.0 Ah Red Li-ion batteries, charger, transport bag. Attention: German version. Order free UK adapter plug No. 081172_GB. Note: 07 0220 - See No. 073824 and No. 073841 for suitable spare batteries and chargers. 07 0223 - See No. 073852 ff. and 073862 ff. for suitable spare batteries and chargers. 07 0225 - See No. 073814 ff. and No. 073840 for suitable spare batteries and chargers. Size C18RAD-0 - Suitable battery No. 073816 size MB18. MB 12 MB 12 GWB10LI Type SE3 GWB10LI C12RAD i C18RAD-0 i M12IR1/4 M12IR3/8 pc 070220 AEG Cordless compact screwdriver 89.10 s 070223 ft' BOSCH Special cordless drill 215.10 - s 070225 Cordless right angle drill, impact ratchet - 143.10 - 170.10 134.10 188.10 188.10 Manufacturer's designation SE3,6 M4D GWB 10,8-Li Cl 2 RAD C18 RAD/0 M12IR (1/4") M12 IR (3/8") Battery voltage V 3.6 4 10.8 12 18 12 12 Battery capacity A-h 1.5 2 2 2 - 2 2 maximum torque soft (07 0220) N-m 4.5 maximum torque hard N-m 6.5 5 11 12 20 40 47 maximum speed 1 st speed min-1 0-200 0-200 0-1300 0-800 0-1500 0-250 0-250 maximum speed 2nd speed (070220,070225) min-1 0-600 0-600 Toolholder E6.3 E6.3 01.0-10 mm 01.0-10 mm 01.O-1Omm Square 1/4" Square 3/8" Format Compact drill/ screwdriver Com pact drill/ screwdriver Right angle drill/ driver Right angle drill/ driver Right angle drill/ driver Impact ratchet Impact ratchet maximum twist drill size 0 in steel mm 3 3 10 10 10 maximum twist drill size 0 in wood mm 6 6 10 25 28 Weight kg 0.6 0.5 1.2 1.1 1.9 0.9 0.9 maximum vibration to EN m/s2 <2.5 <2.5 3.5 <2.5 <2.5 <2.5 <2.5 typical application Medium Medium Medium Strong Strong Strong Offset screw driving attachments 1/4" Supplied with: SizeWBI - Includes 10-piece bit set. Type 1 WBl 0SD2 U /Jcy/7 W Offsetscrewdrivingattachment 33.21 66.15 maximum torque N-m 11 40 WBl .OSD2 853
