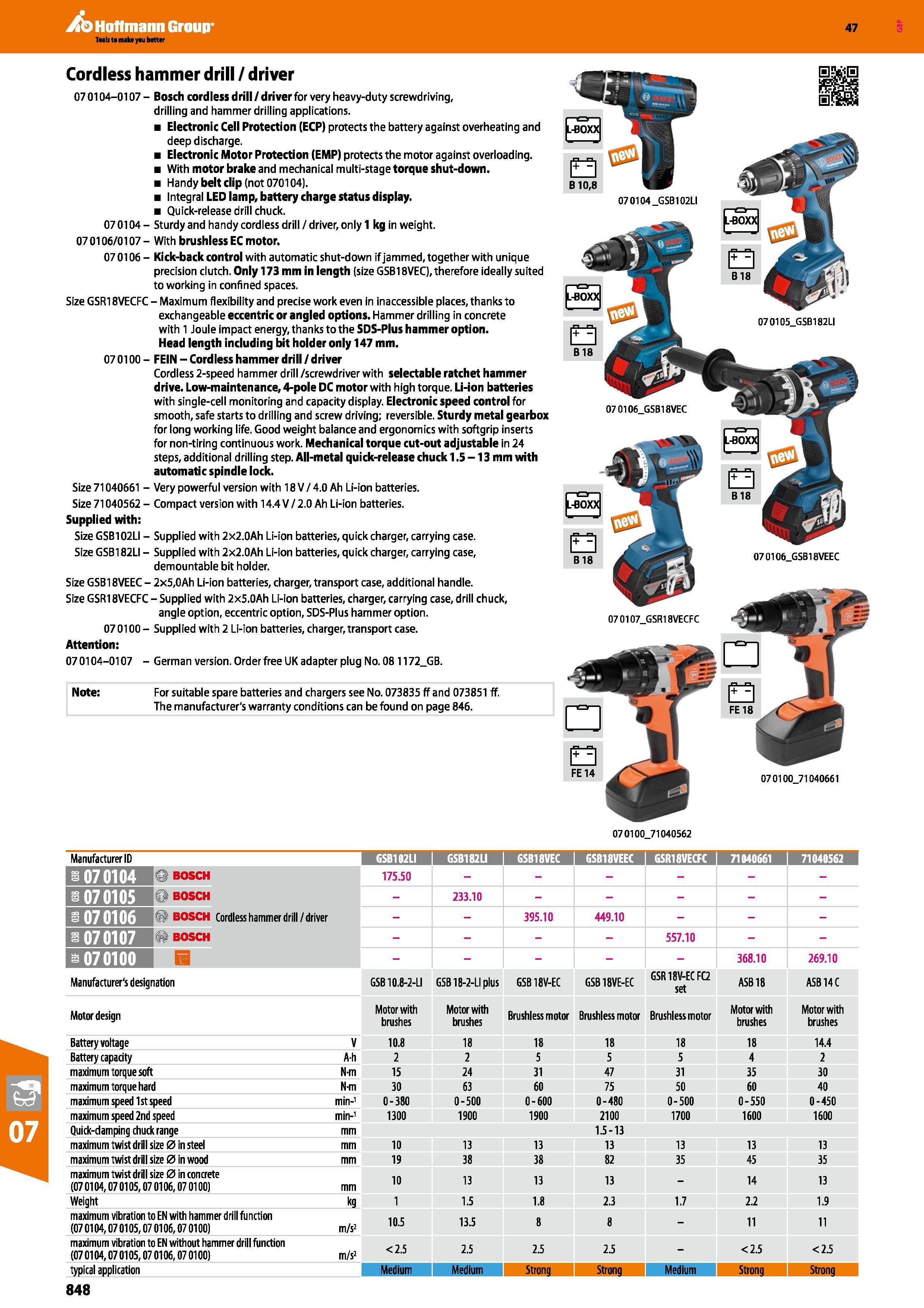

Cordless hammer drill / driver 07 0104-0107 - Bosch cordless drill / driver for very heavy-duty screwdriving, drilling and hammer drilling applications. Electronic Cell Protection (ECP) protects the battery against overheating and deep discharge. Electronic Motor Protection (EMP) protects the motor against overloading. With motor brake and mechanical multi-stage torque shut-down. Handy belt clip (not 070104). Integral LED lamp, battery charge status display. Quick-release drill chuck. 070104- Sturdy and handy cordless drill/driver, only 1 kg in weight. 070106/0107 - With brushless EC motor. 07 0106 - Kick-back control with automatic shut-down if jammed, together with unique precision clutch. Only 173 mm in length (size GSB18VEC), therefore ideally suited to working in confined spaces. Size GSR18VECFC - Maximum flexibility and precise work even in inaccessible places, thanks to exchangeable eccentric or angled options. Hammer drilling in concrete with 1 Joule impact energy, thanks to the SDS-Plus hammer option. Head length including bit holder only 147 mm. 07 0100 - FEIN - Cordless hammer drill / driver Cordless 2-speed hammer drill /screwdriver with selectable ratchet hammer drive. Low-maintenance, 4-pole DC motor with high torque. Li-ion batteries with single-cell monitoring and capacity display. Electronic speed control for smooth, safe starts to drilling and screw driving; reversible. Sturdy metal gearbox for long working life. Good weight balance and ergonomics with softgrip inserts for non-tiring continuous work. Mechanical torque cut-out adjustable in 24 steps, additional drilling step. All-metal quick-release chuck 1.5 -13 mm with automatic spindle lock. Size 71040661 - Very powerful version with 18 V / 4.0 Ah Li-ion batteries. Size 71040562- Compact version with 14.4 V/2.0 Ah Li-ion batteries. Supplied with: Size GSB102LI - Supplied with 2x2.0Ah Li-ion batteries, quick charger, carrying case. SizeGSB182LI - Supplied with 2x2.0Ah Li-ion batteries, quick charger, carrying case, demountable bit holder. SizeGSB18VEEC- 2x5,0Ah Li-ion batteries, charger, transport case, additional handle. Size GSR18VECFC - Supplied with 2x5.0Ah Li-ion batteries, charger, carrying case, drill chuck, angle option, eccentric option, SDS-Plus hammer option. 070100- Supplied with 2 Li-ion batteries, charger, transport case. Attention: 070104-0107 - German version. Order free UK adapter plug No. 081172_GB. Note: For suitable spare batteries and chargers see No. 073835 ff and 073851 ff. The manufacturer's warranty conditions can be found on page 846. 070100 71040562 Manufacturer ID GSB102LI I GSB182LI I GSB18VEC I GSB18VEEC 1 GSR18VECFC I 71040661 I 71040562 1 s 070104 BOSCH 175.50 s 070105 BOSCH - 233.10 s 070106 BOSCH Cordless hammer drill/driver 395.10 449.10 M 070107 BOSCH - 557.10 s 070100 n 368.10 269.10 Manufacturer's designation GSB 10.8-2-LI GSB 18-2-LI plus GSB18V-EC GSB18VE-EC GSR 18V-EC FC2 set ASB18 ASB14C Motor design Motor with brushes Motor with brushes Brushless motor Brushless motor Brushless motor Motor with brushes Motor with brushes Battery voltage V 10.8 18 18 18 18 18 14.4 Battery capacity A-h 2 2 5 5 5 4 2 maximum torque soft N-m 15 24 31 47 31 35 30 maximum torque hard N-m 30 63 60 75 50 60 40 maximum speed 1st speed min-1 0-380 0-500 0-600 0-480 0-500 0-550 0-450 maximum speed 2nd speed min-1 1300 1900 1900 2100 1700 1600 1600 Quick-damping chuck range mm 1.5-13 maximum twist drill size 0 in steel mm 10 13 13 13 13 13 13 maximum twist drill size 0 in wood mm 19 38 38 82 35 45 35 maximum twist drill size 0 in concrete (070104,070105,070106,070100) mm 10 13 13 13 - 14 13 Weight kg 1 1.5 1.8 2.3 1.7 2.2 1.9 maximum vibration to EN with hammer drill function (070104,070105,070106,070100) m/s2 10.5 13.5 8 8 - 11 11 maximum vibration to EN without hammer drill function (070104,070105,070106,070100) m/s2 <2.5 2.5 2.5 25 - <2.5 <2.5 typical application Medium Medium Strong Strong Medium Strong Strong 070104_GSB102LI 070105_GSB182LI 07 0106_G5B18VEC 07 0106_GSB18VEEC 07 0107_GSR18VECFC 07 0100_71040661 Hoffmann Group 47 848
