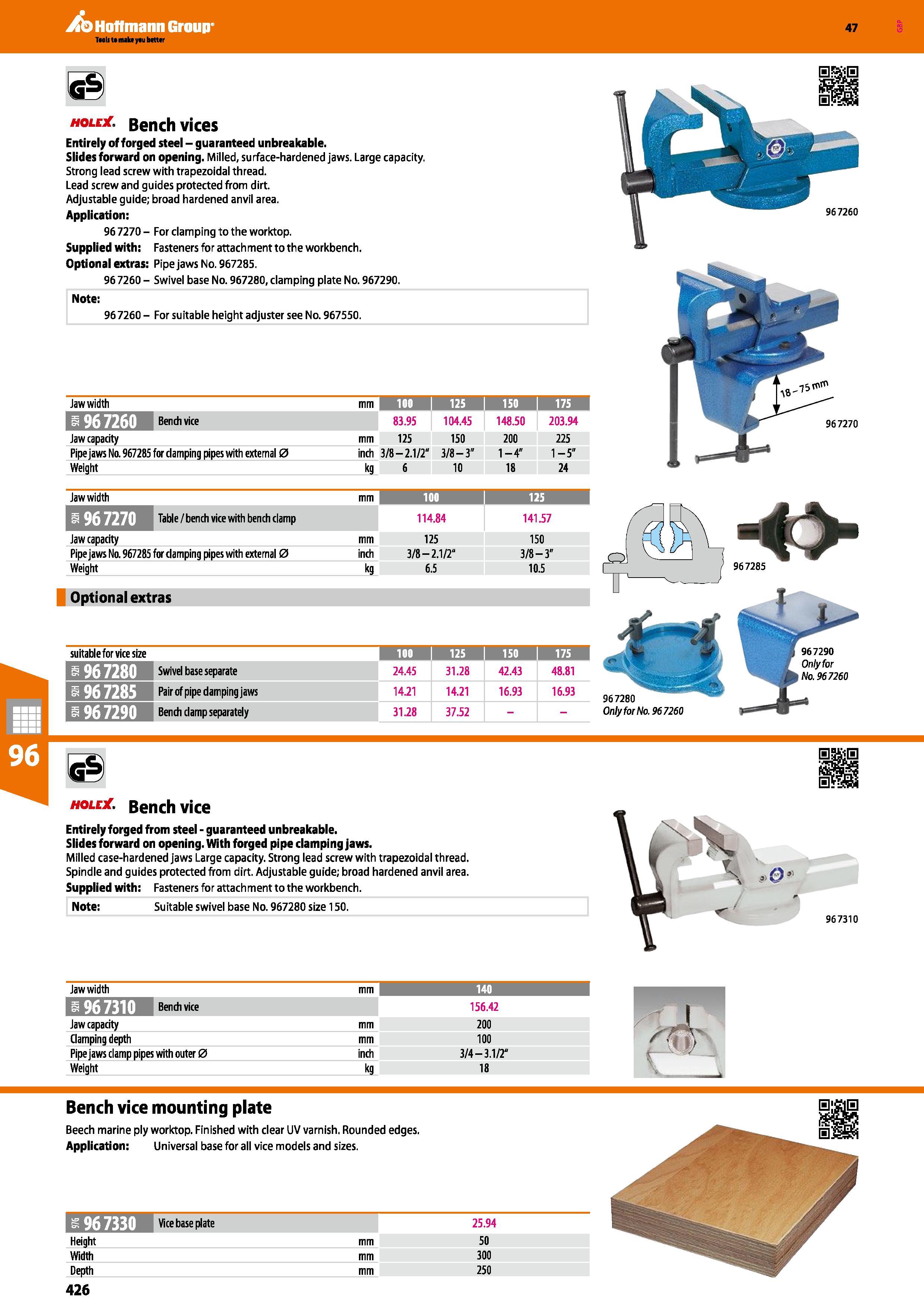

hole . Bench vices Entirely of forged steel - guaranteed unbreakable. Slides forward on opening. Milled, surface-hardened jaws. Large capacity. Strong lead screw with trapezoidal thread. Lead screw and guides protected from dirt. Adjustable guide; broad hardened anvil area. Application: 96 7270 - For clamping to the worktop. Supplied with: Fasteners for attach ment to the workbench. Optional extras: Pipe jaws No. 967285. 96 7260 - Swivel base No. 967280, clamping plate No. 967290. Note: 96 7260 - For suitable height adjuster see No. 967550. Jaw width mm I n i 125 i 150 I 175 Is 96 7260 83.95 104.45 148.50 203.94 Jaw capacity mm 125 150 200 225 Pipe jaws Na 967285 for clamping pipes with external 0 inch 3/8-2.1/2" 3/8-3" 1-4" 1-5" Weight kg 6 10 18 24 Jaw width mm 100 i 125 Table / bench vice with bench clamp 114.84 141.57 Jaw capacity mm 125 150 Pipe jaws Na 967285 for clamping pipes with external 0 inch 3/8-2.1/2“ 3/8-3" Weight kg 6.5 10.5 Optional extras suitable for vice size 100 I 125 150 I 175 1 Swivel base separate 24.45 31.28 42.43 48.81 s 96 7285 Pair of pipe damping jaws 14.21 14.21 16.93 16.93 s 96 7290 Bench clamp separately 31.28 37.52 - - hole . Bench vice Entirely forged from steel - guaranteed unbreakable. Slides forward on opening. With forged pipe clamping jaws. Milled case-hardened jaws Large capacity. Strong lead screw with trapezoidal thread. Spindle and guides protected from dirt. Adjustable guide; broad hardened anvil area. Supplied with: Fasteners for attach ment to the workbench. Note: Suitable swivel base No. 967280 size 150. >0‘ 967310 Jaw width mm 140 i In967310 mm 156.42 Jaw capacity mm 200 Clamping depth mm 100 Pipe jaws clamp pipes with outer 0 inch 3/4-3.1/2" Weight kg 18 Bench vice mounting plate Beech marine ply worktop. Finished with clear UV varnish. Rounded edges. Application: Universal base for all vice models and sizes. 1 s 96 7330 IWflHfllM 25.94 Height mm 50 Width mm 300 Depth mm 250 Hoffmann Group 967260 967270 967285 967280 Only for No. 967260 967290 Only for No. 967260
