427 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.427

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 427 0427 ENG Lab2u

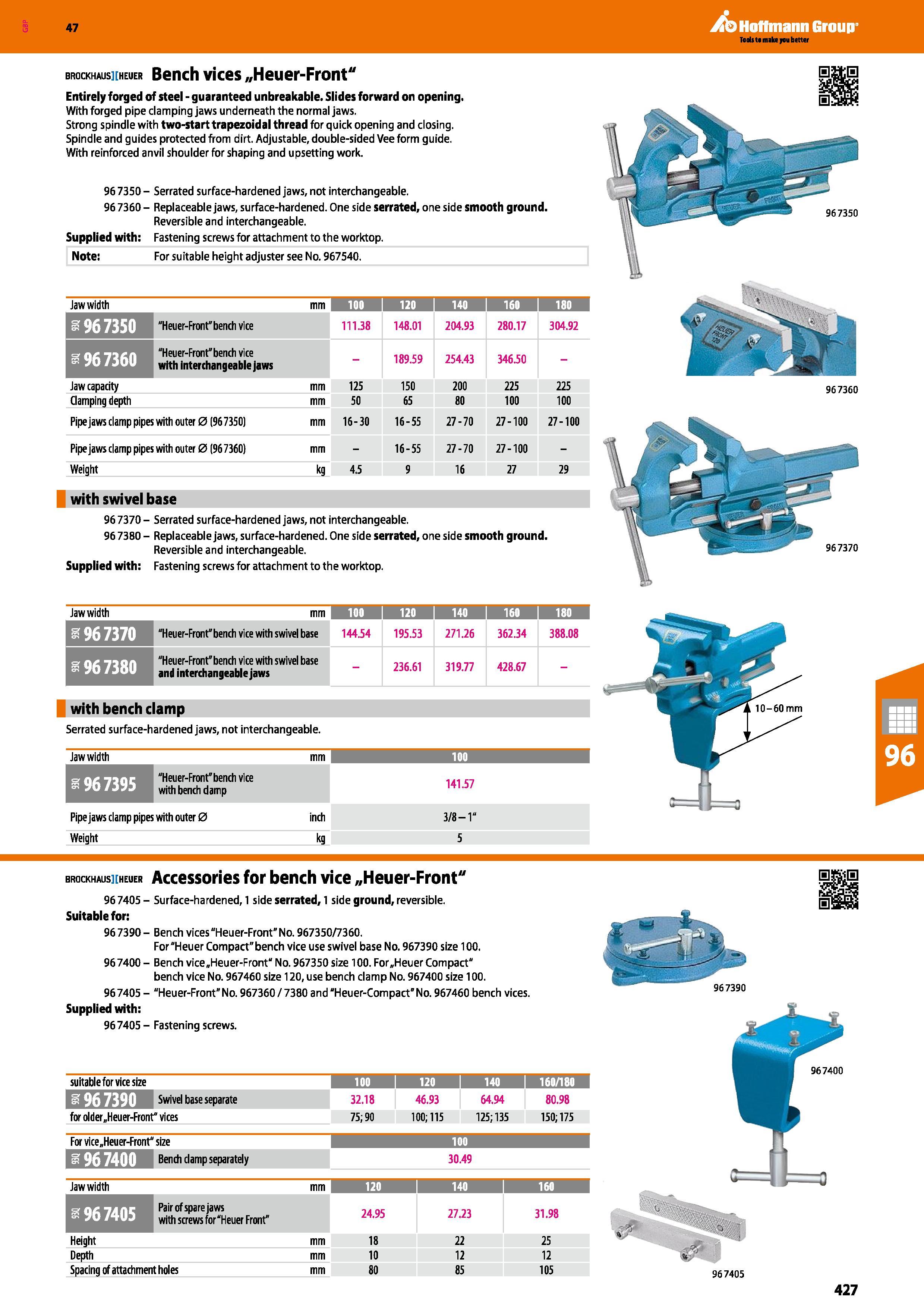

Hoffmann Group 47 brockhaushheuer Bench vices „Heuer-Front" Entirely forged of steel - guaranteed unbreakable. Slides forward on opening. With forged pipe clamping jaws underneath the normal jaws. Strong spindle with two-start trapezoidal thread for quick opening and closing. Spindle and guides protected from dirt. Adjustable, double-sided Vee form guide. With reinforced anvil shoulder for shaping and upsetting work. 96 7350 - Serrated surface-hardened jaws, not interchangeable. 96 7360 - Replaceable jaws, surface-hardened. One side serrated, one side smooth ground. Reversible and interchangeable. Supplied with: Fastening screws for attachment to the worktop. Note: For suitable height adjuster see No. 967540. Jaw width mm 100 i 120 i 140 i 160 180 "Heuer-Front" bench vice 111.38 148.01 204.93 280.17 304.92 “Heuer-Front" bench vice with interchangeable jaws - 189.59 254.43 346.50 - Jaw capacity mm 125 150 200 225 225 Clamping depth mm 50 65 80 100 100 Pipe jaws clamp pipes with outer 0 (96 7350) mm 16-30 16-55 27-70 27-100 27-100 Pipe jaws clamp pipes with outer 0 (96 7360) mm - 16-55 27-70 27-100 - Weight kg 4.5 9 16 27 29 with swivel base 96 7370 - Serrated surface-hardened jaws, not interchangeable. 96 7380 - Replaceable jaws, surface-hardened. One side serrated, one side smooth ground. Reversible and interchangeable. Supplied with: Fastening screws for attachment to the worktop. 967360 Jaw width mm 100 i 120 i 140 i 160 180 a 96 7370 “Heuer-Front" bench vice with swivel base 144.54 195.53 271.26 362.34 388.08 wM “Heuer-Front" bench vice with swivel base and interchangeable jaws - 236.61 319.77 428.67 - with bench clamp Serrated surface-hardened jaws, not interchangeable. Jaw width mm 100 1 967 “Heuer-Front" bench vice with bench damp 141.57 Pipe jaws clamp pipes with outer 0 inch 3/8-1“ Weight kg 5 brockhaushheuer Accessories for bench vice „Heuer-Front" 96 7405 - Surface-hardened, 1 side serrated, 1 side ground, reversible. Suitable for: 96 7390 - Bench vices "Heuer-Front" No. 967350/7360. For"Heuer Compact" bench vice use swivel base No. 967390 size 100. 96 7400 - Bench vice„Heuer-Front" No. 967350 size 100. For„Heuer Compact" bench vice No. 967460 size 120, use bench clamp No. 967400 size 100. 96 7405 - "Heuer-Front" No. 967360 / 7380 and "Heuer-Compact" No. 967460 bench vices. Supplied with: 967405 - Fastening screws. Hi 967390 suitable for vice size HH ioo 1 120 ; 140 1 160/180 I k& iViL ll Swivel base separate 32.18 46.93 64.94 80.98 for older„Heuer-Front" vices 75; 90 100;115 125;135 For vice„Heuer-Front" size Bench clamp separately 30.49 150; 175 Jaw width mm 120 I 140 I 1M 1 PH Pair of spare jaws with screws for“Heuer Front" 24.95 27.23 31.98 Height mm 18 22 25 Depth mm 10 12 12 Spacing of attachment holes mm 80 85 105 967370 967400 967405 427
