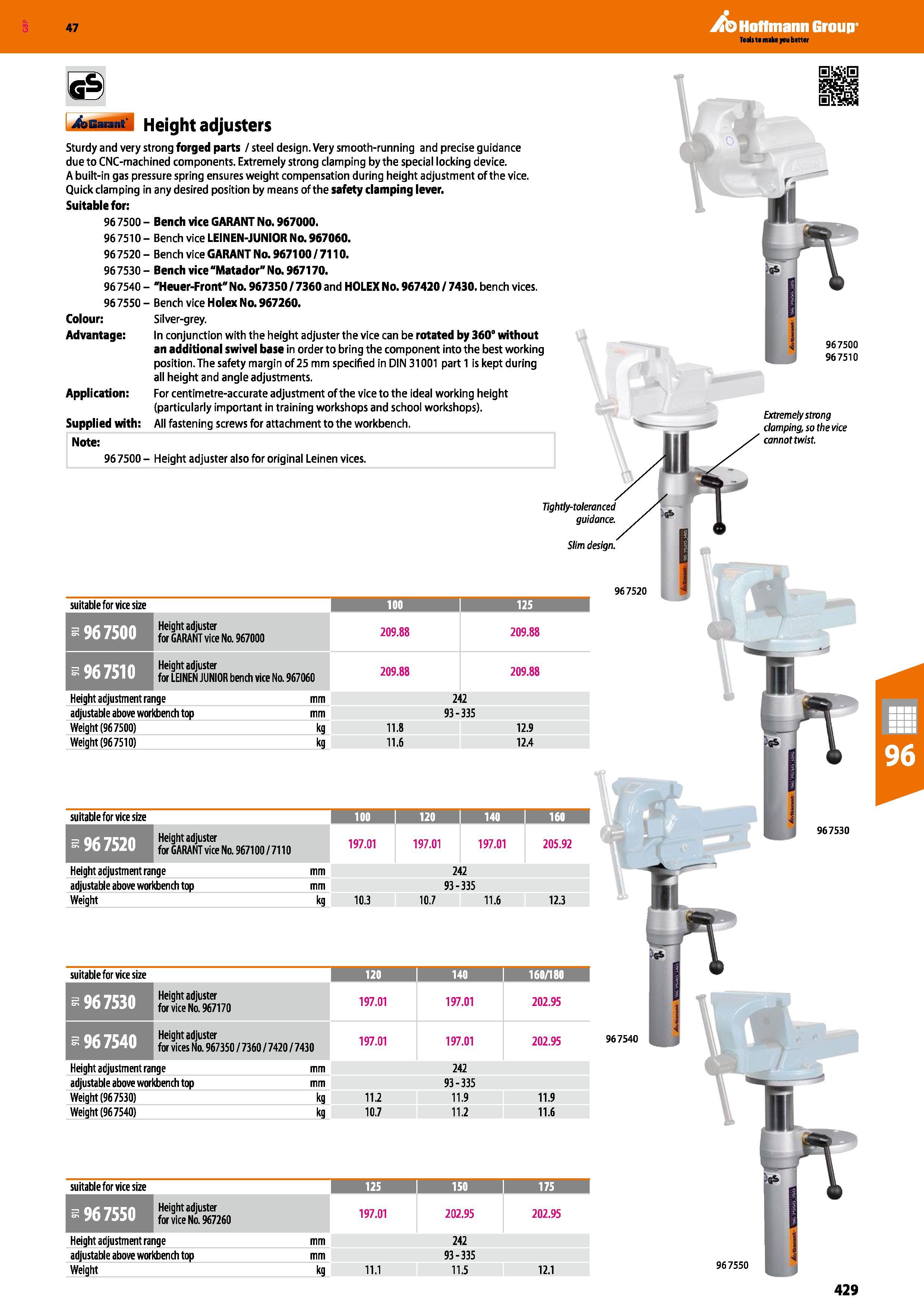

Hoffmann Group 47 Garant Height adjusters Sturdy and very strong forged parts / steel design. Very smooth-running and precise guidance due to CNC-machined components. Extremely strong clamping by the special locking device. A built-in gas pressure spring ensures weight compensation during height adjustment of the vice. Quick clamping in any desired position by means of the safety clamping lever. Suitable for: 96 7500 - Bench vice GARANT No. 967000. 96 7510 - Bench vice LEINEN-JUNIOR Na 967060. 96 7520 - Bench vice GARANT Na 967100 / 7110. 96 7530 - Bench vice "Matador" Na 967170. 96 7540 - "Heuer-Front" No. 967350 / 7360 and HOLEX No. 967420 / 7430. bench vices. 96 7550 - Bench vice Holex Na 967260. Colour: Advantage: Application: Silver-grey. In conjunction with the height adjuster the vice can be rotated by 360° without an additional swivel base in order to bring the component into the best working position. The safety margin of 25 mm specified in DIN 31001 part 1 is kept during all height and angle adjustments. For centimetre-accurate adjustment of the vice to the ideal working height (particularly important in training workshops and school workshops). All fastening screws for attachment to the workbench. Supplied with: Note: 96 7500 - Height adjuster also for original Leinen vices. Tightly-toleranced guidance. Slim design. Extremely strong clamping, so the vice cannot twist. suitable for vice size 100 1 125 1 Height adjuster for GARANT vice Na 967000 209.88 209.88 Height adjuster for LEINEN JUNIOR bench vice Na 967060 209.88 209.88 Height adjustment range mm 242 adjustable above workbench top mm 93-335 Weight (967500) kg 11.8 12.9 Weight (967510) kg 11.6 12.4 967520 suitable for vice size 1 100 I 120 > 140 i 16 I Height adjuster for GARANT vice No. 967100 / 7110 197.01 197.01 197.01 205.92 Height adjustment range mm 242 adjustable above workbench top mm 93-335 Weight kg 10.3 10.7 11.6 12.3 967530 suitable for vice size I 120 140 160/180 i - 96 7530 Height adjuster for vice Na 967170 197.01 197.01 202.95 -967540 Height adjuster for vices Na 967350 / 7360 / 7420 / 7430 197.01 197.01 202.95 Height adjustment range mm 242 adjustable above workbench top mm 93-335 Weight (967530) kg 11.2 11.9 11.9 Weight (967540) kg 10.7 11.2 11.6 967540 suitable for vice size 125 1 150 i 175 Height adjuster for vice Na 967260 197.01 202.95 202.95 Height adjustment range mm 242 adjustable above workbench top mm 93-335 Weight kg 11.1 11.5 12.1 967550 429
