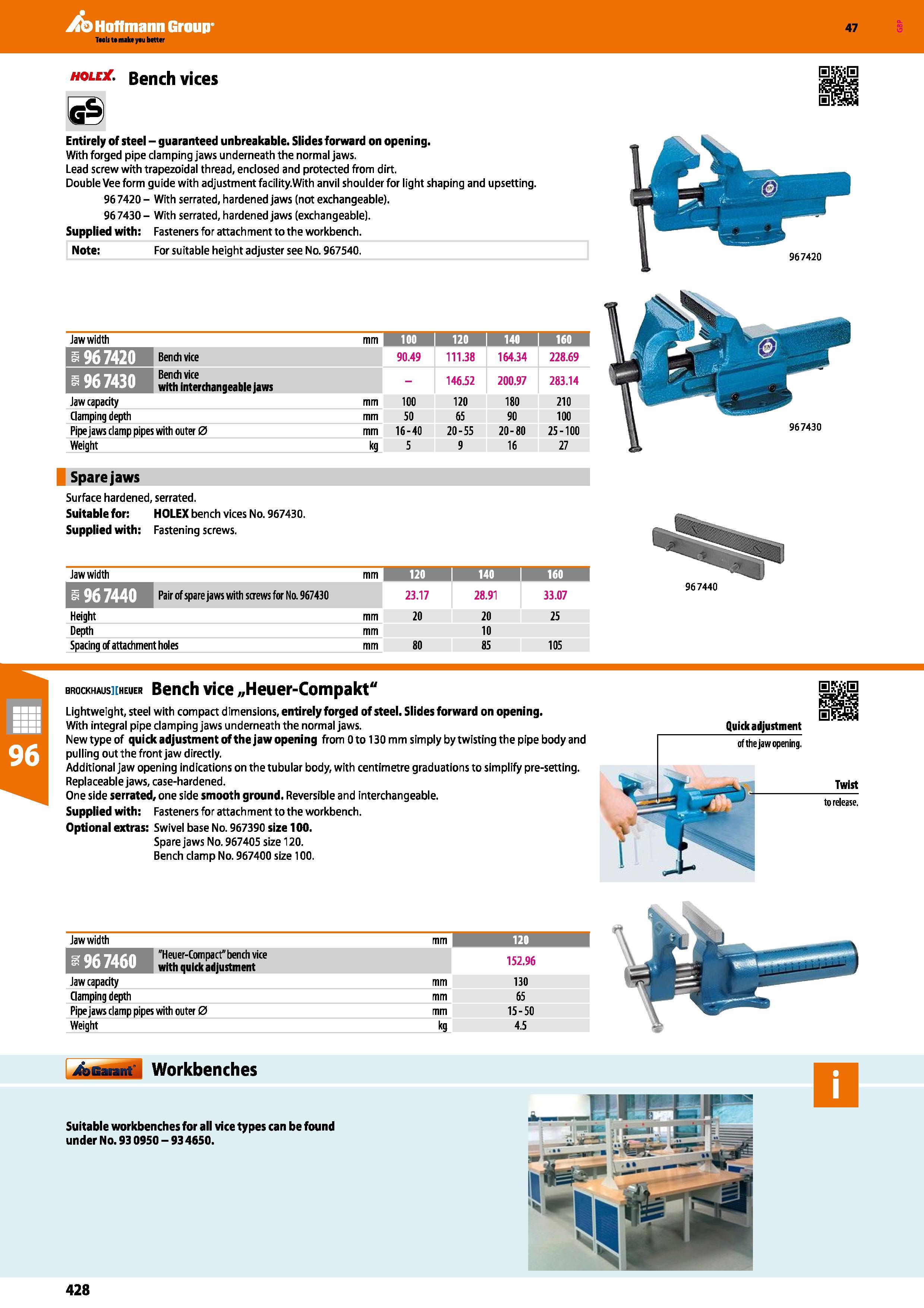

Hoffmann Group 47 hole . Bench vices Entirely of steel - guaranteed unbreakable. Slides forward on opening. With forged pipe clamping jaws underneath the normal jaws. Lead screw with trapezoidal thread, enclosed and protected from dirt. Double Vee form guide with adjustment facility.With anvil shoulder for light shaping and upsetting. 96 7420 - With serrated, hardened jaws (not exchangeable). 967430- With serrated, hardened jaws (exchangeable). Supplied with: Fasteners for attach ment to the workbench. Note: For suitable height adjuster see No. 967540. Jaw width mm 100 120 140 160 IPLTrVZl’Jlfl Bench vice 90.49 111.38 164.34 228.69 Bench vice with interchangeable jaws - 146.52 200.97 283.14 Jaw capacity mm 100 120 180 210 Clamping depth mm 50 65 90 100 Pipe jaws clamp pipes with outer 0 mm 16-40 20-55 20-80 25-100 Weight kg 5 9 16 27 Spare jaws Surface hardened, serrated. Suitable for: HOLEX bench vices No. 967430. Supplied with: Fastening screws. Jaw width mm 120 i 140 i 1 0 1 Pair of spare jaws with screws for Na 967430 23.17 28.91 33.07 Height mm 20 20 25 Depth mm 10 Spacing of attachment holes mm 80 85 105 967440 brockhausieheuer Bench vice „Heuer-Compakt" Lightweight, steel with compact dimensions, entirely forged of steel. Slides forward on opening. With integral pipe clamping jaws underneath the normal jaws. New type of quick adjustment of the jaw opening from 0 to 130 mm simply by twisting the pipe body and pulling out the front jaw directly. Additional jaw opening indications on the tubular body, with centimetre graduations to simplify pre-setting. Replaceable jaws, case-hardened. One side serrated, one side smooth ground. Reversible and interchangeable. Supplied with: Fasteners for attach ment to the workbench. Optional extras: Swivel base No. 967390 size 100. Spare jaws No. 967405 size 120. Bench clamp No. 967400 size 100. Jaw width mm 120 "Heuer-Compact” bench vice adjustment 152.96 Jaw capacity mm 130 Clamping depth mm 65 Pipe jaws clamp pipes with outer 0 mm 15-50 Weight kg 4.5 Workbenches Suitable workbenches for all vice types can be found under No. 93 0950 - 93 4650. 967420 967430 428
