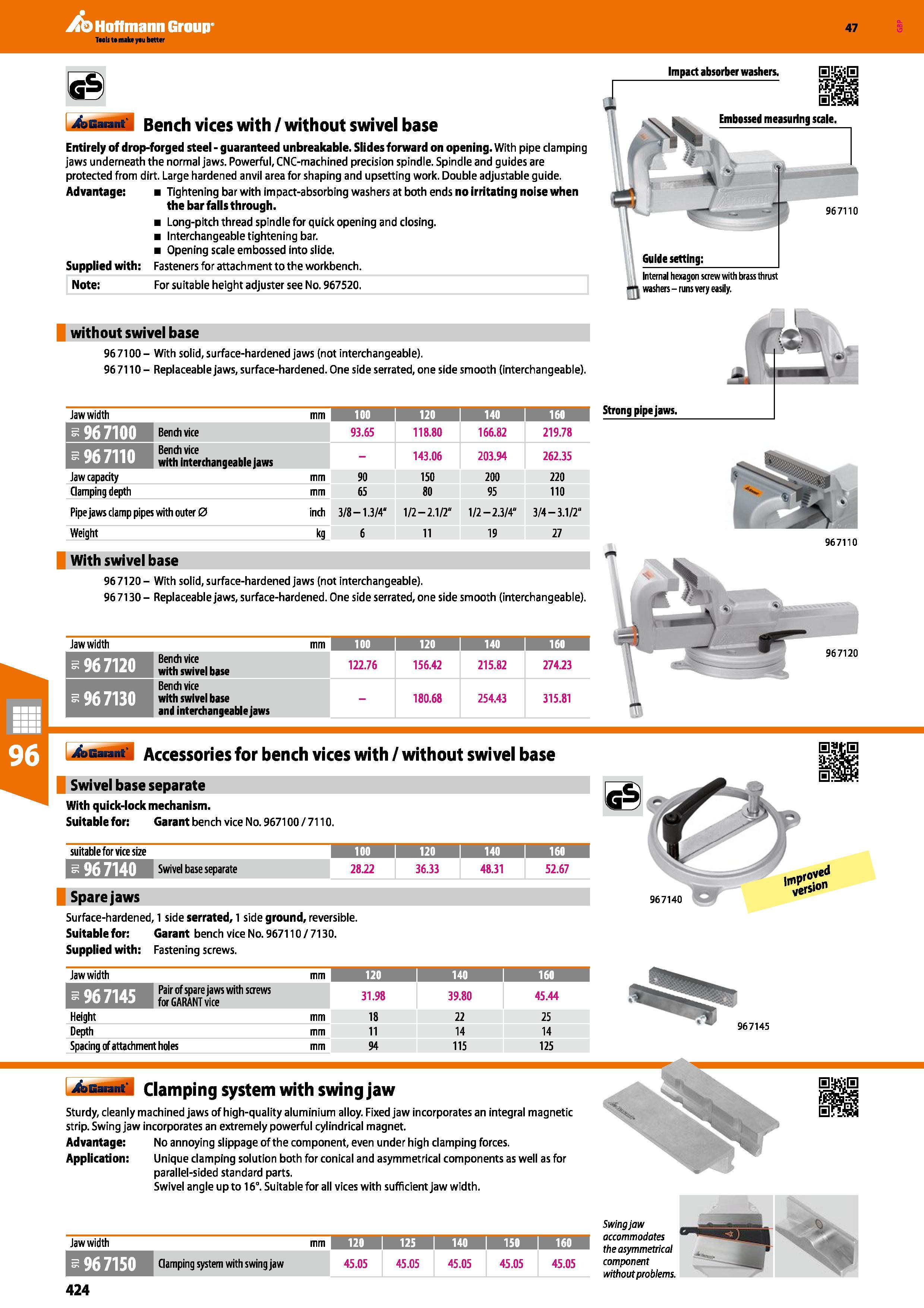

Hoffmann Group 47 Impact absorber washers. 4asat M Bench vices with / without swivel base Entirely of drop-forged steel - guaranteed unbreakable. Slides forward on opening. With pipe clamping jaws underneath the normal jaws. Powerful, CNC-machined precision spindle. Spindle and guides are protected from dirt. Large hardened anvil area for shaping and upsetting work. Double adjustable guide. Advantage: Supplied with: Note: Tightening bar with impact-absorbing washers at both ends no irritating noise when the bar falls through. Long-pitch thread spindle for quick opening and closing. Interchangeable tightening bar. Opening scale embossed into slide. Fasteners for attach ment to the workbench. For suitable height adjuster see No. 967520. without swivel base 96 7100 - With solid, surface-hardened jaws (not interchangeable). 96 7110 - Replaceable jaws, surface-hardened. One side serrated, one side smooth (interchangeable). Jaw width mm 100 I 120 i 140 150 s 967100 93.65 118.80 166.82 219.78 Bench vice with interchangeable jaws - 143.06 203.94 262.35 Jaw capacity mm 90 150 200 220 Clamping depth mm 65 80 95 110 Pipe jaws damp pipes with outer 0 inch 3/8-1.3/4“ 1/2-2.1/2" 1/2-2.3/4" 3/4-3.1/2“ Weight kg 6 11 19 27 With swivel base 967120- With solid, surface-hardened jaws (not interchangeable). 96 7130 - Replaceable jaws, surface-hardened. One side serrated, one side smooth (interchangeable). Eism Embossed measuring scale. 967110 Internal hexagon screw with brass thrust I washers runs very easily. Jaw width mm 100 120 140 i 160 96 7120 Bendivice with swivel base 122.76 156.42 215.82 274.23 967130 Bench vice with swivel base and interchangeable jaws - 180.68 254.43 315.81 Accessories for bench vices with / without swivel base Swivel base separate With quick-lock mechanism. Suitable for: Garant bench vice No. 967100 / 7110. suitable for vice size 100 I 120 140 I 160 I 96 7140 Swivel base separate 28.22 36.33 48.31 52.67 Spare jaws Surface-hardened, 1 side serrated, 1 side ground, reversible. Suitable for: Garant bench vice No. 967110 / 7130. Supplied with: Fastening screws. Jaw width mm 120 i 140 1 160 Pair of spare jaws with screws for GARANT vice 31.98 39.80 45.44 Height mm 18 22 25 Depth mm 11 14 14 Spacing of attachment holes mm 94 115 125 4sem M Clamping system with swing jaw Sturdy, cleanly machined jaws of high-quality aluminium alloy. Fixed jaw incorporates an integral magnetic strip. Swing jaw incorporates an extremely powerful cylindrical magnet. Advantage: No annoying slippage of the component, even under high clamping forces. Application: Unique clamping solution both for conical and asymmetrical components as well as for parallel-sided standard parts. Swivel angle up to 16°. Suitable for all vices with sufficient jaw width. Jaw width iBH 120 i 125 i 140 1 150 i 160 I Clamping system with swing jaw 45.05 45.05 45.05 45.05 45.05 Swing jaw accommodates the asymmetrical component without problems. 424 Strong pipe jaws. 967110 967145 967140
