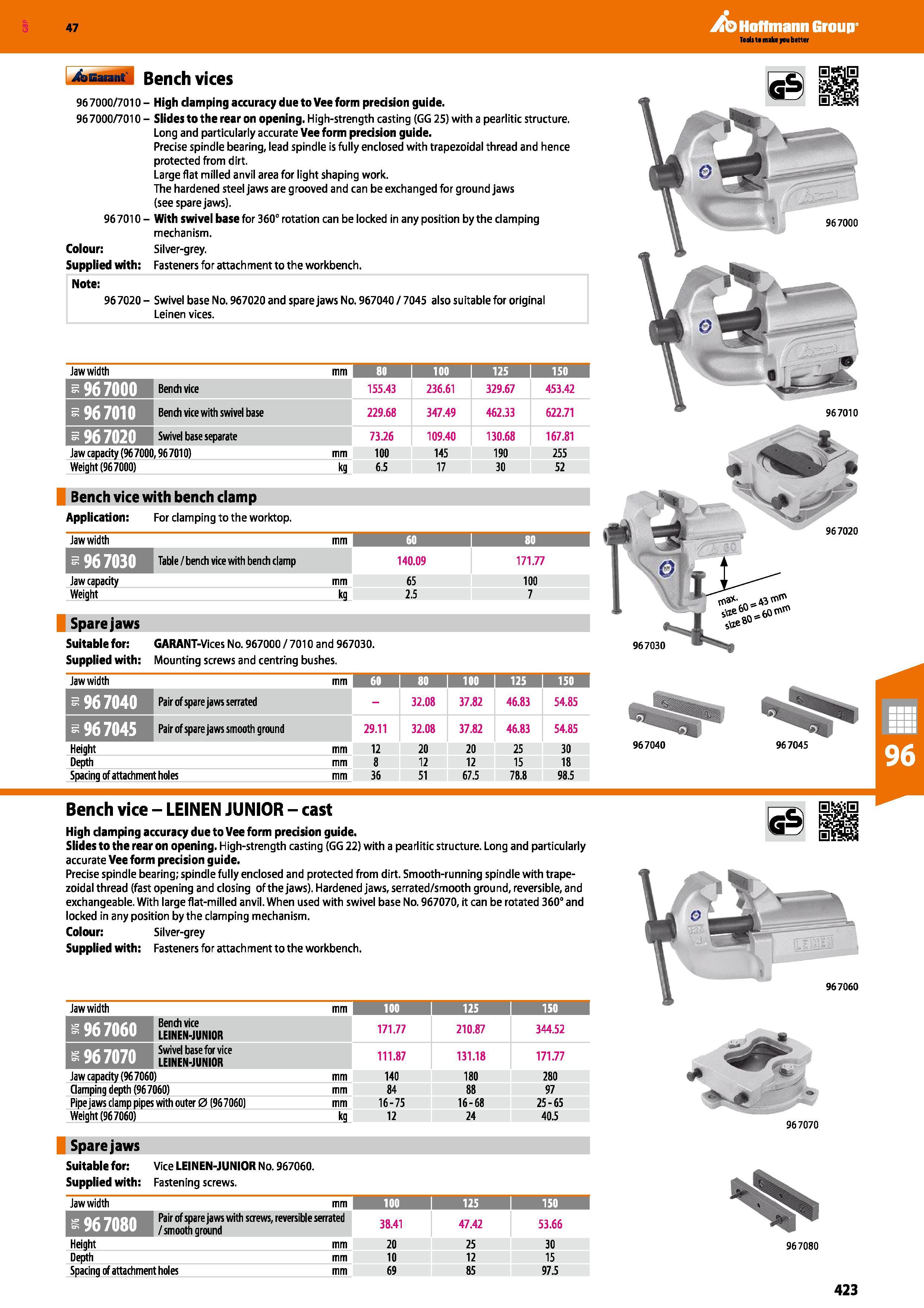

Hoffmann Group 47 Bench vices 96 7000/7010 - High damping accuracy due to Vee form precision guide. 96 7000/7010 - Slides to the rear on opening. High-strength casting (GG 25) with a pearlitic structure. Long and particularly accurate Vee form precision guide. Precise spindle bearing, lead spindle is fully enclosed with trapezoidal thread and hence protected from dirt. Large flat milled anvil area for light shaping work. The hardened steel jaws are grooved and can be exchanged for ground jaws (see spare jaws). 96 7010 - With swivel base for 360° rotation can be locked in any position by the clamping mechanism. Colour: Silver-grey. Supplied with: Fasteners for attach ment to the workbench. Note: 96 7020 - Swivel base No. 967020 and spare jaws No. 967040 / 7045 also suitable for original Leinen vices. Jaw width -96 7000 Bench vice 155.43 236.61 -96 7010 Bench vice with swivel base 229.68 347.49 -96 7020 Swivel base separate 73.26 109.40 Jaw capacity (96 7000,96 7010) mm 100 145 Weight (967000) Bench vice with bench clamp Application: For clamping to the worktop. Jaw width 96 7030 Jaw capacity Weight Table / bench vice with bench clamp 140.09 65 2.5 Spare jaws Suitable for: GARANT-Vices No. 967000 / 7010 and 967030. Supplied with: Mounting screws and centring bushes. 329.67 462.33 130.68 190 30 453.42 622.71 167.81 255 52 171.77 100 7 967030 Tools ta make you better 967020 S'ie 1 60'" Jaw width mm 60 I 80 I 100 I 125 I 150 BJliTilEilB Pair of spare jaws serrated - 32.08 37.82 46.83 54.85 Pair of spa re jaws smooth ground 29.11 32.08 37.82 46.83 54.85 Height mm 12 20 20 25 30 Depth mm 8 12 12 15 18 Spacing of attachment holes mm 36 51 67.5 78.8 98.5 967040 967045 Bench vice - LEINEN JUNIOR - cast High clamping accuracy due to Vee form precision guide. Slides to the rear on opening. High-strength casting (GG 22) with a pearlitic structure. Long and particularly accurate Vee form precision guide. Precise spindle bearing; spindle fully enclosed and protected from dirt. Smooth-running spindle with trapezoidal thread (fast opening and closing of the jaws). Hardened jaws, serrated/smooth ground, reversible, and exchangeable. With large flat-milled anvil. When used with swivel base No. 967070, it can be rotated 360° and locked in any position by the clamping mechanism. Colour: Silver-grey Supplied with: Fasteners for attach ment to the workbench. Jaw width mm 100 125 150 1 Bench vice LEINEN-JUNIOR 171.77 210.87 344.52 Swivel base for vice E ZLbLfl LEINEN-JUNIOR 111.87 131.18 171.77 Jaw capacity (96 7060) mm 140 180 280 Clamping depth (967060) mm 84 88 97 Pipe jaws clamp pipes with outer 0 (967060) mm 16-75 16-68 25-65 Weight (967060) kg 12 24 40.5 967060 Spare jaws Suitable for: Vice LEINEN-JUNIOR No. 967060. Supplied with: Fastening screws. Jaw width mm 100 125 I 150 1 Pair of spare jaws with screws, reversible serrated /smooth ground 38.41 47.42 53.66 Height mm 20 25 30 Depth mm 10 12 15 Spacing of attachment holes mm 69 85 97.5 967080 967070 423
