420 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.420

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 420 0420 ENG Lab2u

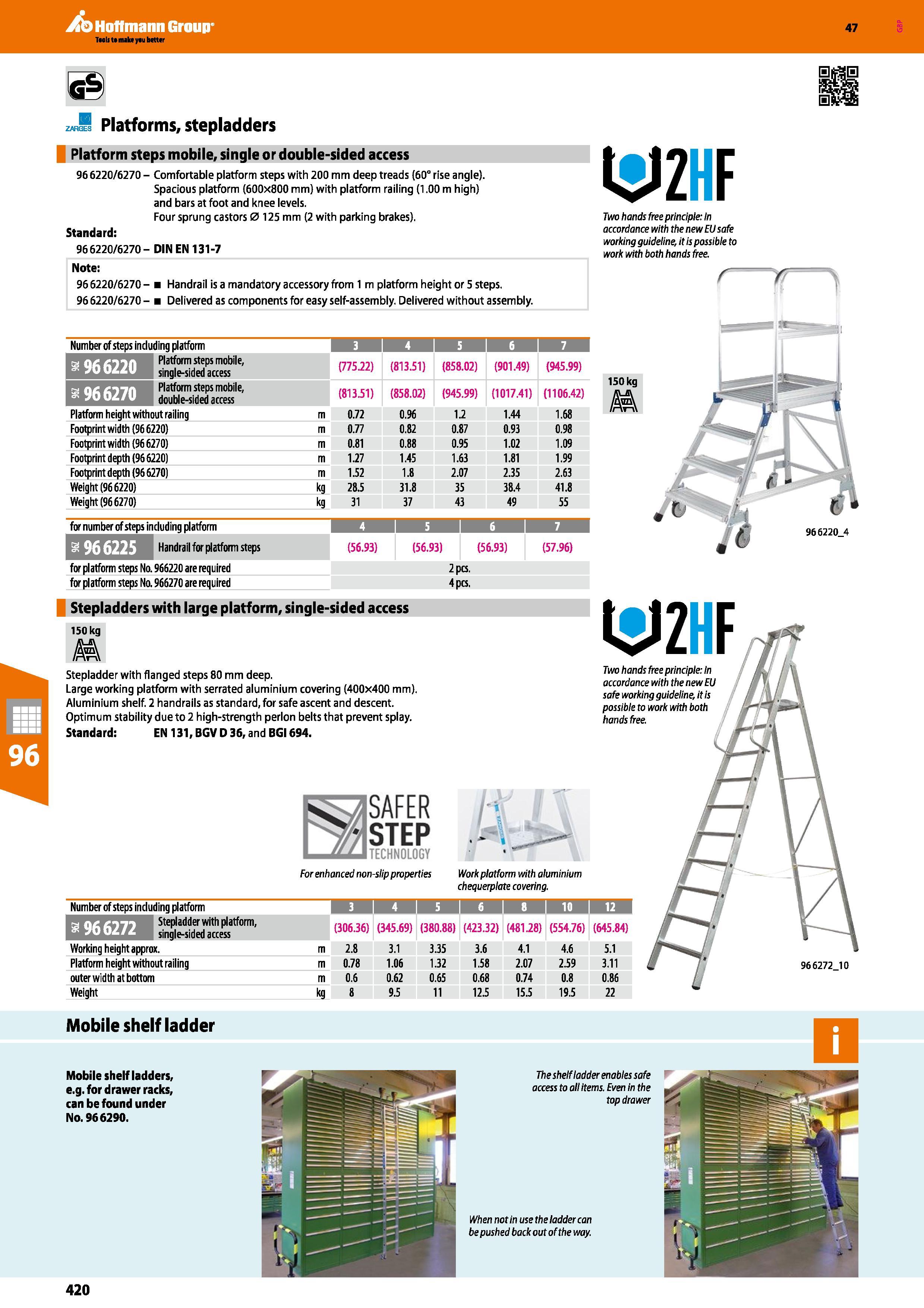

Hoffmann Group 47 ZARGES Platforms, stepladders Platform steps mobile, single or double-sided access 96 6220/6270 - Comfortable platform steps with 200 mm deep treads (60° rise angle). Spacious platform (600x800 mm) with platform railing (1.00 m high) and bars at foot and knee levels. Four sprung castors 0 125 mm (2 with parking brakes). Standard: 966220/6270- DIN EN 131-7 Note: 966220/6270-966220/6270- tS)2HF Two hands free principle. In accordance with the new EU safe working guideline, it is possible to work with both hands free. Handrail is a mandatory accessory from 1 m platform height or 5 steps. Delivered as components for easy self-assembly. Delivered without assembly. r rr Number of steps induding platform 3 I 4 1 5 1 6 I 7 a 966220 Platform steps mobile, single-sided access (775.22) (813.51) (858.02) (901.49) (945.99) a 966270 Platform steps mobile, double-sided access (813.51) (858.02) (945.99) (1017.41) (1106.42) Platform height without railing m 0.72 0.96 1.2 1.44 1.68 Footprint width (966220) m 0.77 0.82 0.87 0.93 0.98 Footprint width (966270) m 0.81 0.88 0.95 1.02 1.09 Footprint depth (96 6220) m 1.27 1.45 1.63 1.81 1.99 Footprint depth (96 6270) m 1.52 1.8 2.07 2.35 2.63 Weight (966220) kg 28.5 31.8 35 38.4 41.8 Weight (966270) kg 31 37 43 49 55 150 kg Atzm for number of steps induding platform 4 1 5 6 1 7 l L il'7£XV Handrail for platform steps (56.93) (56.93) (56.93) (57.96) for platform steps Na 966220 are required 2 pcs. for platform steps No. 966270 are required 4 pa, 966220_4 Stepladders with large platform, single-sided access 150 kg Stepladder with flanged steps 80 mm deep. Large working platform with serrated aluminium covering (400x400 mm). Aluminium shelf. 2 handrails as standard, for safe ascent and descent. Optimum stability due to 2 high-strength perlon belts that prevent splay. Standard: EN 131, BGV D 36, and BGI 694. Two hands free principle: In accordance with the new EU safe working guideline, it is possible to work with both / hands free. SAFER STEP TECHNOLOGY For enhanced non-slip properties 1 S.1 Work platform with aluminium chequerplate covering. Number of steps including platform 1 3 1 4 I 5 1 I 1 io 1 12 1 Stepladder with platform, single-sided access (306.36) (345.69) (380.88) (423.32) (481.28) (554.76) (645.84) Working height approx. m 2.8 3.1 3.35 3.6 4.1 4.6 5.1 Platform height without railing m 0.78 1.06 1.32 1.58 2.07 2.59 3.11 outer width at bottom m 0.6 0.62 0.65 0.68 0.74 0.8 0.86 Weight kg 8 9.5 11 12.5 15.5 19.5 22 966272J0 Mobile shelf ladder Mobile shelf ladders, e.g. for drawer racks, can be found under No. 966290. The shelf ladder enables safe access to all items. Even in the top drawer When notin use the ladder can be pushed back out of the way. 420
