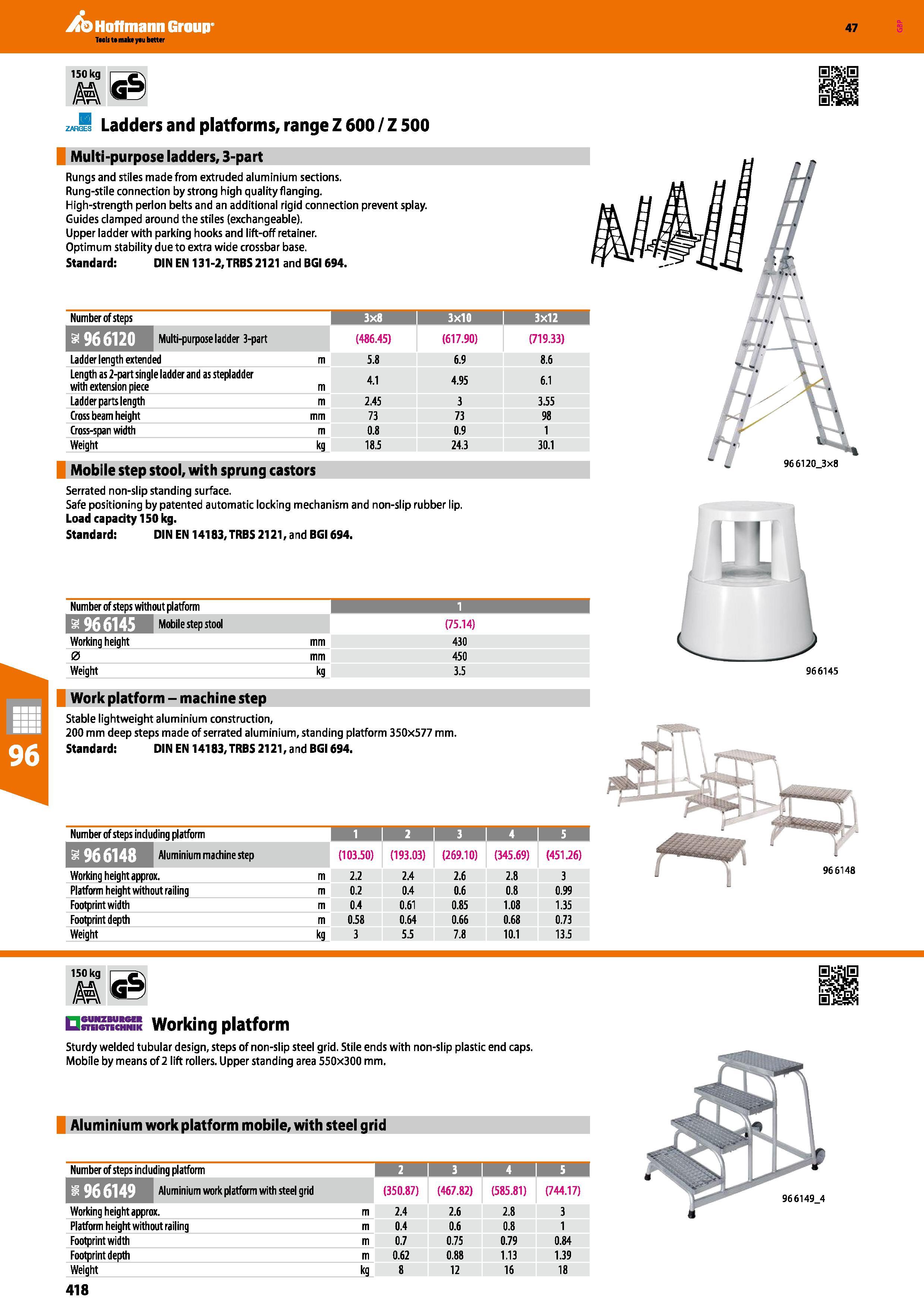

Hoffmann Group 47 150 kg zarI Ladders and platforms, range Z 600 / Z 500 Multi-purpose ladders, 3-part Rungs and stiles made from extruded aluminium sections. Rung-stile connection by strong high quality flanging. High-strength perlon belts and an additional rigid connection prevent splay. Guides clamped around the stiles (exchangeable). Upper ladder with parking hooks and lift-off retainer. Optimum stability due to extra wide crossbar base. Standard: DIN EN 131-2, TRBS 2121 and BGI694. Mobile step stool, with sprung castors Working height 0 Weight mm kg 430 450 3.5 Work platform - machine step Number of steps I 3x8 I 3x10 i 3x12 Multi-purpose ladder 3-part (486.45) (617.90) (719.33) Ladder length extended m 5.8 6.9 8.6 Length as 2-part single ladder and as stepladder 4.1 4.95 6.1 with extension piece m Ladder parts length m 2.45 3 3.55 Cross beam height mm 73 73 98 Cross-span width m 0.8 0.9 1 Weight kg 18.5 24.3 30.1 Serrated non-slip standing surface. Safe positioning by patented automatic locking mechanism and non-slip rubber lip. Load capacity 150 kg. Standard: DIN EN 14183,TRBS 2121, and BGI 694. Number of steps without platform 1 a 966145 Mobile step stool (75.14) 966145 Stable lightweight aluminium construction, 200 mm deep steps made of serrated aluminium, standing platform 350x577 mm. Standard: DIN EN 14183,TRBS 2121, and BGI 694. Number of steps induding platform “1 1 I 2 I 3 4 I 5 Aluminium machine step (103.50) (193.03) (269.10) (345.69) (451.26) Working height approx. m 2.2 2.4 2.6 2.8 3 Platform height without railing m 0.2 0.4 0.6 0.8 0.99 Footprint width m 0.4 0.61 0.85 1.08 1.35 Footprint depth m 0.58 0.64 0.66 0.68 0.73 Weight kg 3 5.5 7.8 10.1 13.5 96 6148 150 kg Aum nUE T cHmK Working platform Sturdy welded tubular design, steps of non-slip steel grid. Stile ends with non-slip plastic end caps. Mobile by means of 2 lift rollers. Upper standing area 550x300 mm. Aluminium work platform mobile, with steel grid Number of steps including platform 1 2 1 3 4 1 5 Aluminium work platform with steel grid (350.87) (467.82) (585.81) (744.17) Working height approx. m 2.4 2.6 2.8 3 Platform height without railing m 0.4 0.6 0.8 1 Footprint width m 0.7 0.75 0.79 0.84 Footprint depth m 0.62 0.88 1.13 1.39 Weight kg 8 12 16 18 966149 4 418
