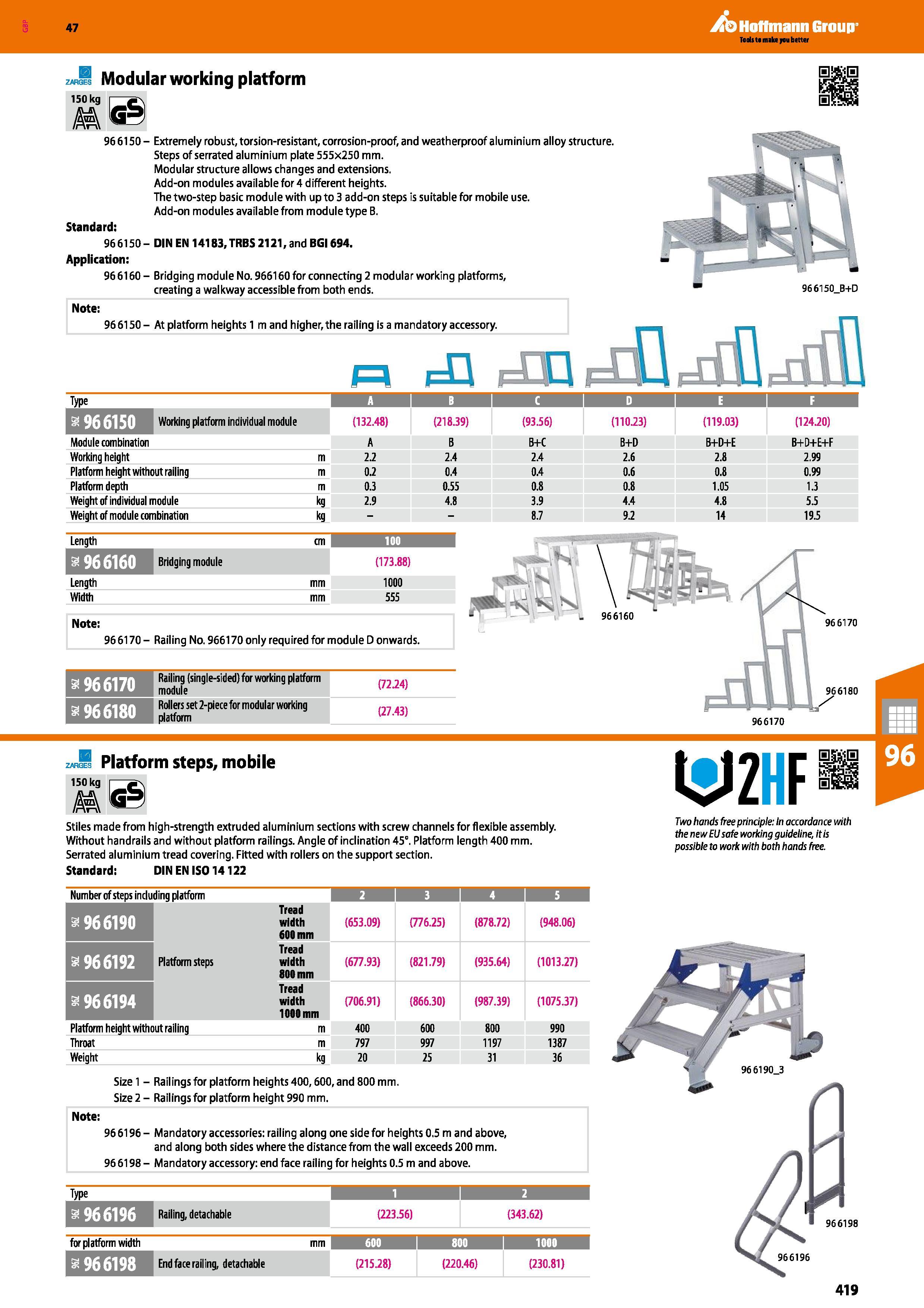

Hoffmann Group 47 iR S Modular working platform 150 kg AnA /nn\ 96 6150 - Extremely robust, torsion-resistant, corrosion-proof, and weatherproof aluminium alloy structure. Steps of serrated aluminium plate 555x250 mm. Modular structure allows changes and extensions. Add-on modules available for 4 different heights. The two-step basic module with up to 3 add-on steps is suitable for mobile use. Add-on modules available from module type B. Standard: 96 6150 - DIN EN 14183, TRBS 2121, and BGI 694. Application: 966160- Bridging module No. 966160 for connecting 2 modular working platforms, creating a walkway accessible from both ends. Note: 966150- At platform heights 1 m and higher, the railing is a mandatory accessory. 966150_B+D f=\ dH 1 rrB Working platform individual module (132.48) (218.39) (93.56) (110.23) (119.03) (124.20) Module combination A B B+C B+D B+D+E B+D+E+F Working height m 2.2 2.4 2.4 2.6 2.8 2.99 Platform height without railing m 0.2 0.4 0.4 0.6 0.8 0.99 Platform depth m 0.3 0.55 0.8 0.8 1.05 1.3 Weight of individual module kg 2.9 4.8 3.9 4.4 4.8 5.5 Weight of module combination kg - - 8.7 9.2 14 19.5 Length cm 100 a 966160 (173.88) Length mm 1000 Width mm 555 Note: 966170- Railing No. 966170 only required for module D onwards. 966170 Railing (single-sided) for working platform module (72.24) s 966180 Rollers set 2-piece for modular working platform (27.43) ZAR S Platform steps, mobile 150 kg AnA Stiles made from high-strength extruded aluminium sections with screw channels for flexible assembly. Without handrails and without platform railings. Angle of inclination 45°. Platform length 400 mm. Serrated aluminium tread covering. Fitted with rollers on the support section. Standard: DIN EN IS014122 Two hands free principle: In accordance with the new EU safe working guideline, it is possible to work with both hands free. Number of steps including platform 1 2 I 3 I 4 I 5 a 966190 Tread width 601mm (653.09) (776.25) (878.72) (948.06) a 966192 Platform steps Tread width 800 mm (677.93) (821.79) (935.64) (1013.27) a 966194 Tread width 1000 mm (706.91) (866.30) (987.39) (1075.37) Platform height without railing m 400 600 800 990 Throat m 797 997 1197 1387 Weight kg 20 25 31 36 Note: Size 1 - Railings for platform heights 400,600, and 800 mm. Size 2 - Railings for platform height 990 mm. 96 6196 - Mandatory accessories: railing along one side for heights 0.5 m and above, and along both sides where the distance from the wall exceeds 200 mm. 966198- Mandatory accessory: end face railing for heights 0.5 m and above. Type 1 1 2 a 966196 Railing, detachable (223.56) (343.62) for platform width 419 966190_3
