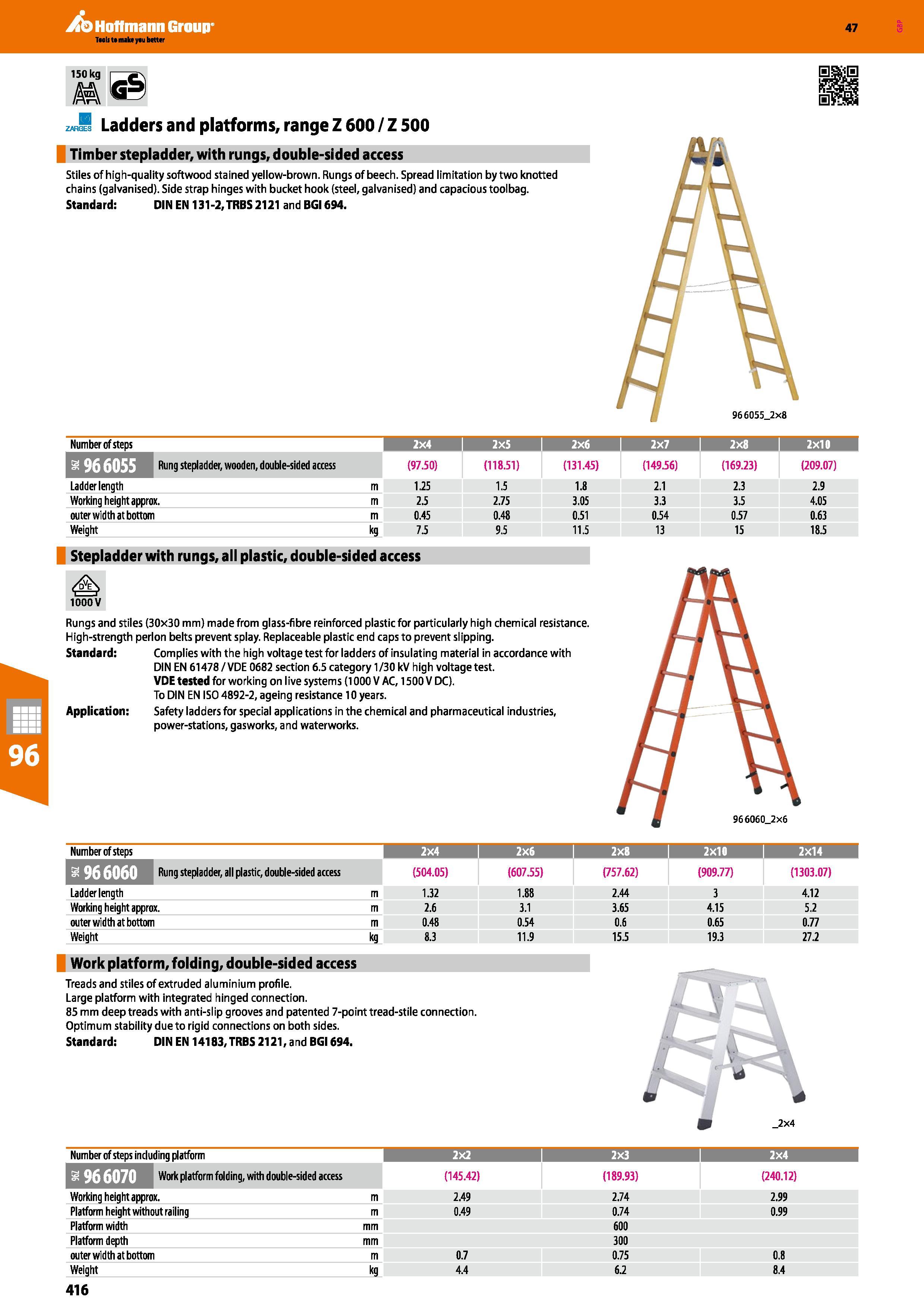

zarI Ladders and platforms, range Z 600 / Z 500 Timber stepladder, with rungs, double-sided access Stiles of high-quality softwood stained yellow-brown. Rungs of beech. Spread limitation by two knotted chains (galvanised). Side strap hinges with bucket hook (steel, galvanised) and capacious toolbag. Standard: DIN EN 131-2, TRBS 2121 and BGI694. 966055_2x8 Number of steps 1 2X4 \ 2x5 2x6 j 2X7 1 2x8 I 2X10 1 ari'Tli rB un9 Stepladder, wooden, double-sided access (97.50) (118.51) (131.45) (149.56) (169.23) (209.07) Ladder length m 1.25 1.5 1.8 2.1 2.3 2.9 Working height approx. m 2.5 2.75 3.05 3.3 3.5 4.05 outer width at bottom m 0.45 0.48 0.51 0.54 0.57 0.63 Weight kg 15 9.5 11.5 13 15 18.5 Stepladder with rungs, all plastic, double-sided access oov Rungs and stiles (30x30 mm) made from glass-fibre reinforced plastic for particularly high chemical resistance. High-strength perlon belts prevent splay. Replaceable plastic end caps to prevent slipping. Standard: Complies with the high voltage test for ladders of insulating material in accordance with DIN EN 61478 / VDE 0682 section 6.5 category 1/30 kV high voltage test. VDE tested for working on live systems (1000 V AC, 1500 V DC). To DIN EN ISO 4892-2, ageing resistance 10 years. Application: Safety ladders for special applications in the chemical and pharmaceutical industries, power-stations, gasworks, and waterworks. Number of steps 2X4 i 2X6 i 2X8 2X10 I 2X14 Rung stepladder, all plastic, double-sided access (504.05) (607.55) (757.62) (909.77) (1303.07) Ladder length m 1.32 1.88 2.44 3 4.12 Working height approx. m 2.6 3.1 3.65 4.15 5.2 outer width at bottom m 0.48 0.54 0.6 0.65 0.77 Weight kg 8.3 11.9 15.5 19.3 27.2 Work platform, folding, double-sided access Treads and stiles of extruded aluminium profile. Large platform with integrated hinged connection. 85 mm deep treads with anti-slip grooves and patented 7-point tread-stile connection. Optimum stability due to rigid connections on both sides. Standard: DIN EN 14183,TRBS 2121, and BGI694. 'I' 4 It r 2x4 Number of steps including platform 2X2 I 2X3 I 2X4 S Work platform folding, with double-sided access (145.42) (189.93) (240.12) Working height approx. m 2.49 2.74 2.99 Platform height without railing m 0.49 0.74 0.99 Platform width mm 600 Platform depth mm 300 outer width at bottom m 0.7 0.75 0.8 Weight kg 4.4 6.2 8.4
