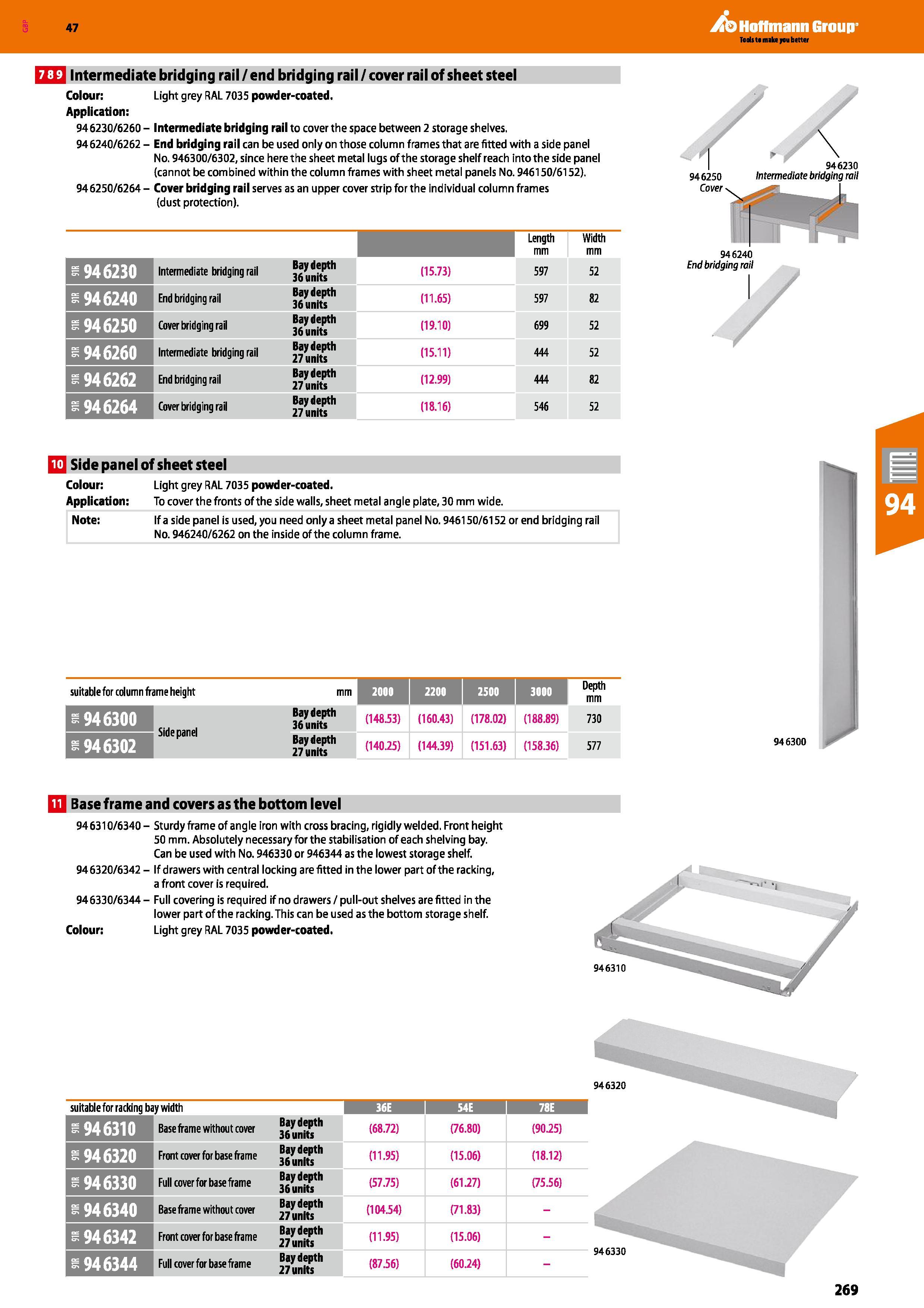

Hoffmann Group 47 HE Intermediate bridging rail/end bridging rail /cover rail of sheet steel Colour: Light grey RAL 7035 powder-coated. Application: 946230/6260 - Intermediate bridging rail to cover the space between 2 storage shelves. 946240/6262 - End bridging rail can be used only on those column frames that are fitted with a side panel No. 946300/6302, since here the sheet metal lugs of the storage shelf reach into the side panel (cannot be combined within the column frames with sheet metal panels No. 946150/6152). 946250/6264 - Cover bridging rail serves as an upper cover strip for the individual column frames (dust protection). I 946230 94 6250 Intermediate bridging rail Covers Length mm Width mm -946230 Intermediate bridging rail Bay depth 36 units (15.73) 597 52 End bridging rail Bay depth 36 units (11.65) 597 82 -94 6250 Cover bridging rail Bay depth 36 units (19.10) 699 52 Intermediate bridging rail Bay depth 27 units (15.11) 444 52 946262 End bridging rail Bay depth 27 units (12.99) 444 82 iBI Cover bridging rail Bay depth 27 units (18.16) 546 52 946240 End bridging rail H Side panel of sheet steel Colour: Light grey RAL 7035 powder-coated. Application: To cover the fronts of the side walls, sheet metal angle plate, 30 mm wide. Note: If a side panel is used, you need only a sheet metal panel No. 946150/6152 or end bridging rail No. 946240/6262 on the inside of the column frame. suitable for column frame height mm 2200 2500 Depth mm -946300 Bay depth 36 units (148.53) (160.43) (178.02) (188.89) 730 jiueuaiici Bay depth 27 units (140.25) (144.39) (151.63) (158.36) 577 946300 Q Base frame and covers as the bottom level 946310/6340 - Sturdy frame of angle iron with cross bracing, rigidly welded. Front height 50 mm. Absolutely necessary for the stabilisation of each shelving bay. Can be used with No. 946330 or 946344 as the lowest storage shelf. 946320/6342 - If drawers with central locking are fitted in the lower part of the racking, a front cover is required. 946330/6344 - Full covering is required if no drawers / pull-out shelves are fitted in the lower part of the racking. This can be used as the bottom storage shelf. Colour: Light grey RAL 7035 powder-coated. 946320 suitable for racking bay width 36E i 54E 78E I Base frame without cover Baydepth 36 units (68.72) (76.80) (90.25) e 946320 Front cover for base frame Baydepth 36 units (11.95) (15.06) (18.12) -946330 Full cover for base frame Baydepth 36 units (57.75) (61.27) (75.56) Base frame without cover Baydepth 27 units (104.54) (71.83) - -946342 Front cover for base frame Baydepth 27 units (11.95) (15.06) - il'IF.-WEl Full cover for base frame Baydepth 27 units (87.56) (60.24) - 946310 269
