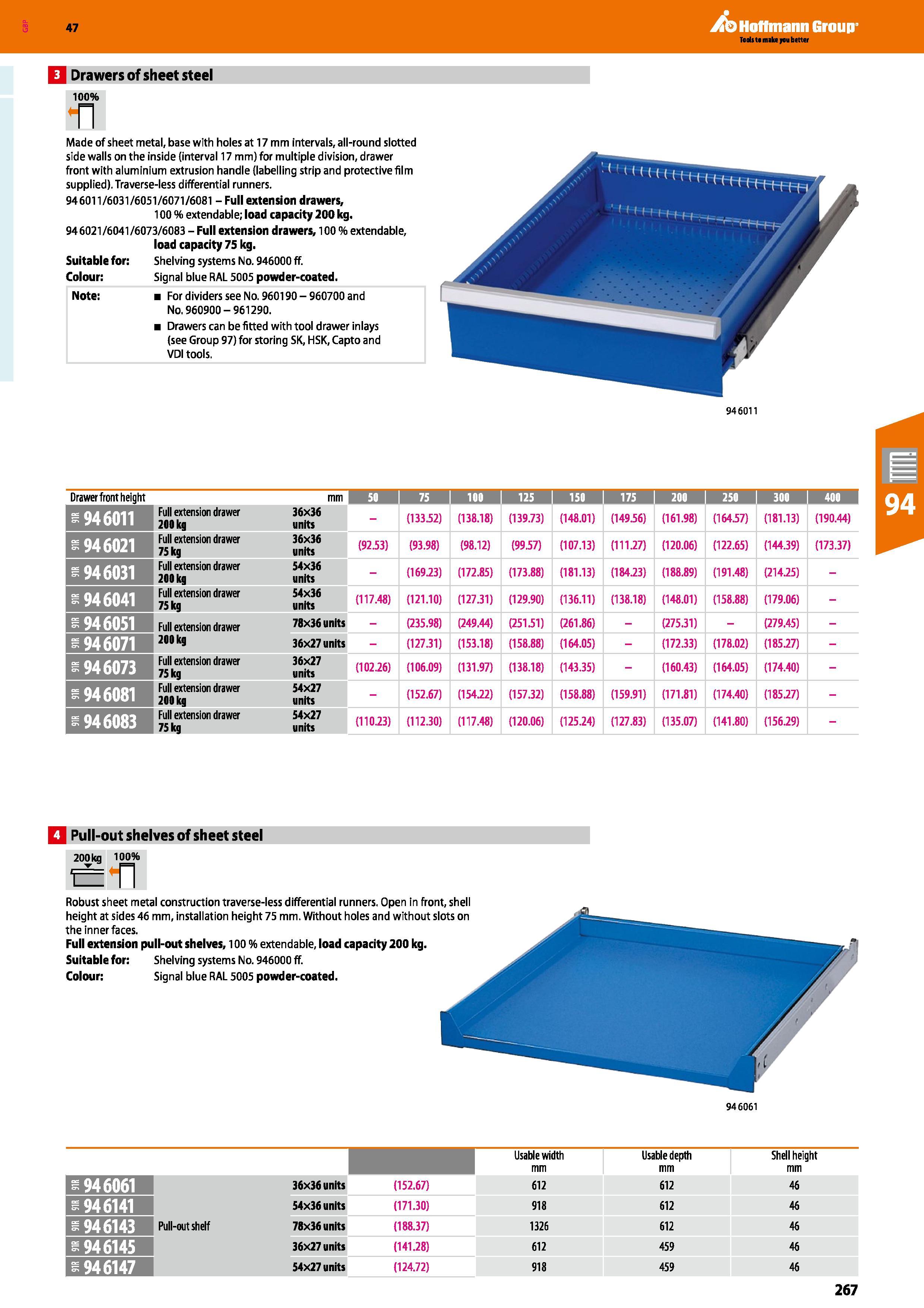

Hoffmann Group 47 Q Drawers of sheet steel 100% n Made of sheet metal, base with holes at 17 mm intervals, all-round slotted side walls on the inside (interval 17 mm) for multiple division, drawer front with aluminium extrusion handle (labelling strip and protective film supplied). Traverse-less differential runners. 946011/6031/6051/6071/6081 - Full extension drawers, 100 % extendable; load capacity 200 kg. 946021/6041/6073/6083 - Full extension drawers, 100 % extendable, load capacity 75 kg. Suitable for: Shelving systems No. 946000 ff. Colour: Signal blue RAL 5005 powder-coated. Note: For dividers see No. 960190 - 960700 and No. 960900-961290. Drawers can be fitted with tool drawer inlays (see Group 97) for storing SK, HSK, Capto and VDI tools. 946011 Drawer front height mm 50 75 100 125 150 175 200 250 IH11I 400 i -946011 Full extension drawer 200 kg 36x36 units - (133.52) (138.18) (139.73) (148.01) (149.56) (161.98) (164.57) (181.13) (190.44) Full extension drawer 75 kg 36x36 units (92.53) (93.98) (98.12) (99.57) (107.13) (111.27) (120.06) (122.65) (144.39) (173.37) -94 6031 Full extension drawer 200 kg 54x36 units - (169.23) (172.85) (173.88) (181.13) (184.23) (188.89) (191.48) (214.25) - 1946041 Full extension drawer 75 kg 54x36 units (117.48) (121.10) (127.31) (129.90) (136.11) (138.18) (148.01) (158.88) (179.06) - mimm Full extension drawer 78x36 units - (235.98) (249.44) (251.51) (261.86) - (275.31) - (279.45) - 1946071 200 kg 36x27 units - (127.31) (153.18) (158.88) (164.05) - (172.33) (178.02) (185.27) - 1946073 Full extension drawer 75 kg 36x27 units (102.26) (106.09) (131.97) (138.18) (143.35) - (160.43) (164.05) (174.40) - 1946081 Full extension drawer 200 kg 54x27 units - (152.67) (154.22) (157.32) (158.88) (159.91) (171.81) (174.40) (185.27) - 1946083 Full extension drawer 75 kg 54x27 units (110.23) (112.30) (117.48) (120.06) (125.24) (127.83) (135.07) (141.80) (156.29) - Q Pull-out shelves of sheet steel 200kg 100% e= n Robust sheet metal construction traverse-less differential runners. Open in front, shell height at sides 46 mm, installation height 75 mm. Without holes and without slots on the inner faces. Full extension pull-out shelves, 100 % extendable, load capacity 200 kg. Suitable for: Shelving systems No. 946000 ff. Colour: Signal blue RAL 5005 powder-coated. a I' 946061 Usable width mm Usable depth mm Shell height mm 1946061 36x36 units (152.67) 612 612 46 1946141 54x36 units (171.30) 918 612 46 1946143 Pull-out shelf 78x36 units (188.37) 1326 612 46 1946145 36x27 units (141.28) 612 459 46 mimm 54x27 units (124.72) 918 459 46 267
