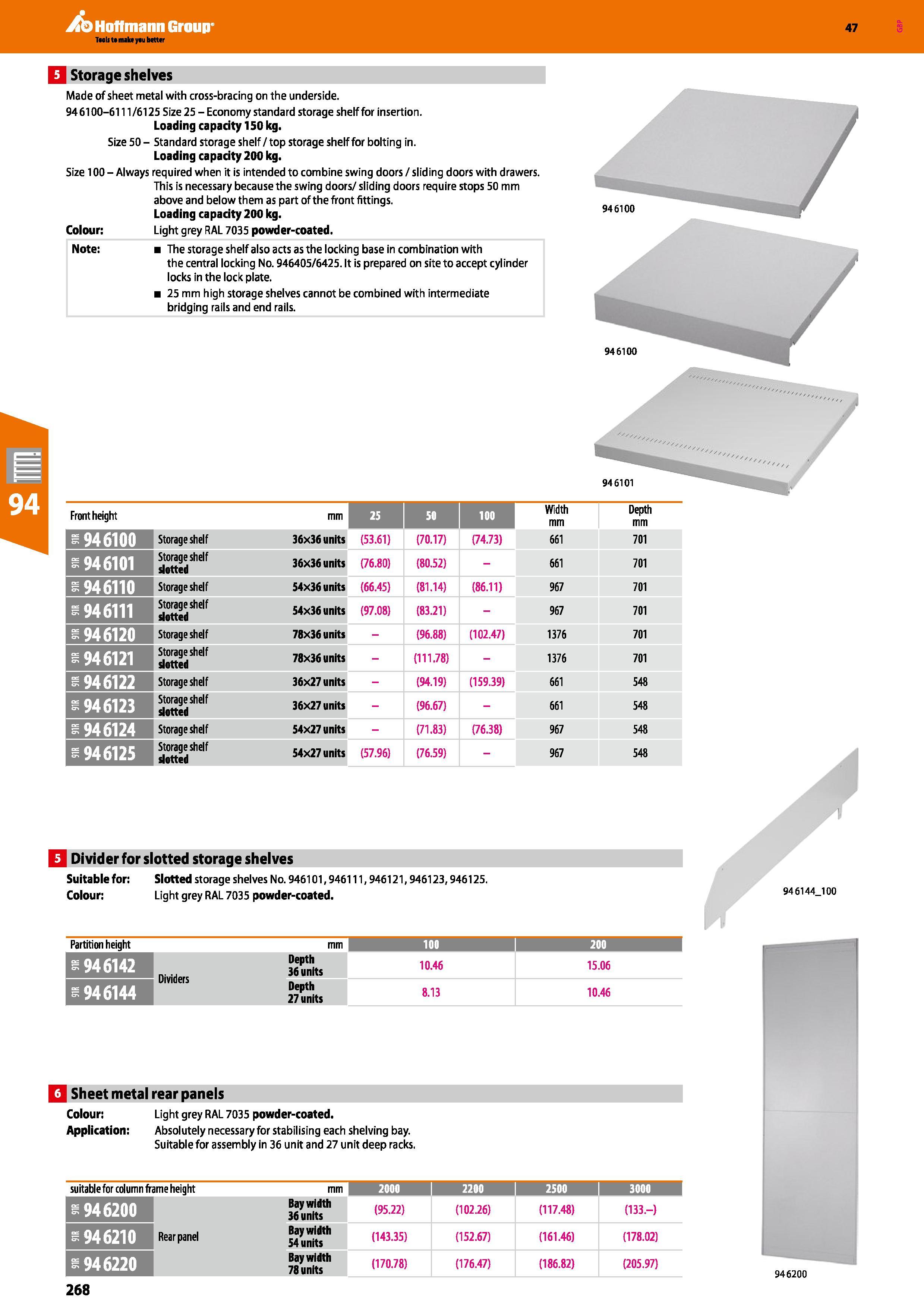

Hoffmann Group 47 Q Storage shelves Made of sheet metal with cross-bracing on the underside. 946100-6111/6125 Size 25 - Economy standard storage shelf for insertion. Loading capacity 150 kg. Size 50 - Standard storage shelf / top storage shelf for bolting in. Loading capacity 200 kg. Size 100-Always required when it is intended to combine swing doors /sliding doors with drawers. This is necessary because the swing doors/ sliding doors require stops 50 mm above and below them as part of the front fittings. Loading capacity 200 kg. Colour: Light grey RAL 7035 powder-coated. The storage shelf also acts as the locking base in combination with the central locking No. 946405/6425. It is prepared on site to accept cylinder locks in the lock plate. 25 mm high storage shelves cannot be combined with intermediate bridging rails and end rails. Front height 946100 Storage shelf Storage shelf slotted 'I MI l Storage shelf Storage shelf slotted 946111 Storage shelf Storage shelf slotted Storage shelf Storage shelf slotted msm Storage shelf Storage shelf slotted 946122 23 946125 946101 mm 25 51 Width mm Depth mm 36x36 units (53.61) (70.17) (74.73) 661 701 36x36 units (76.80) (80.52) 661 701 54x36 units (66.45) (81.14) (86.11) 967 701 54x36 units (97.08) (83.21) 967 701 78x36 units (96.88) (102.47) 1376 701 78x36 units (111.78) 1376 701 36x27 units (94.19) (159.39) 661 548 36x27 units (96.67) 661 548 54x27 units (71.83) (76.38) 967 548 54x27 units (57.96) (76.59) 967 548 Divider for slotted storage shelves Suitable for: Slotted storage shelves No. 946101,946111,946121,946123,946125. Colour: Light grey RAL 7035 powder-coated. 946144_100 Partition height mm 100 I 200 1 SZEEE1_ Depth 36 units 10.46 15.06 -946144 Depth 27 units 8.13 10.46 Sheet metal rear panels Colour: Light grey RAL 7035 powder-coated. Application: Absolutely necessary for stabilising each shelving bay. Suitable for assembly in 36 unit and 27 unit deep racks. suitable for column frame height mm 2000 I 2200 2500 3000 j Bay width 36 units (95.22) (102.26) (117.48) (133.-) -946210 Rear panel Bay width 54 units (143.35) (152.67) (161.46) (178.02) m 1 Bay width 78 units (170.78) (176.47) (186.82) (205.97) 946200 268
