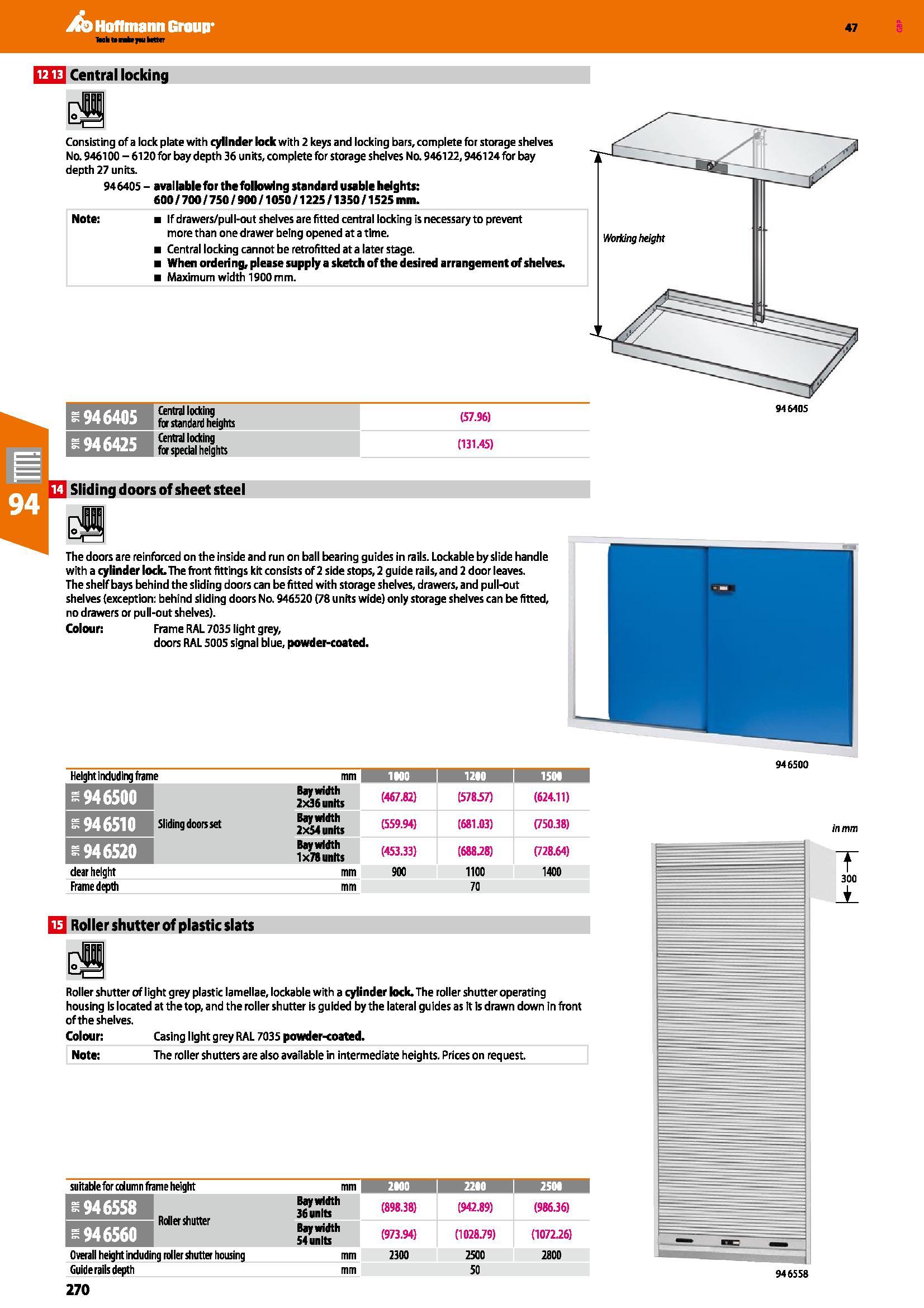

270 Каталог HOFFMANN GROUP 2016 Производственная мебель для работы и хранения Вер. 47 Стр.270

Каталог HOFFMANN GROUP 2016 Производственная мебель Стр. 270 0270 ENG Lab2u

1213 Central locking Consisting of a lock plate with cylinder lock with 2 keys and locking bars, complete for storage shelves No. 946100 - 6120 for bay depth 36 units, complete for storage shelves No. 946122,946124 for bay depth 27 units. 94640S - available for the following standard usable heights: 600/700/750 / 900 /1050 /1225 /1350 /1525 mm. Note: If drawers/pul l-out shelves are fitted central locking is necessary to prevent more than one drawer being opened at a time. Central locking cannot be retrofitted at a later stage. When orderi ng, please supply a sketch of the desired arrangement of shelves. Maximum width 1900 mm. 946405 Central locking for standard heights (57.96) 1 946425 Central locking for special heights (131.45) Sliding doors of sheet steel The doors are reinforced on the inside and run on ball bearing guides in rails. Lockable by slide handle with a cylinder lock.The front fittings kit consists of 2 side stops, 2 guide rails, and 2 door leaves. The shelf bays behind the sliding doors can befitted with storage shelves, drawers, and pull-out shelves (exception: behind sliding doors No. 946520 (78 units wide) only storage shelves can be fitted, no drawers or pull-out shelves). Colour: Frame RAL 7035 light grey, doors RAL 5005 signal blue, powder-coated. He 1 ight including fram e mm Bay width 2x36 units (467.82) (57857) (624.11) s 946510 Sliding doors set (559.94) (681.03) (750.38) 946520 Bay width 1x78 units (453.33 (688.28) (728.64) dear height mm 900 1100 1400 Frame depth mm 70 Roller shutter of plastic slats Roller shutter of light grey plastic lamellae, lockable with a cylinder lock. The roller shutter operating housing Is located at the top, and the roller shutter is guided by the lateral guides as it is drawn down in front of the shelves. Colour: Casing I Ight g rey RAL 7035 powder-coated. Note: The roller sh utters are also available in intermediate heights. Prices on req uest. suitable for column frame height mm Bay width 36 units (898.38) (942.89) (986.36) nOllcf Sri liner Bay width 54 units (973.94) (1028.79) (1072.26) Overall height induding roller shutter housing mm 2300 2500 2800 Guide rails depth mm 50
