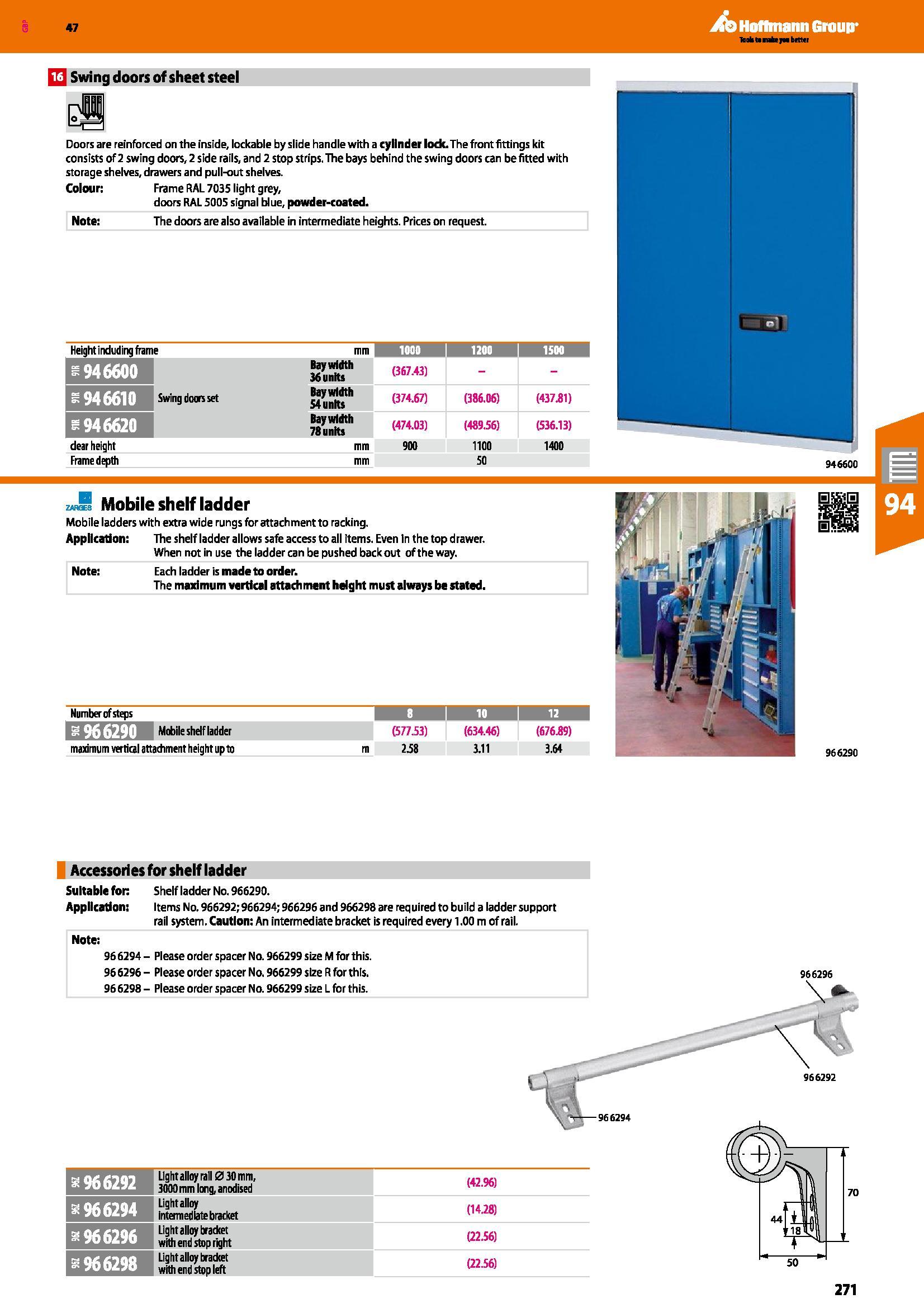

47 Ato Hoffmann Group KnkttinbrM brttti Swing doors of sheet steel Doors are reinforced on the inside, lockable by slide handle with a cylinder lode. The front fittings kit consists of 2 swing doors, 2 side rails, and 2 stop strips. The bays behind the swing doors can be fitted with storage shelves, drawers and pull-out shelves. Colour: Frame RAL 7035 light grey, doors RAL 5005 signal blue, powder-coated. Note: The doors are also available in intermediate heights. Prices on request. Height induding frame mm iooo 1200 1500 Bay width 36 units (367.43) - - s 946610 Swing doors set Bay width 54 units (374.67) (386.06) (437.81) 946620 Bay width 78 units (474.03) (489.56) (536.13) dear height mm 900 1100 1400 Frame depth mm SO Mobile shelf ladder Mobile ladders with extra wide rungs for attachment to racking. Application: The shelf ladder allows safe access to all items. Even In the top d rawer. When not in use the ladder can be pushed back out of the way. Note: Each ladder is made to order. The maximum vertical attachment height must always be stated. Number of steps ilKHH 10 1 12 1 I £966290 KfiMliEMW (577.53) (634.46) (676.89) maximum vertical attachment height up to m 2.58 3.11 3.64 966290 Accessories for shelf ladder Suitable for: Shelf ladder No. 966290. Application: Items No. 966292; 966294; 966296 and 966298 are required to build a ladder support rail system. Caution: An intermediate bracket is required every 1.00 m of rail. Note: 96 6294 - Please order spacer No. 966299 size M for this. 96 6296 - Please order spacer No. 966299 size R for this. 96 6298 - Please order spacer No. 966299 size L for this. 966296 a 966292 Lightalloy rail 0 30 mm, 3000mm long, anodised (42.96) a 96 6294 Light alliqr intermediate bracket (14.28) a 96 6296 Lightalloy bracket with end stop right (22.56) 96 6298 Light alloy bradcet with end stop left (22.56) 271
