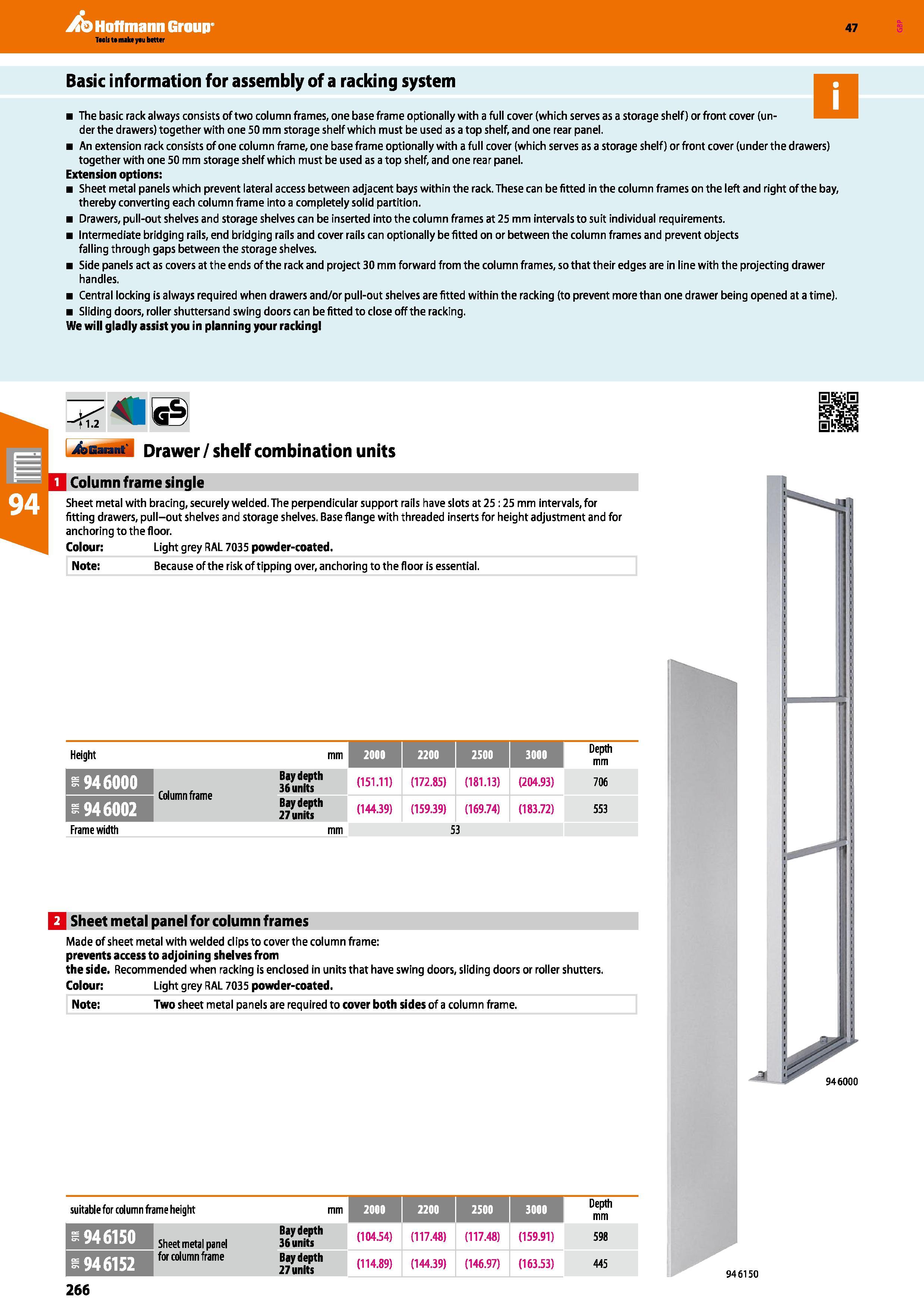

Hoffmann Group 47 Basic information for assembly of a racking system The basic rack always consists of two column frames, one base frame optionally with a full cover (which serves as a storage shelf) or front cover (under the drawers) together with one 50 mm storage shelf which must be used as a top shelf, and one rear panel. An extension rack consists of one column frame, one base frame optionally with a full cover (which serves as a storage shelf) or front cover (under the drawers) together with one 50 mm storage shelf which must be used as a top shelf, and one rear panel. Extension options: Sheet metal panels which prevent lateral access between adjacent bays within the rack. These can be fitted in the column frames on the left and right of the bay, thereby converting each column frame into a completely solid partition. Drawers, pull-out shelves and storage shelves can be inserted into the column frames at 25 mm intervals to suit individual requirements. Intermediate bridging rails, end bridging rails and cover rails can optionally be fitted on or between the column frames and prevent objects falling through gaps between the storage shelves. Side panels act as covers at the ends of the rack and project 30 mm forward from the column frames, so that their edges are in line with the projecting drawer handles. Central locking is always required when drawers and/or pull-out shelves are fitted within the racking (to prevent more than one drawer being opened at a time). Sliding doors, roller shuttersand swing doors can be fitted to close off the racking. We will gladly assist you in planning your racking Auarant Drawer / shelf combination units -T1.2 Column frame single Sheet metal with bracing, securely welded. The perpendicular support rails have slots at 25:25 mm intervals, for fitting drawers, pull-out shelves and storage shelves. Base flange with threaded inserts for height adjustment and for anchoring to the floor. Colour: Light grey RAL 7035 powder-coated. Note: Because of the risk of tipping over, anchoring to the floor is essential. Height mm 2000 2200 2500 Depth mm Baydepth 36 units (151.11) (172.85) (181.13) (204.93) 706 “946002 Baydepth 27 units (144.39) (159.39) (169.74) (183.72) 553 Frame width mm 53 Q Sheet metal panel for column frames Made of sheet metal with welded clips to cover the column frame: prevents access to adjoining shelves from the side. Recommended when racking is enclosed in units that have swing doors, sliding doors or roller shutters. Colour: Light grey RAL 7035 powder-coated. Note: Two sheet metal panels are required to cover both sides of a column frame. suitable for column frame height mm 2000 2200 2500 Depth mm - 946150 Sheet metal panel Baydepth 36 units (104.54) (117.48) (117.48) (159.91) 598 for column frame Baydepth 27 units (114.89) (144.39) (146.97) (163.53) 445 266 946150
