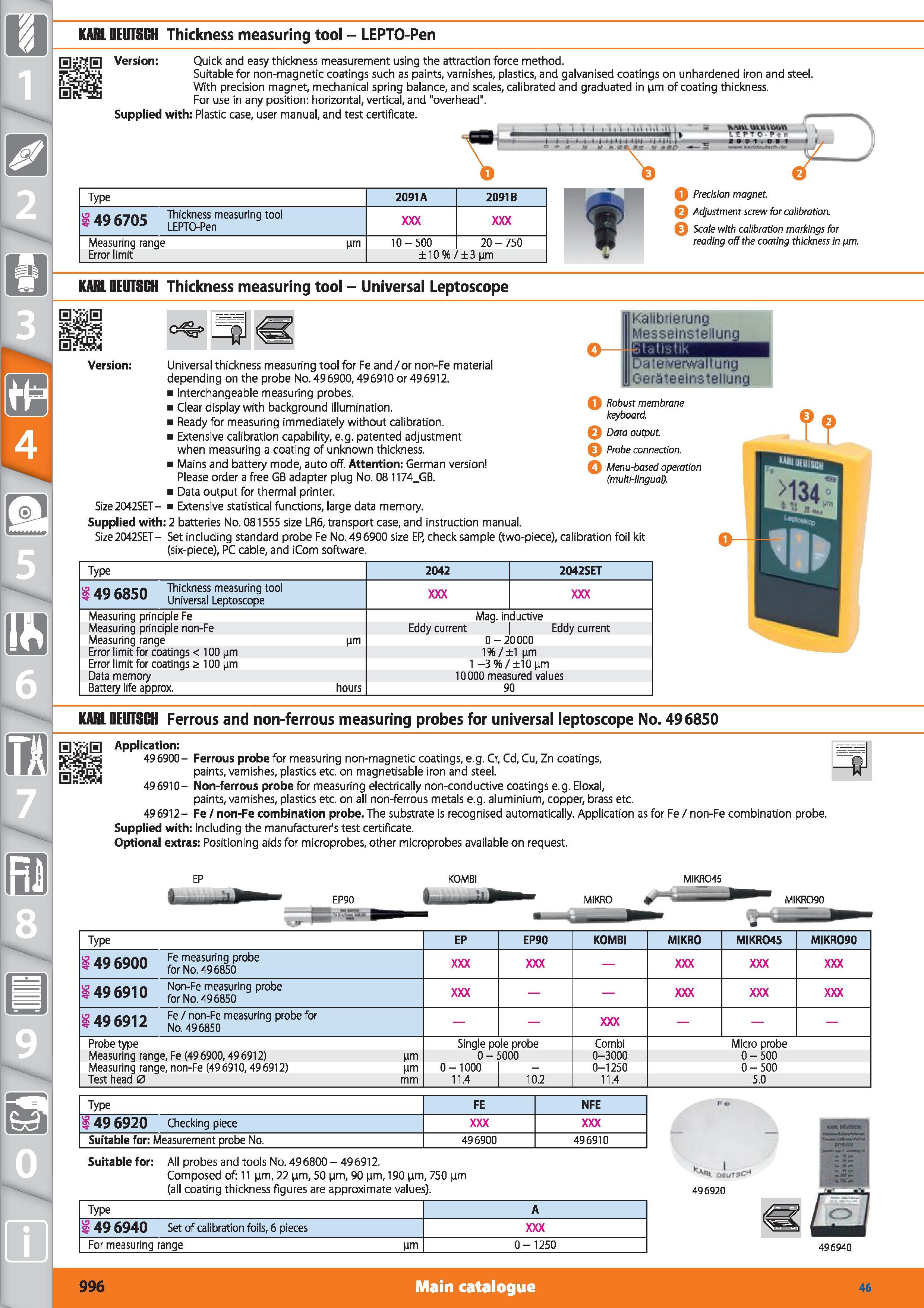

1 KARIDEUTSCH Thickness measuring tool - LEPTO-Pen Version Quick and easy thickness measurement using the attraction force method. Suitable for non-magnetic coatings such as paints, varnishes, plastics, and galvanised coatings on unhardened iron and steel. With precision magnet, mechanical spring balance, and scales, calibrated and graduated in nm of coating thickness. For use in any position horizontal, vertical, and "overhead". Supplied with Plastic case, user manual, and test certificate. J _1 1 1 1 I .1.1 .1.1.1 Type 1 ao c7nc Thickness measuring tool 49 6705 LEpjo-Pen Measuring range Error limit nm 2091A 10-500 20- 750 ±10 / ±3 nm Q Precision magnet Q Adjustment screw for calibration. 5 Scale with calibration markings for reading off the coating thickness in pm. KARI DEUTSCH Thickness measuring tool - Universal Leptoscope m Version Kalibrierung Messeinslellung jtatistik Universal thickness measuring tool for Fe and/or non-Fe material depending on the probe No.496900,496910 or 496912. Interchangeable measuring probes. Clear display with background illumination. Ready for measuring immediately without calibration. Extensive calibration capability, e.g. patented adjustment when measuring a coating of unknown thickness. Mains and battery mode, auto off. Attention German version Please order a free GB adapter plug No. 081174_GB. Data output for thermal printer. Size2042SET- Extensive statistical functions, large data memory. Supplied with 2 batteries No. 081555 size LR6, transport case, and instruction manual. Size2042SET- Set including standard probe Fe No. 496900 size EP, check sample (two-piece), calibration foil kit (six-piece), PC cable, and iCom software. Datelverwaltung Gerateeinstellung Q Robust membrane keyboard. Data output Probe connection. C Menu-based operation (multi-lingual). m Type 1 An cocn Thickness measuring tool 49 6850 Universal Leptoscope Measuring principle Fe Measuring principle non-Fe Measuring range Error limit for coatings < 100 nm Error limit for coatings 2 100 nm Data memory Battery life approx. nm hours 2042 2042SET Mag. inductive Eddy current Eddy current 0-20000 1%/±1 nm 1 -3 / ±10 nm 10000 measured values 90 KARI DEUTSCH Ferrous and non-ferrous measuring probes for universal leptoscope No. 496850 Application 496900- Ferrous probe for measuring non-magnetic coatings, e.g. Cr, Cd, Cu, Zn coatings, paints, varnishes, plastics etc. on magnetisable iron and steel. 496910- Non-ferrous probe for measuring electrically non-conductive coatings e.g. Eloxal, paints, varnishes, plastics etc. on all non-ferrous metals e.g. aluminium, copper, brass etc. 496912- Fe/ non-Fe combination probe.The substrate is recognised automatically. Application as for Fe/non-Fe combination probe. Supplied with Including the manufacturer's test certificate. Optional extras Positioning aids for microprobes, other microprobes available on request. KOMBI MIKR045 Type EP EP90 KOMBI MIKRO MIKR045 MIKR090 S 49 6900 Fe measuring probe for No. 496850 s 49 6910 Non-Fe measuring probe for No. 496850 s 49 6912 Fe / non-Fe measuring probe for No. 496850 Probe type Single pole probe Combi Micro probe Measuring range, Fe (496900,496912) nm 0- 5000 0-3000 0-500 Measuring range, non-Fe (496910,496912) nm 0-1000 0-1250 0-500 Test head 0 mm 11.4 10.2 11.4 5.0 Type FE NFE 49 6920 Checking piece Suitable for Measurement probe No. 496900 496910 Suitable for All probes and tools No. 496800 - 496912. Composed of 11 nm, 22 m, 50 nm, 90 nm, 190 im, 750 nm (all coating thickness figures are approximate values). 11 “n wu-tjc 496920 Type A ij 49 6940 Set of calibration foils, 6 pieces For measuring range nm 0-1250 496940 996 Main catalogue Hoffmann Group 46
