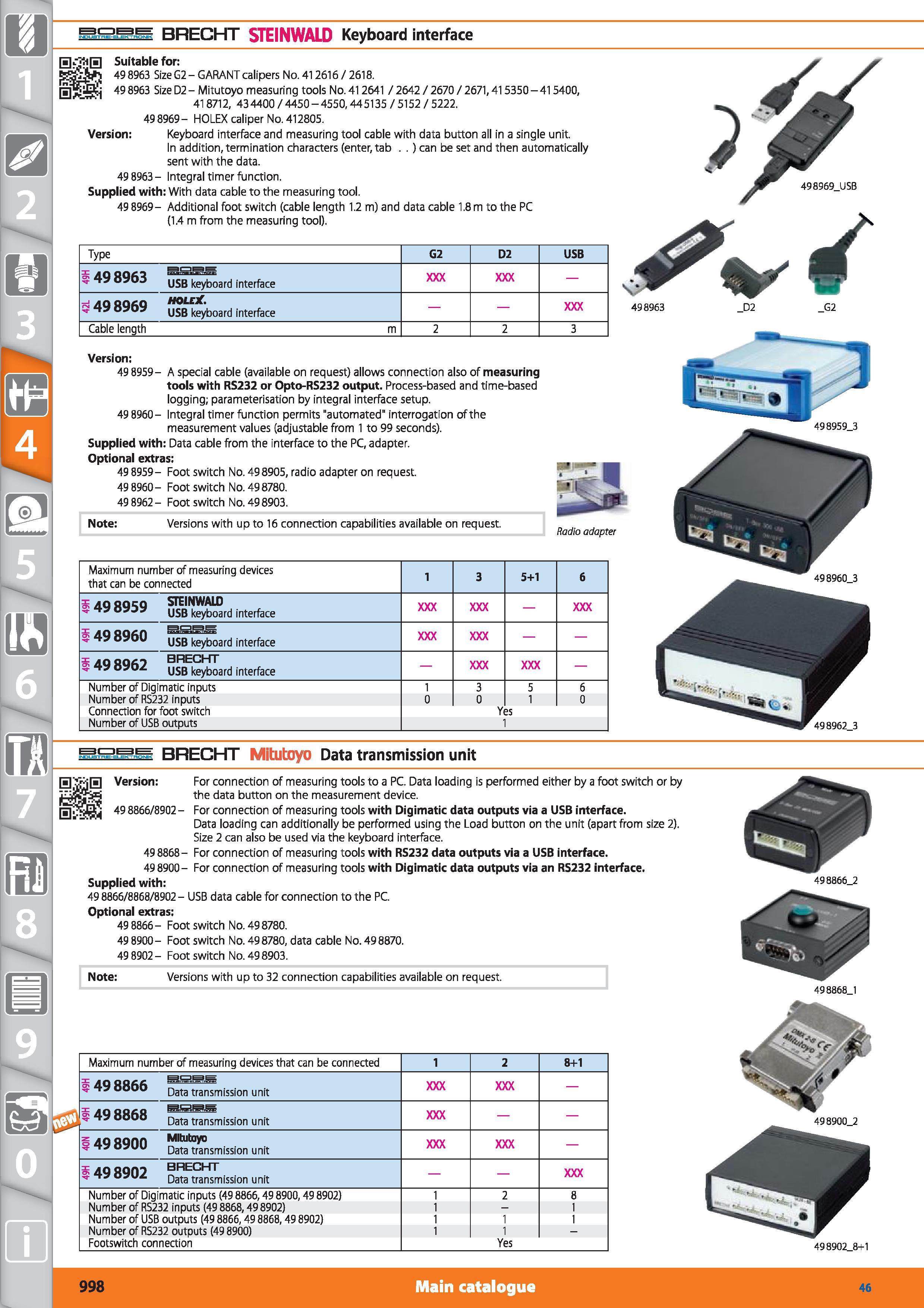

1 BRECHT STEINWALD Keyboard interface QiTjliQ Suitable for 498963 Size G2-GARANT calipers No. 412616/2618. 49 8963 Size D2 - Mitutoyo measuring tools No. 412641 / 2642 / 2670 / 2671,415350 - 415400, 418712, 434400 / 4450 - 4550,445135 / 5152 / 5222. 498969- HOLEX caliper No. 412805. Version Keyboard interface and measuring tool cable with data button all in a single unit. In addition, termination characters (enter, tab ) can be set and then automatically sent with the data. 49 8963- Integral timer function. Supplied with With data cable to the measuring tool. 49 8969- Additional foot switch (cable length 1.2 m) and data cable 1.8 m to the PC (1.4 m from the measuring tool). Type G2 D2 USB 1498963 USB keyboard interface s 49 8969 HOLEX USB keyboard interface Cable length m 2 2 3 Version 49 8959- A special cable (available on request) allows connection also of measuring tools with RS232 or Opto-RS232 output. Process-based and time-based logging; parameterisation by integral interface setup. 49 8960- Integral timer function permits "automated" interrogation of the measurement values (adjustable from 1 to 99 seconds). Supplied with Data cable from the interface to the PC, adapter. Optional extras 49 8959- Foot switch No. 498905, radio adapter on request. 49 8960- Foot switch No. 498780. 49 8962- Foot switch No. 498903. Note Versions with up to 16 connection capabilities available on request. (Ul to Maximum number of measuring devices that can be connected 1 3 5+1 6 498959 STEINWALD USB keyboard interface 3 49 8960 usB keyboard interface a jq QQC.-I BRECH 1 , V OVOZ USB keyboard interface Number of Digimatic inputs 1 3 5 6 Number of RS232 inputs 0 0 1 0 Connection for foot switch Yes Number of USB outputs 1 498962 3 BRECHT Mitutoyo Data transmission unit Version 498866/8902- 498868- For connection of measuring tools to a PC. Data loading is performed either by a foot switch or by the data button on the measurement device. For connection of measuring tools with Digimatic data outputs via a USB interface. Data loading can additionally be performed using the Load button on the unit (apart from size 2). Size 2 can also be used via the keyboard interface. For connection of measuring tools with RS232 data outputs via a USB interface. 498900- For connection of measuring tools with Digimatic data outputs via an RS232 interface. Supplied with 49 8866/8868/8902 - USB data cable for connection to the PC. Optional extras 49 8866- Foot switch No. 498780. 49 8900- Foot switch No. 498780, data cable No. 498870. 49 8902- Foot switch No. 498903. Note Versions with up to 32 connection capabilities available on request. Maximum number of measuring devices that can be connected 1 2 8+1 1498866 Srtrafmissionunit I JQ nn Q Data transmission unit 149 8900 MltutaY° Data transmission unit 49 8902 brecht Data transmission unit Number of Digimatic inputs (49 8866,49 8900,49 8902) 1 2 8 Number of RS232 inputs (49 8868,498902) 1 - 1 Number of USB outputs (49 8866,49 8868,49 8902) 1 1 1 Number of RS232 outputs (49 8900) 1 1 - Footswitch connection Yes 498902_8+1 998 Main catalogue Hoffmann Group 46
