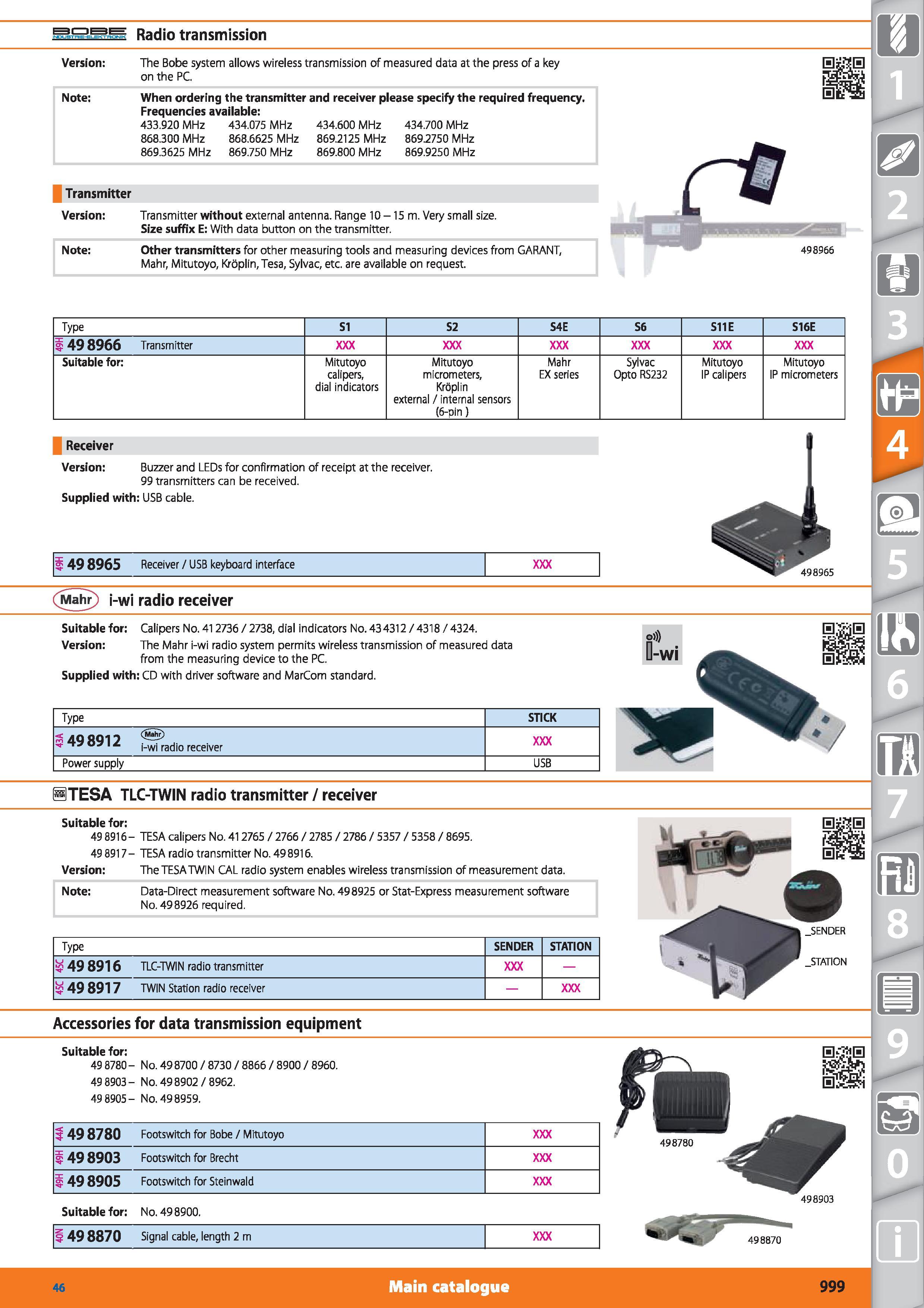

Radio transmission Version The Bobe system allows wireless transmission of measured data at the press of a key on the PC. Note When ordering the transmitter and receiver please specify the required frequency. Frequencies available 433.920 MHz 434.075 MHz 434.600 MHz 434.700 MHz 868.300 MHz 868.6625 MHz 869.2125 MHz 869.2750 MHz 869.3625 MHz 869.750 MHz 869.800 MHz 869.9250 MHz Transmitter Version Transmitter without external antenna. Range 10 -15 m. Very small size. Size suffix E With data button on the transmitter. Note Other transmitters for other measuring tools and measuring devices from GARANT, Mahr, Mitutoyo, Kroplin,Tesa, Sylvac, etc. are available on request. 498966 Type SI S2 S4E S6 she S16E 3 49 8966 Transmitter Suitable for Mitutoyo calipers, dial indicators Mitutoyo micrometers, Kroplin external / internal sensors (6-pin) Mahr EX series Sylvac Opto RS232 Mitutoyo IP calipers Mitutoyo IP micrometers Receiver Version Buzzer and LEDs for confirmation of receipt at the receiver. 99 transmitters can be received. Supplied with USB cable. 498965 Receiver / USB keyboard interface Mahr i-wi radio receiver Suitable for Calipers No. 412736 / 2738, dial indicators No. 434312/4318/4324. Version The Mahr i-wi radio system permits wireless transmission of measured data from the measuring device to the PC. Supplied with CD with driver software and MarCom standard. Type STICK 49 8912 < ) i i-wi radio receiver Power supply USB STESA TLC-TWIN radio transmitter / receiver Suitable for 49 8916 - TESA calipers No. 412765 / 2766 / 2785 / 2786 / 5357 / 5358 / 8695. 49 8917- TESA radio transmitter No. 498916. Version The TESA TWIN CAL radio system enables wireless transmission of measurement data. Note Data-Direct measurement software No. 498925 or Stat-Express measurement software No. 498926 required. Type SENDER STATION Si 49 8916 TLC-TWIN radio transmitter 49 8917 TWIN Station radio receiver Accessories for data transmission equipment Suitable for 49 8780 - No. 49 8700 / 8730 / 8866 / 8900 / 8960. 49 8903- No. 498902 / 8962. 49 8905- No. 498959. 3 49 8780 Footswitch for Bobe / Mitutoyo 49 8903 Footswitch for Brecht 5 49 8905 Footswitch for Steinwald Suitable for No. 498900. 5 49 8870 Signal cable, length 2 m 498903 498870 m 46 Main catalogue
