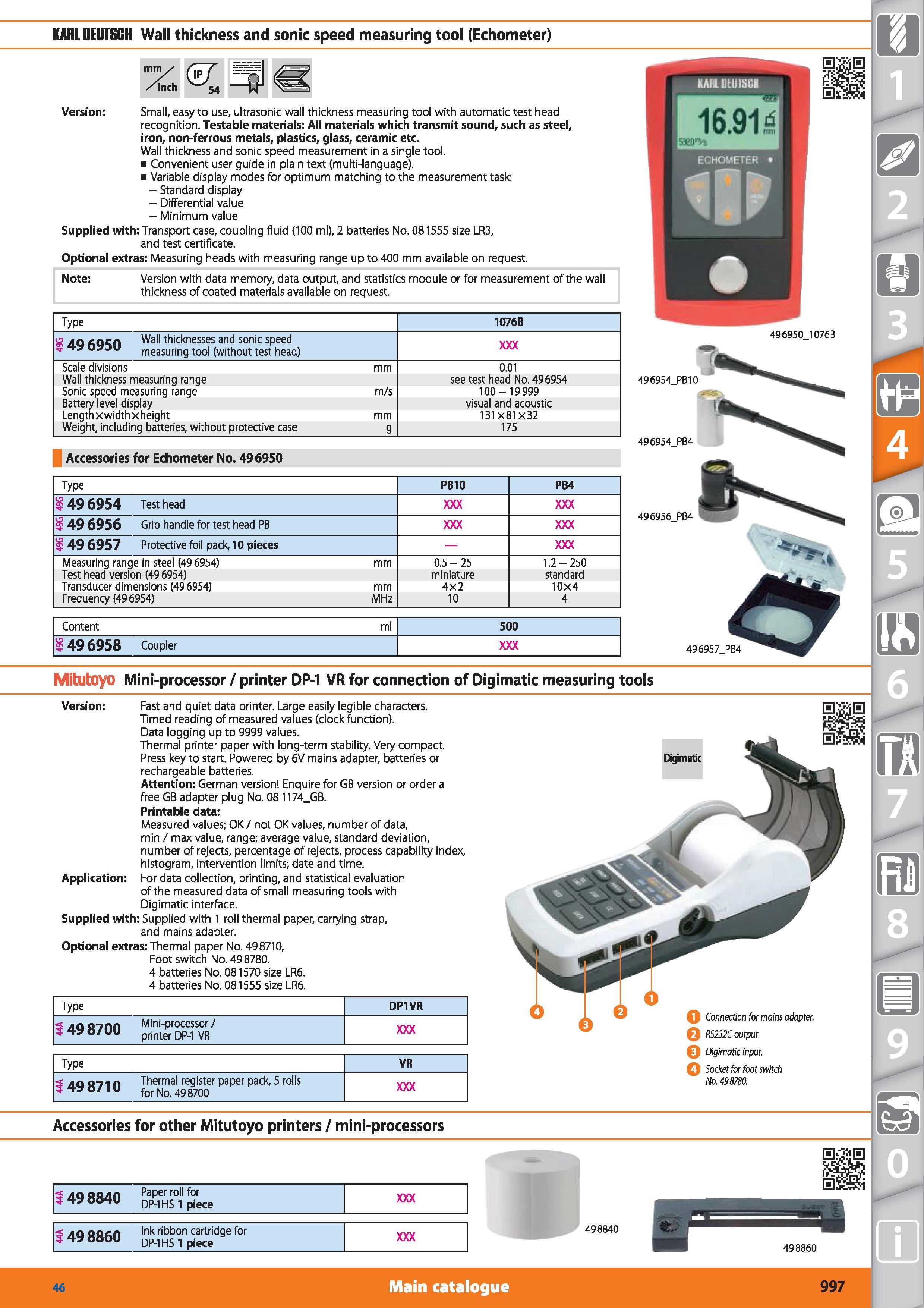

KARL DEIfTSGH Wall thickness and sonic speed measuring tool (Echometer) Inch ( T 54 Version Small, easy to use, ultrasonic wall thickness measuring tool with automatic test head recognition. Testable materials All materials which transmit sound, such as steel, iron, non-ferrous metals, plastics, glass, ceramic etc. Wall thickness and sonic speed measurement in a single tool. Convenient user guide in plain text (multi-language). Variable display modes for optimum matching to the measurement task - Standard display - Differential value - Minimum value Supplied with Transport case, coupling fluid (100 ml), 2 batteries No. 081555 size LR3, and test certificate. Optional extras Measuring heads with measuring range up to 400 mm available on request. Note Version with data memory, data output, and statistics module or for measurement of the wall thickness of coated materials available on request. Type 1076B S ,n cgcn Wall thicknesses and sonic speed , V9 o 3U measuring tool (without test head) Scale divisions mm 0.01 Wall thickness measuring range see test head No. 496954 Sonic speed measuring range m/s 100-19999 Battery level display Length x width x height visual and acoustic mm 131x81x32 Weight, including batteries, without protective case g 175 Accessories for Echometer No. 496950 Type PB10 PB4 i 49 6954 Test head s 49 6956 Grip handle for test head PB 9 49 6957 Protective foil pack, 10 pieces Measuring range in steel (496954) mm 0.5 - 25 1.2-250 Test head version (49 6954) miniature standard Transducer dimensions (496954) mm 4x2 10X4 Frequency (496954) MHz 10 4 Content ml 500 49 6958 Coupler Mitutoyo Mini-processor / printer DP-1 VR for connection of Digimatic measuring tools Version Fast and quiet data printer. Large easily legible characters. Timed reading of measured values (clock function). Data logging up to 9999 values. Thermal printer paper with long-term stability. Very compact. Press key to start. Powered by 6V mains adapter, batteries or rechargeable batteries. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB. Printable data Measured values; OK / not OK values, number of data, min / max value, range; average value, standard deviation, number of rejects, percentage of rejects, process capability index, histogram, intervention limits; date and time. Application For data collection, printing, and statistical evaluation of the measured data of small measuring tools with Digimatic interface. Supplied with Supplied with 1 roll thermal paper, carrying strap, and mains adapter. Optional extras Thermal paper No. 498710, Foot switch No. 498780. 4 batteries No. 081570 size LR6. 4 batteries No. 081555 size LR6. Type DP1VR 5 4Q R700 Mini-processor / 5 4V B/UU printer DP-1 VR Type VR s /in Q7i n Thermal register paper pack, 5 rolls 3 IU for No. 498700 Q Connection for mains adapter. Q RS232C output. Q Digimatic input. Q Socket for foot switch No. 498780. Accessories for other Mitutoyo printers / mini-processors 1498840 Paper roll for DP-1 HS 1 piece s jia oocn Ink ribbon cartridge for 5 498860 dp_ihs 1 piece i 498840 Main catalogue Hoffmann Group 46 997
